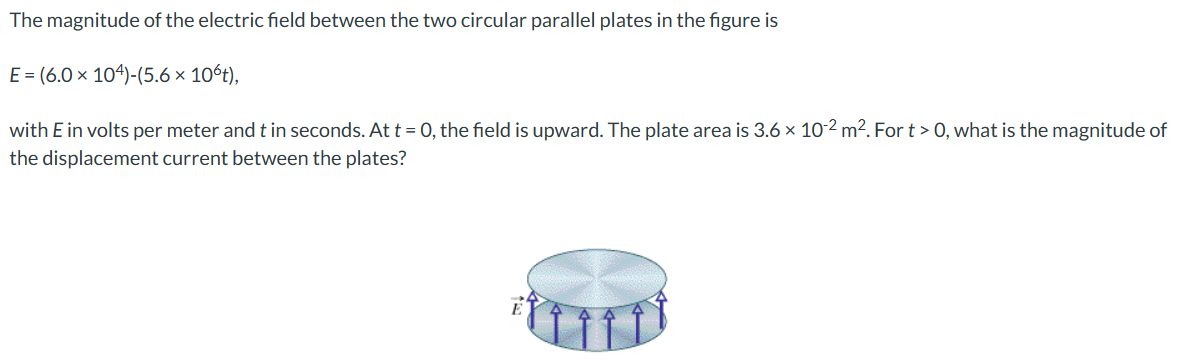

The magnitude of the electric field between the two circular parallel plates in the figure is E = (6.0×104) − (5.6×106 t) with E in volts per meter and t in seconds. At t = 0, the field is upward. The plate area is 3.6×10−2 m2. For t > 0, what is the magnitude of the displacement current between the plates?

The magnitude of the electric field between the two circular parallel plates in the figure is E = (6.0×104) − (5.6×106 t) with E in volts per meter and t in seconds. At t = 0, the field is upward. The plate area is 3.6×10−2 m2. For t > 0, what is the magnitude of the displacement current between the plates?

Image text
The magnitude of the electric field between the two circular parallel plates in the figure is
E = ( 6.0 × 10 4 ) − ( 5.6 × 10 6 t )
with E in volts per meter and t in seconds. At t = 0 , the field is upward. The plate area is 3.6 × 10 − 2 m 2 . For t > 0 , what is the magnitude of the displacement current between the plates?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

An electron is projected with an initial speed v0 = 1.70 × 10^6 m/s into the uniform field between the parallel plates in ( Figure 1). Assume that the field between the plates is uniform and directed vertically downward, and that the field outside the plates is zero. The electron enters the field at a point midway between the plates. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Electron in a uniform field. Figure 1 of 1 Part A If the electron just misses the upper plate as it emerges from the field, find the magnitude of the electric field. Express your answer in newtons per coulomb. Part B Suppose that in the figure the electron is replaced by a proton with the same initial speed v0. Would the proton hit one of the plates? yes no Part C If the proton would not hit one of the plates, what would be the magnitude of its vertical displacement as it exits the region between the plates? Express your answer in meters. Part D What would be the direction of proton’s displacement? displacement is upward displacement is downward

An electron is projected with an initial speed v0 = 1.70 × 10^6 m/s into the uniform field between the parallel plates in ( Figure 1). Assume that the field between the plates is uniform and directed vertically downward, and that the field outside the plates is zero. The electron enters the field at a point midway between the plates. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Electron in a uniform field. Figure 1 of 1 Part A If the electron just misses the upper plate as it emerges from the field, find the magnitude of the electric field. Express your answer in newtons per coulomb. Part B Suppose that in the figure the electron is replaced by a proton with the same initial speed v0. Would the proton hit one of the plates? yes no Part C If the proton would not hit one of the plates, what would be the magnitude of its vertical displacement as it exits the region between the plates? Express your answer in meters. Part D What would be the direction of proton’s displacement? displacement is upward displacement is downward

An electron is projected with an initial speed v0 = 1.70 × 10^6 m/s into the uniform field between the parallel plates in ( Figure 1). Assume that the field between the plates is uniform and directed vertically downward, and that the field outside the plates is zero. The electron enters the field at a point midway between the plates. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Electron in a uniform field. Figure 1 of 1 Part A If the electron just misses the upper plate as it emerges from the field, find the magnitude of the electric field. Express your answer in newtons per coulomb. Part B Suppose that in the figure the electron is replaced by a proton with the same initial speed v0. Would the proton hit one of the plates? yes no Part C If the proton would not hit one of the plates, what would be the magnitude of its vertical displacement as it exits the region between the plates? Express your answer in meters. Part D What would be the direction of proton’s displacement? displacement is upward displacement is downwardAn electron is projected with an initial speed v0 = 1.70 × 10^6 m/s into the uniform field between the parallel plates in ( Figure 1). Assume that the field between the plates is uniform and directed vertically downward, and that the field outside the plates is zero. The electron enters the field at a point midway between the plates. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Electron in a uniform field. Figure 1 of 1 Part A If the electron just misses the upper plate as it emerges from the field, find the magnitude of the electric field. Express your answer in newtons per coulomb. Part B Suppose that in the figure the electron is replaced by a proton with the same initial speed v0. Would the proton hit one of the plates? yes no Part C If the proton would not hit one of the plates, what would be the magnitude of its vertical displacement as it exits the region between the plates? Express your answer in meters. Part D What would be the direction of proton’s displacement? displacement is upward displacement is downwardAn electron is projected with an initial speed v0 = 1.70 × 10^6 m/s into the uniform field between the parallel plates in ( Figure 1). Assume that the field between the plates is uniform and directed vertically downward, and that the field outside the plates is zero. The electron enters the field at a point midway between the plates. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Electron in a uniform field. Figure 1 of 1 Part A If the electron just misses the upper plate as it emerges from the field, find the magnitude of the electric field. Express your answer in newtons per coulomb. Part B Suppose that in the figure the electron is replaced by a proton with the same initial speed v0. Would the proton hit one of the plates? yes no Part C If the proton would not hit one of the plates, what would be the magnitude of its vertical displacement as it exits the region between the plates? Express your answer in meters. Part D What would be the direction of proton’s displacement? displacement is upward displacement is downwardAn electron is projected with an initial speed v0 = 1.70 × 10^6 m/s into the uniform field between the parallel plates in ( Figure 1). Assume that the field between the plates is uniform and directed vertically downward, and that the field outside the plates is zero. The electron enters the field at a point midway between the plates. For related problem-solving tips and strategies, you may want to view a Video Tutor Solution of Electron in a uniform field. Figure 1 of 1 Part A If the electron just misses the upper plate as it emerges from the field, find the magnitude of the electric field. Express your answer in newtons per coulomb. Part B Suppose that in the figure the electron is replaced by a proton with the same initial speed v0. Would the proton hit one of the plates? yes no Part C If the proton would not hit one of the plates, what would be the magnitude of its vertical displacement as it exits the region between the plates? Express your answer in meters. Part D What would be the direction of proton’s displacement? displacement is upward displacement is downward
Solution
0 0

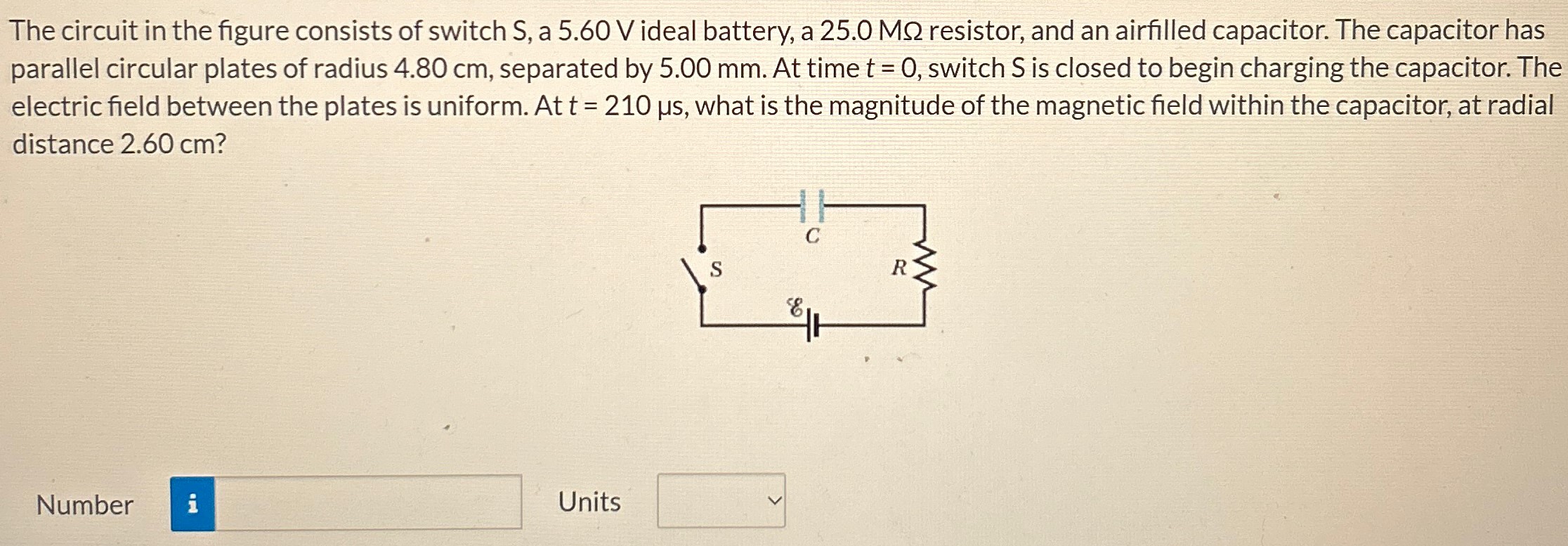

The circuit in the figure consists of switch S, a 5.60 V ideal battery, a 25.0 MΩ resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 4.80 cm, separated by 5.00 mm. At time t = 0, switch S is closed to begin charging the capacitor. The electric field between the plates is uniform. At t = 210 μs, what is the magnitude of the magnetic field within the capacitor, at radial distance 2.60 cm? Number Units
Solution
0 0

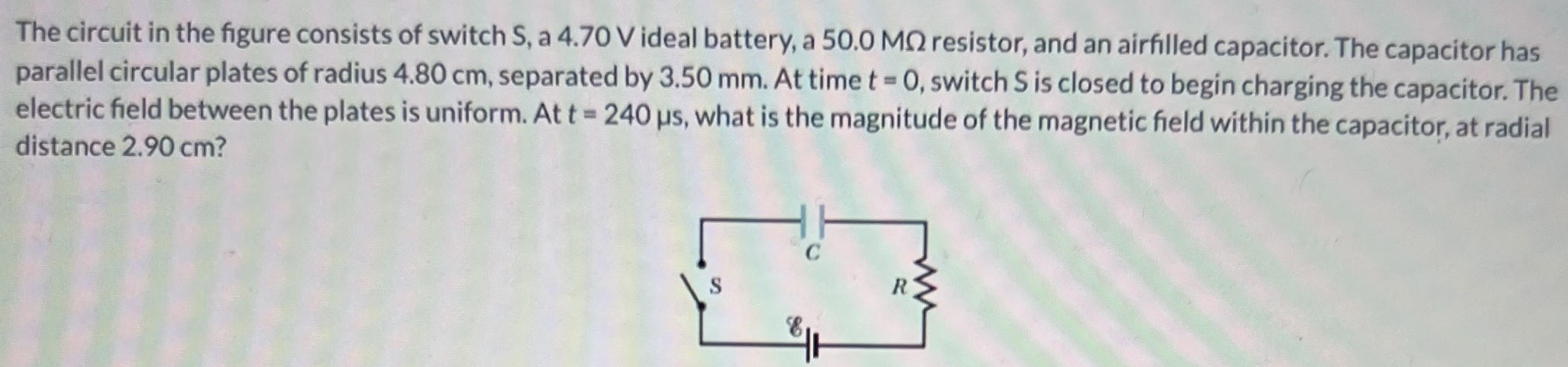

The circuit in the figure consists of switch S, a 4.70 V ideal battery, a 50.0 MΩ resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 4.80 cm, separated by 3.50 mm. At time t = 0, switch S is closed to begin charging the capacitor. The electric field between the plates is uniform. At t = 240 μs, what is the magnitude of the magnetic field within the capacitor, at radial distance 2.90 cm?
