The MOS transistors shown are conjugate with |VTH| = 1V. At the operation point we require that Vi = 0V and IDN = IDP = 1 mA. Find beta that satisfies these conditions.

The MOS transistors shown are conjugate with |VTH| = 1V. At the operation point we require that Vi = 0V and IDN = IDP = 1 mA. Find beta that satisfies these conditions.

Image text
The MOS transistors shown are conjugate with |VTH| = 1V. At the operation point we require that Vi = 0V and IDN = IDP = 1 mA. Find beta that satisfies these conditions.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Consider the MOSFET differential amplifier shown below, with IO = 2 mA, and RL = 10 kΩ, RSS = 100 kΩ, VDD = +8 V and VSS = −8 V. The NMOS transistors in the circuit are nominally identical, with kn = 2 mA/V2, VTnn = 1.0 V and ro = 100 kΩ. The PMOS transistors in the circuit are nominally identical, with kp = 2 mA/V2, |VTp| = 1.0 V and ro = 100 kΩ. a) First consider the DC bias point. Assuming that the current mirror requires at least IV (across Io source) in order to operate, what are the maximum and minimum common-mode DC input voltages (V1 = V2) over which the differential amplifier can operate with both transistors in saturation mode? b) Consider ac small signal operation for differential input (v1 = +Δv/2 and v2 = −Δv/2) and the indicated output (v0 across RL). Find the overall voltage gain (v0/Δv), including sign. c) Find the input resistance and output resistance corresponding to this mode (output resistance is looking to left from capacitor). d) Next, consider ac small signal operation for common-mode input (v1 = v2 = Δv) and the indicated vo. Find the overall voltage gain ((vo/Δv) corresponding to this mode. e) Find the common-mode rejection ratio (CMRR).
Solution
0 0

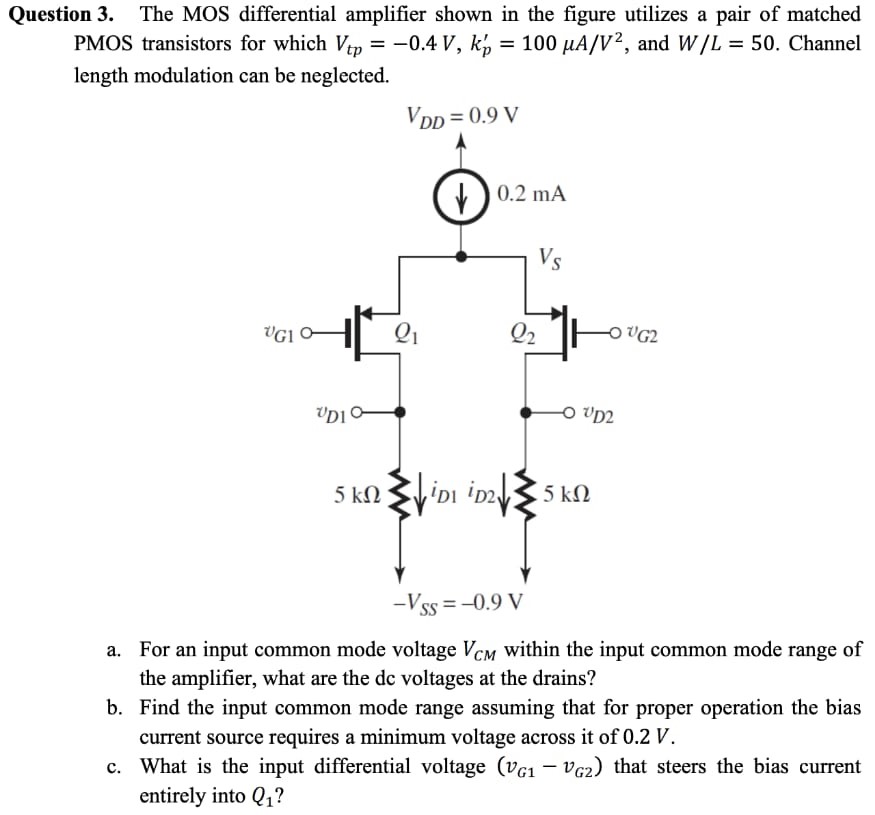

Question 3. The MOS differential amplifier shown in the figure utilizes a pair of matched PMOS transistors for which Vtp = −0.4 V, kp = 100 μA/V2, and W/L = 50. Channel length modulation can be neglected. a. For an input common mode voltage VCM within the input common mode range of the amplifier, what are the dc voltages at the drains? b. Find the input common mode range assuming that for proper operation the bias current source requires a minimum voltage across it of 0.2 V. c. What is the input differential voltage (vG1 − vG2) that steers the bias current entirely into Q1 ?
