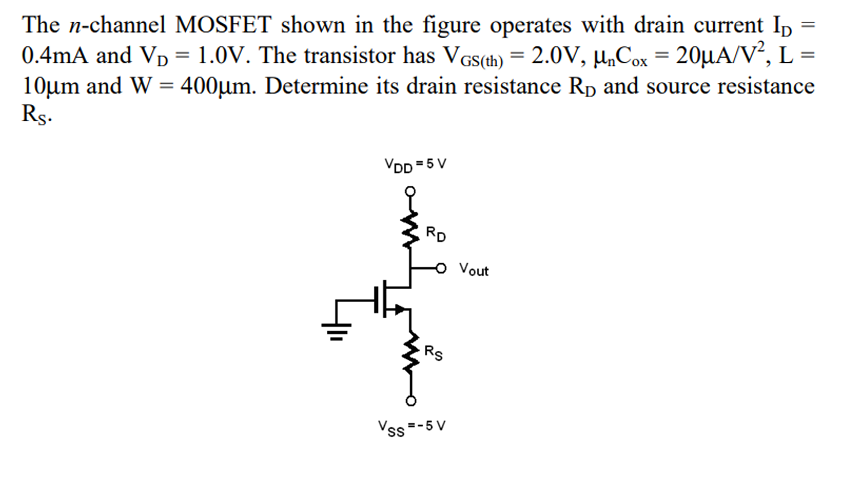

The n-channel MOSFET shown in the figure operates with drain current ID = 0.4 mA and VD = 1.0 V. The transistor has VGS(th) = 2.0 V, unCox = 20uA/V2, L = 10um and W = 400um. Determine its drain resistance RD and source resistance RS.
