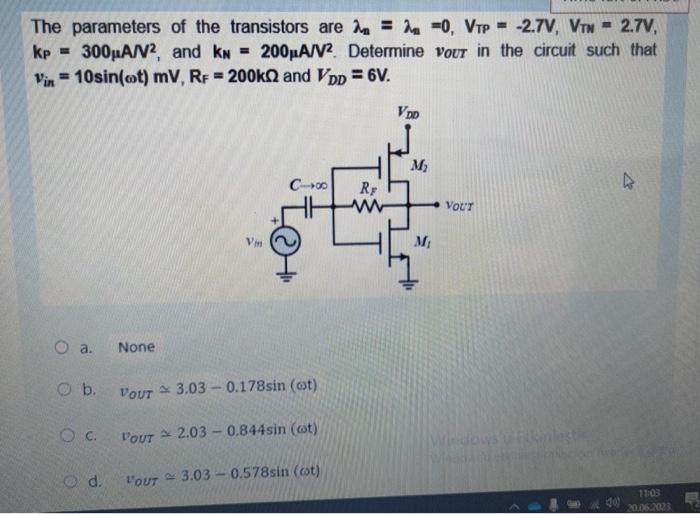

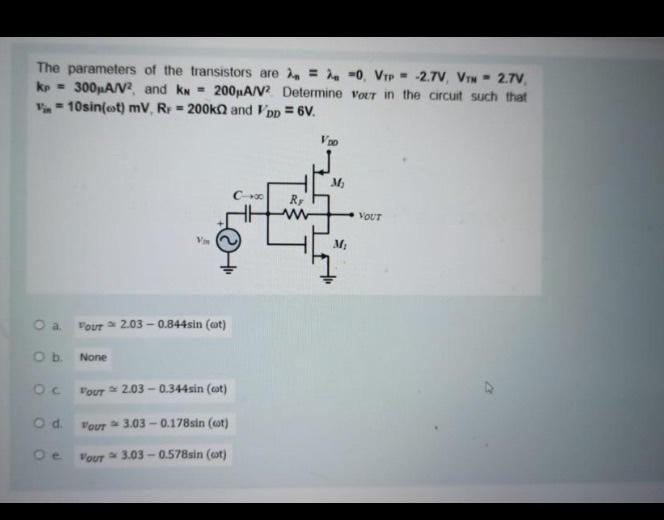

The parameters of the transistors are lambda_n = lamnda_n = 0, VTP =-2.7 V, VTN = 2.7 V, kP = 300 uAN^2, and kN = 200 uA/V^2. Determine Vout in the circuit such that vin =10sin?(wt) mV, RF = 200 kohm and VDD=6V.
Image text
The parameters of the transistors are lambda_n = lamnda_n = 0, VTP =-2.7 V, VTN = 2.7 V, kP = 300 uAN^2, and kN = 200 uA/V^2. Determine Vout in the circuit such that vin =10sin?(wt) mV, RF = 200 kohm and VDD=6V.
