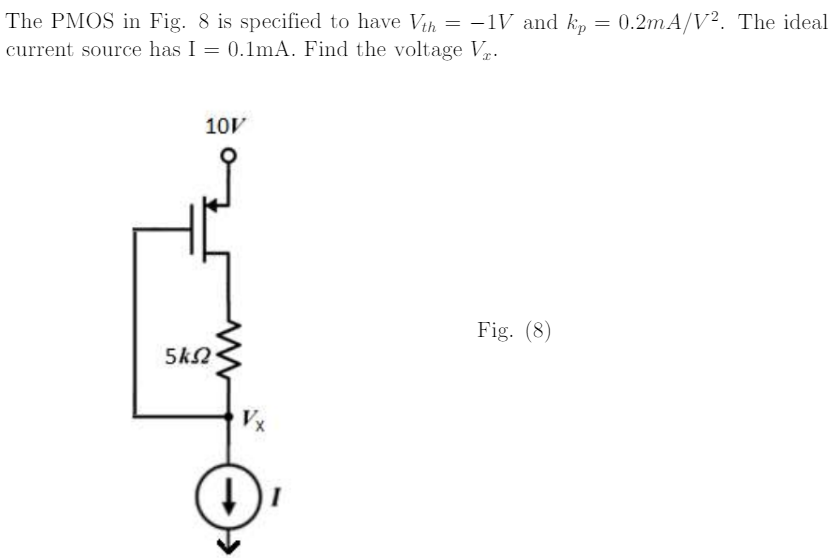

The PMOS in Fig. 8 is specified to have Vth = -1V and kp = 0.2mA/V 2. The ideal current source has I = 0.1mA. Find the voltage Vx.
