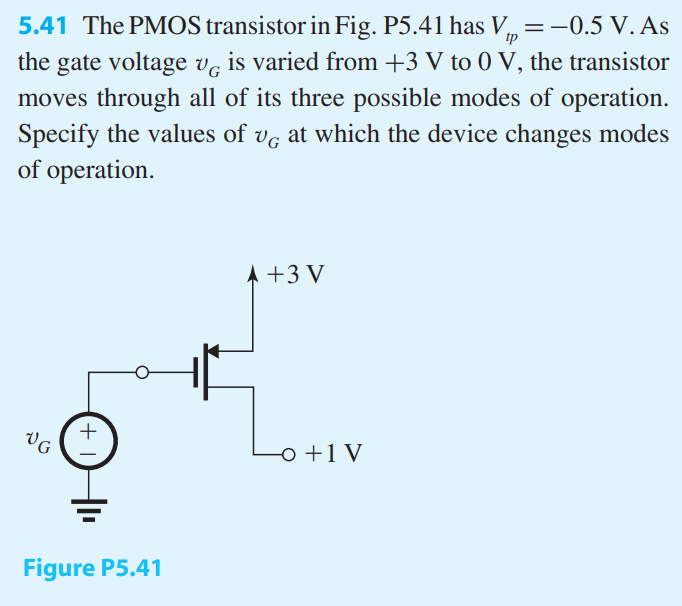

The PMOS transistor in Fig. P5.41 has Vtp = -0.5 V. As the gate voltage vG is varied from +3 V to 0 V, the transistor moves through all of its three possible modes of operation. Specify the values of vG at which the device changes modes of operation.
