The RC high-pass filter shown in Figure P33.53 has a resistance R = 0.500 Ω and a capacitance C = 613 μF. What is the ratio of the amplitude of the output voltage to that of the input voltage for this filter for a source frequency of 600 Hz? Figure P33.53 Problems 53 and 54.

The RC high-pass filter shown in Figure P33.53 has a resistance R = 0.500 Ω and a capacitance C = 613 μF. What is the ratio of the amplitude of the output voltage to that of the input voltage for this filter for a source frequency of 600 Hz? Figure P33.53 Problems 53 and 54.

Image text
M The R C high-pass filter shown in Figure P33.53 has a resistance R = 0.500 Ω and a capacitance C = 613 μ F . What is the ratio of the amplitude of the output voltage to that of the input voltage for this filter for a source frequency of 600 Hz ?

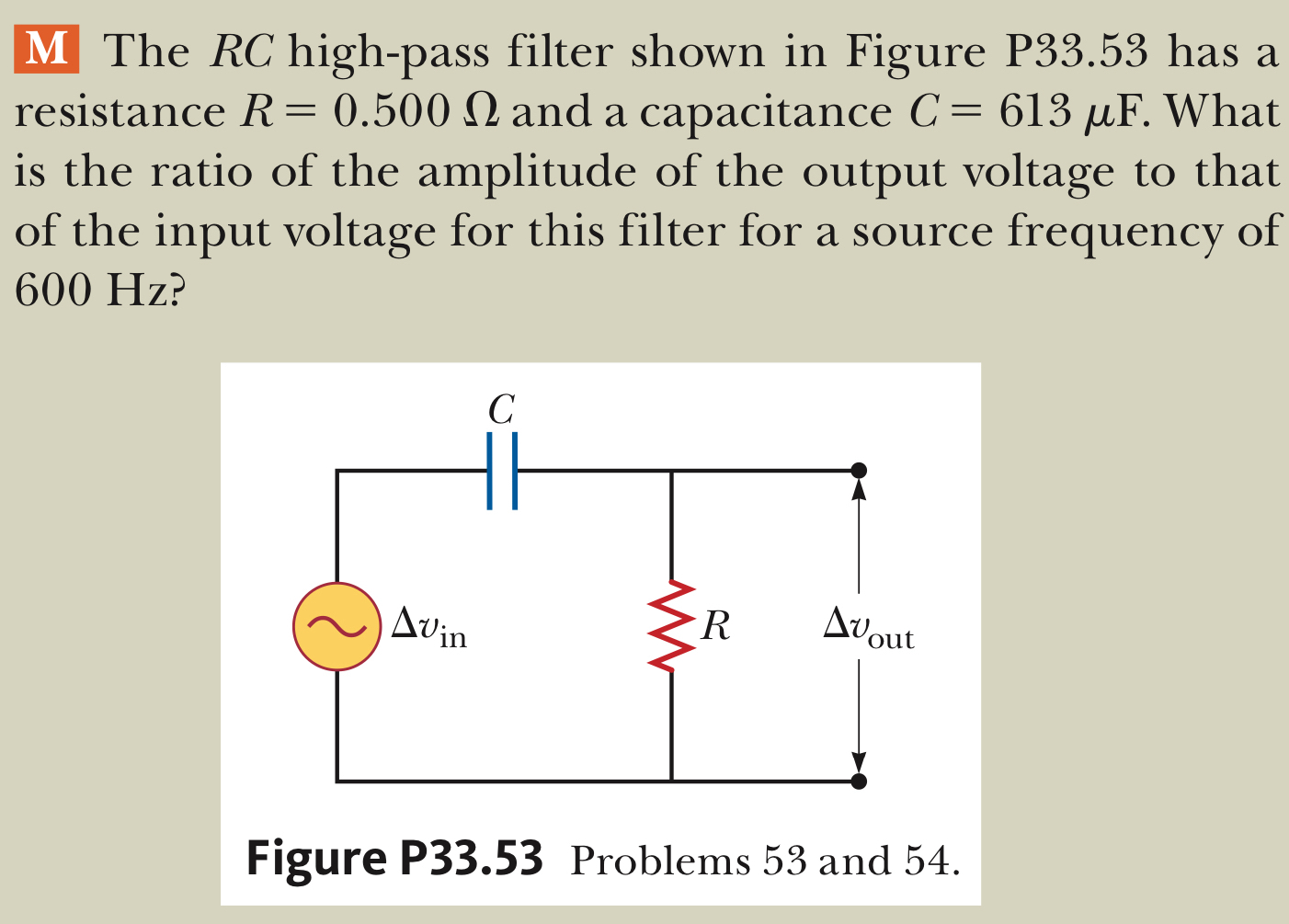

Figure P33.53 Problems 53 and 54.
