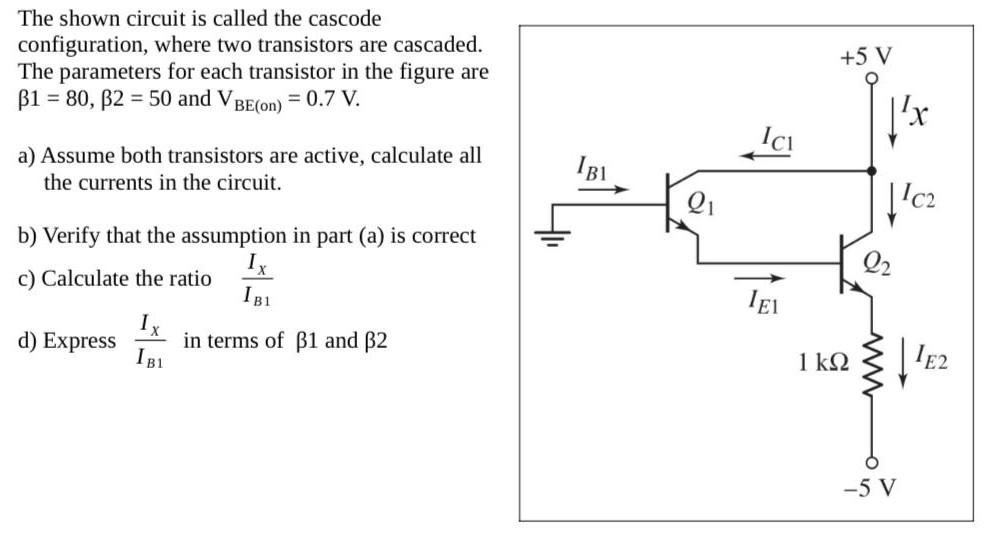

The shown circuit is called the cascode configuration, where two transistors are cascaded. The parameters for each transistor in the figure are β1 = 80, β2 = 50 and VBE(on) = 0.7 V. a) Assume both transistors are active, calculate all the currents in the circuit. b) Verify that the assumption in part (a) is correct c) Calculate the ratio Ix/IB1 d) Express Ix/IB1 in in terms of β1 and β2.
