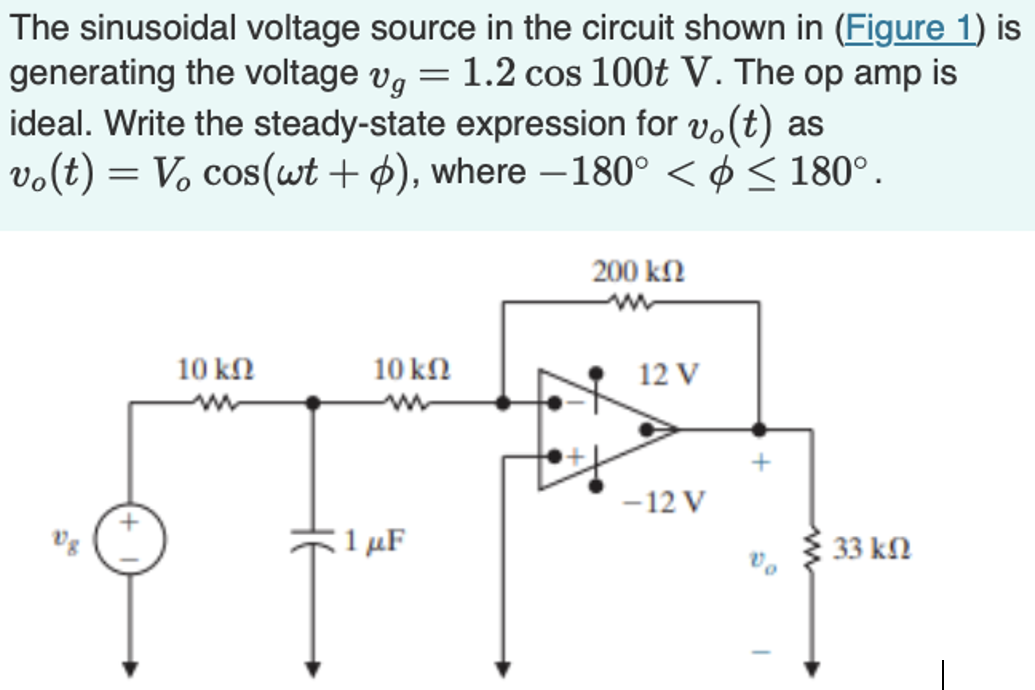

The sinusoidal voltage source in the circuit shown in (Figure 1) is generating the voltage vg = 1.2 cos⁡100 tV. The op amp is ideal. Write the steady-state expression for vo(t) as vo(t) = Vocos⁡(ωt+ϕ), where −180∘ < ϕ ≤ 180∘.

The sinusoidal voltage source in the circuit shown in (Figure 1) is generating the voltage vg = 1.2 cos⁡100 tV. The op amp is ideal. Write the steady-state expression for vo(t) as vo(t) = Vocos⁡(ωt+ϕ), where −180∘ < ϕ ≤ 180∘.

Image text
The sinusoidal voltage source in the circuit shown in (Figure 1) is generating the voltage v g = 1.2 cos ⁡ 100 t V . The op amp is ideal. Write the steady-state expression for v o ( t ) as v o ( t ) = V o cos ⁡ ( ω t + ϕ ) , where − 180 ∘ < ϕ ≤ 180 ∘ .
