The transistor parameters are VTN = −0.7 V, Kn = 25 mA/V2 and λ = 0. a

Question

Notify Me Bookmark

The transistor parameters are VTN = −0.7 V, Kn = 25 mA/V2 and λ = 0. a) Find IDQ and VDSQ and determine the small-signal voltage gain. b) Draw the load line sketch. Calculate the transition point VDS (sat) on the AC load line. c) Calculate the maximum undistorted output swing Δvo(max).

The transistor parameters are VTN = −0.7 V, Kn = 25 mA/V2 and λ = 0. a) Find IDQ and VDSQ and determine the small-signal voltage gain. b) Draw the load line sketch. Calculate the transition point VDS (sat) on the AC load line. c) Calculate the maximum undistorted output swing Δvo(max).

Image text

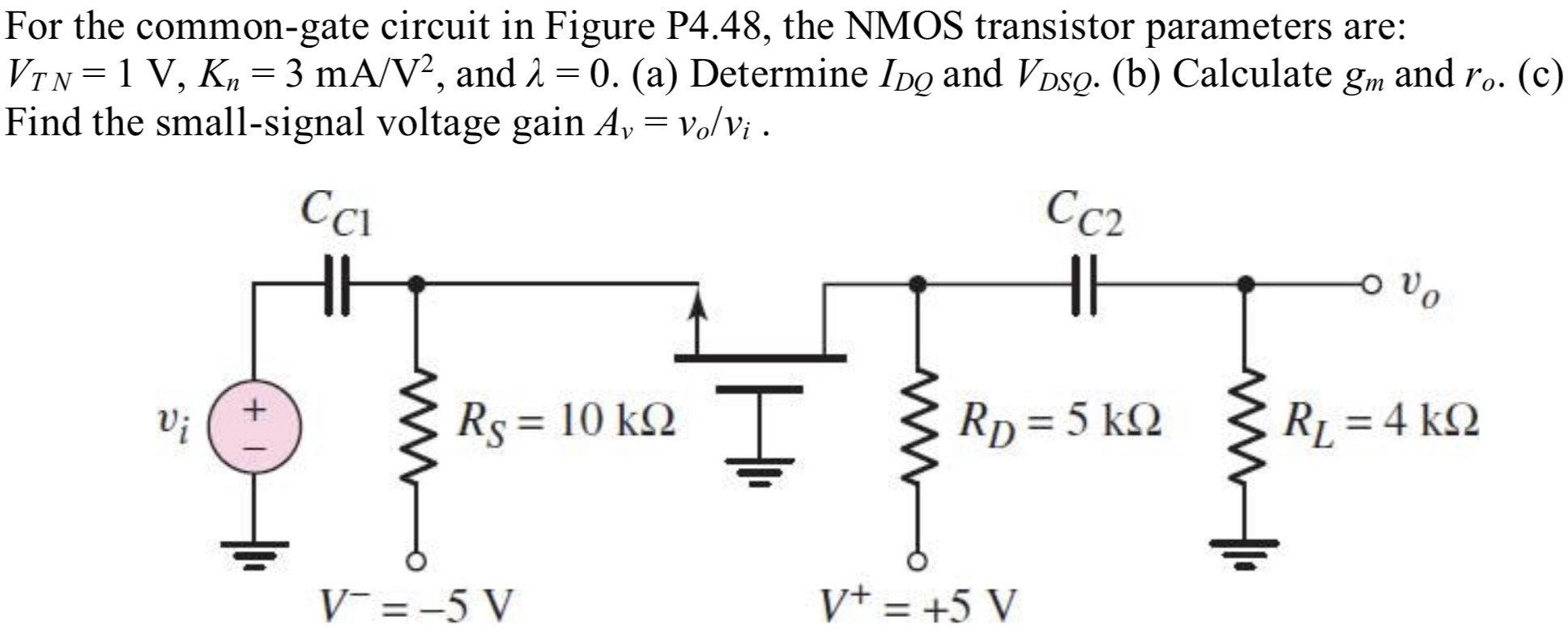

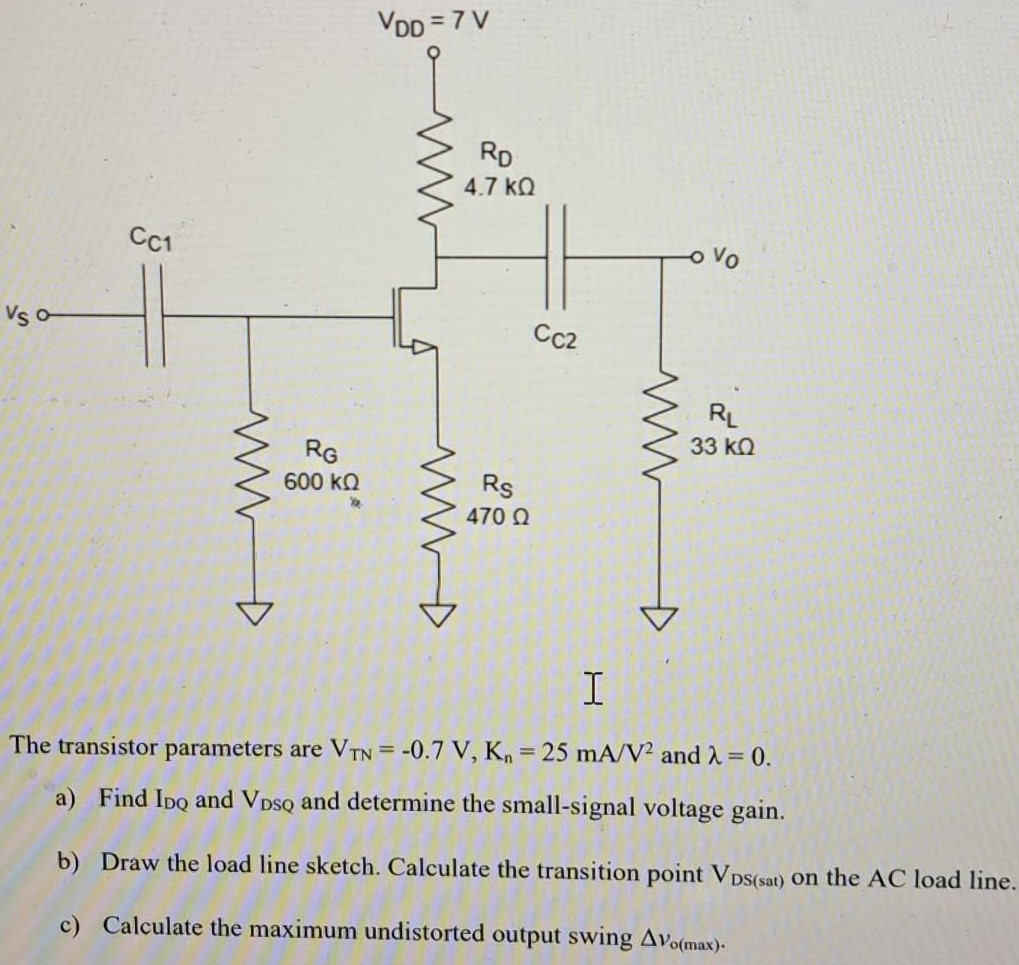

The transistor parameters are

V_{T N} = - 0.7 V, K_{n} = 25 m A / V^{2}

and

λ = 0

.
a) Find

I_{D Q}

and

V_{D S Q}

and determine the small-signal voltage gain.
b) Draw the load line sketch. Calculate the transition point

V_{D S}

(sat) on the

A C

load line.
c) Calculate the maximum undistorted output swing

Δ v_{o (max)}

.
