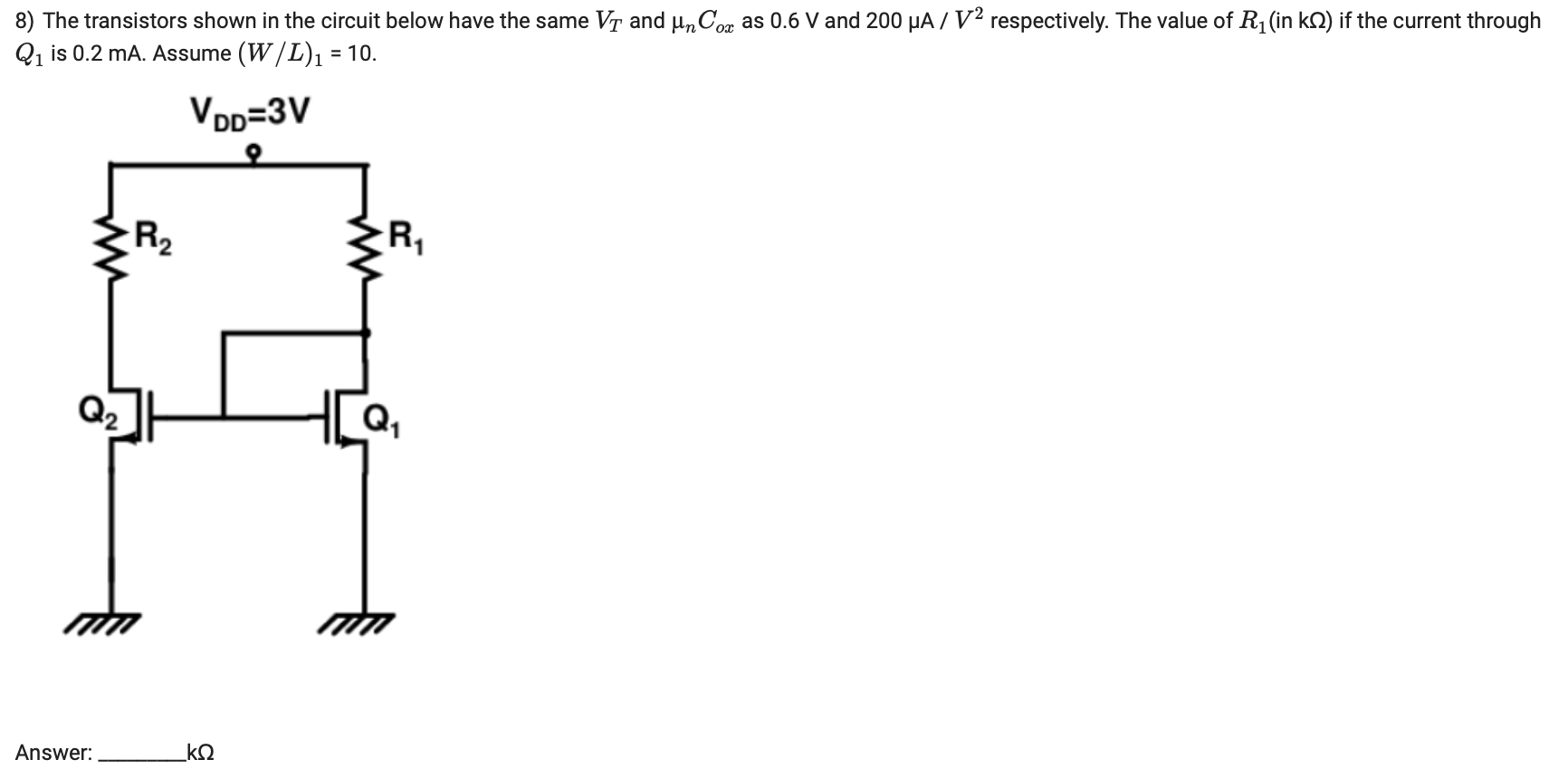

The transistors shown in the circuit below have the same VT and μnCox as 0.6 V and 200 μA/V2 respectively. The value of R1 (in kΩ) if the current through Q1 is 0.2 mA. Assume (W/L)1 = 10. Answer: kΩ

The transistors shown in the circuit below have the same VT and μnCox as 0.6 V and 200 μA/V2 respectively. The value of R1 (in kΩ) if the current through Q1 is 0.2 mA. Assume (W/L)1 = 10. Answer: kΩ

Image text
  1. The transistors shown in the circuit below have the same V T and μ n C o x as 0.6 V and 200 μ A / V 2 respectively. The value of R 1 (in k Ω ) if the current through Q 1 is 0.2 m A . Assume ( W / L ) 1 = 10 .
Answer: k Ω
