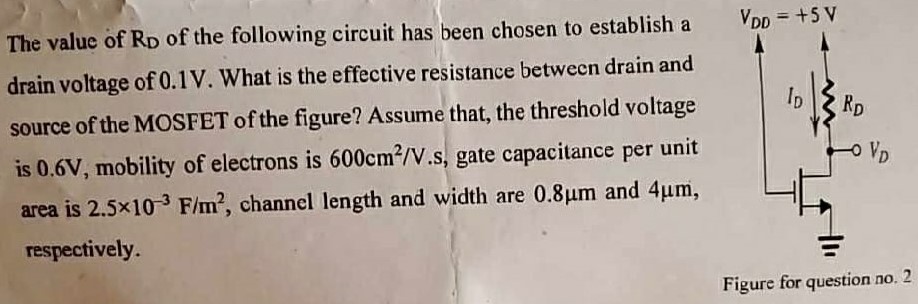

The value of RD of the following circuit has been chosen to establish a drain voltage of 0.1 V. What is the effective resistance between drain and source of the MOSFET of the figure? Assume that, the threshold voltage is 0.6 V, mobility of electrons is 600 cm2/V.s, gate capacitance per unit area is 2.5×10−3 F/m2, channel length and width are 0.8 µm and 4 µm, respectively. Figure for question no. 2

The value of RD of the following circuit has been chosen to establish a drain voltage of 0.1 V. What is the effective resistance between drain and source of the MOSFET of the figure? Assume that, the threshold voltage is 0.6 V, mobility of electrons is 600 cm2/V.s, gate capacitance per unit area is 2.5×10−3 F/m2, channel length and width are 0.8 µm and 4 µm, respectively. Figure for question no. 2

Image text
The value of RD of the following circuit has been chosen to establish a drain voltage of 0.1 V. What is the effective resistance between drain and source of the MOSFET of the figure? Assume that, the threshold voltage is 0.6 V, mobility of electrons is 600 cm2/V.s, gate capacitance per unit area is 2.5×10−3 F/m2, channel length and width are 0.8 µm and 4 µm, respectively. Figure for question no. 2

Explanation & Steps

Operating point of NMOS transistor in terms of VGS and VDS is given. First of all mode of operation of NMOS transistor need to be calculated using VGS and VDS of NMOS transistor.

Then Kirchhoff’s voltage law (KVL) can be used to determine resistance, RD and effective resistance between drain and source terminal rDS.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

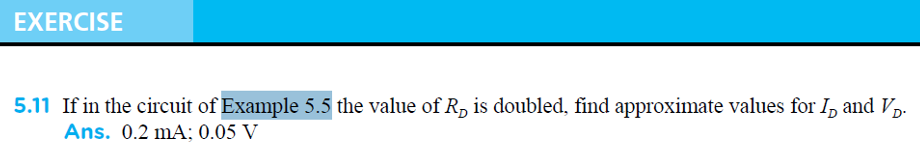

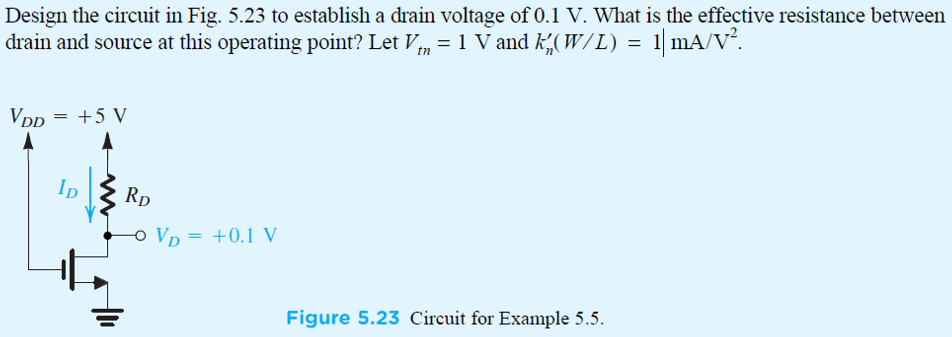

EXERCISE 5.11 If in the circuit of Example 5.5 the value of RD is doubled, find approximate values for ID and VD. Ans. 0.2 mA; 0.05 V Design the circuit in Fig. 5.23 to establish a drain voltage of 0.1 V. What is the effective resistance between drain and source at this operating point? Let Vtn = 1 V and kn’(W/L) = 1 mA/V2. Figure 5.23 Circuit for Example 5.5.
