The width of the PMOS transistor of a reference CMOS inverter is 2 and the corresponding NMOS is 1. In order for the pull-up resistance to be equal to that of a reference CMOS inverter, the size of the PMOS transistor in this logic gate should be?

The width of the PMOS transistor of a reference CMOS inverter is 2 and the corresponding NMOS is 1. In order for the pull-up resistance to be equal to that of a reference CMOS inverter, the size of the PMOS transistor in this logic gate should be?

Image text
The width of the PMOS transistor of a reference CMOS inverter is 2 and the corresponding NMOS is 1 . In order for the pull-up resistance to be equal to that of a reference CMOS inverter, the size of the PMOS transistor in this logic gate should be?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

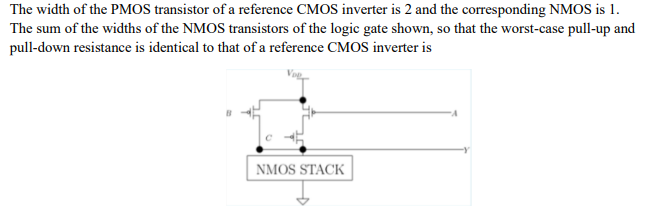

The width of the PMOS transistor of a reference CMOS inverter is 2 and the corresponding NMOS is 1. The sum of the widths of the NMOS transistors of the logic gate shown, so that the worst-case pull-up and pull-down resistance is identical to that of a reference CMOS inverter is
Solution
0 0

A full-adder is a basic combinational block used to build complex digital circuits. It is basically a 1-bit adder, that computes the sum S and output carry Cout of two input bits, A and B, plus the initial input carry Cin. The truth table of the full-adder is shown below. Cin A B S Cout 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1 1. Derive the logic functions for S and Cout. Use only AND, OR, and negation operators in your expressions. You can use whatever method you like (boolean algebra, Karnaugh maps, etc.). 2. Implement both of the functions as static CMOS logic gates (at most followed by an inverter). Draw the transistor-level schematics. You can assume that both the direct and negated versions of each input are available. 3. Size all the devices in the pull-up (PU) networks of your gates, so that the equivalent resistance of each PU is the same as that of a PMOS with W/L = 2. Repeat for the pull-down (PD) networks and a reference NMOS with W/L = 1. When you size a transistor network, you should always consider the input logic values that yield the worst-case equivalent resistance. Neglect the effect of internal node capacitances.
Solution
0 0

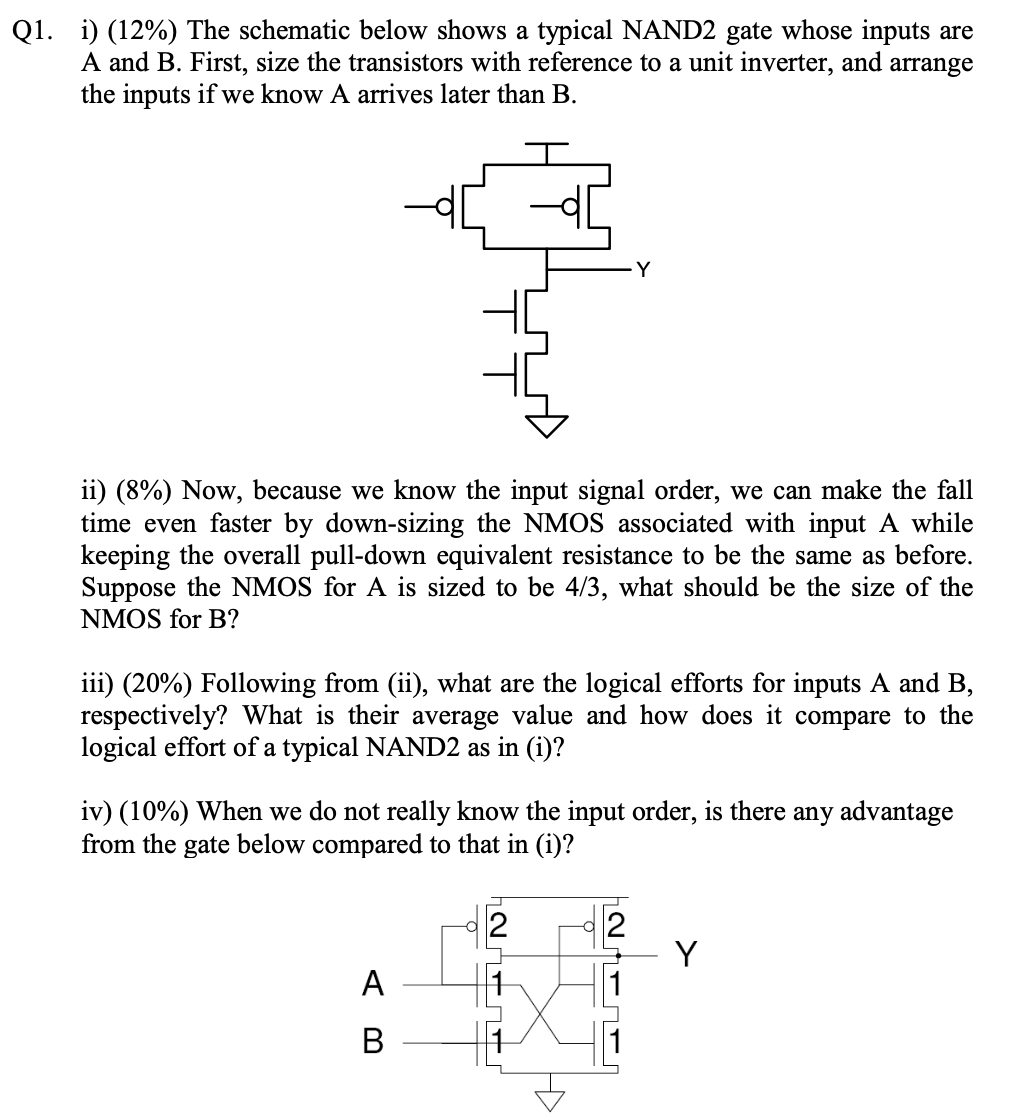

Q1. i) (12%) The schematic below shows a typical NAND2 gate whose inputs are A and B. First, size the transistors with reference to a unit inverter, and arrange the inputs if we know A arrives later than B. ii) ( 8% ) Now, because we know the input signal order, we can make the fall time even faster by down-sizing the NMOS associated with input A while keeping the overall pull-down equivalent resistance to be the same as before. Suppose the NMOS for A is sized to be 4/3, what should be the size of the NMOS for B? iii) (20%) Following from (ii), what are the logical efforts for inputs A and B, respectively? What is their average value and how does it compare to the logical effort of a typical NAND2 as in (i)? iv) (10%) When we do not really know the input order, is there any advantage from the gate below compared to that in (i)?
