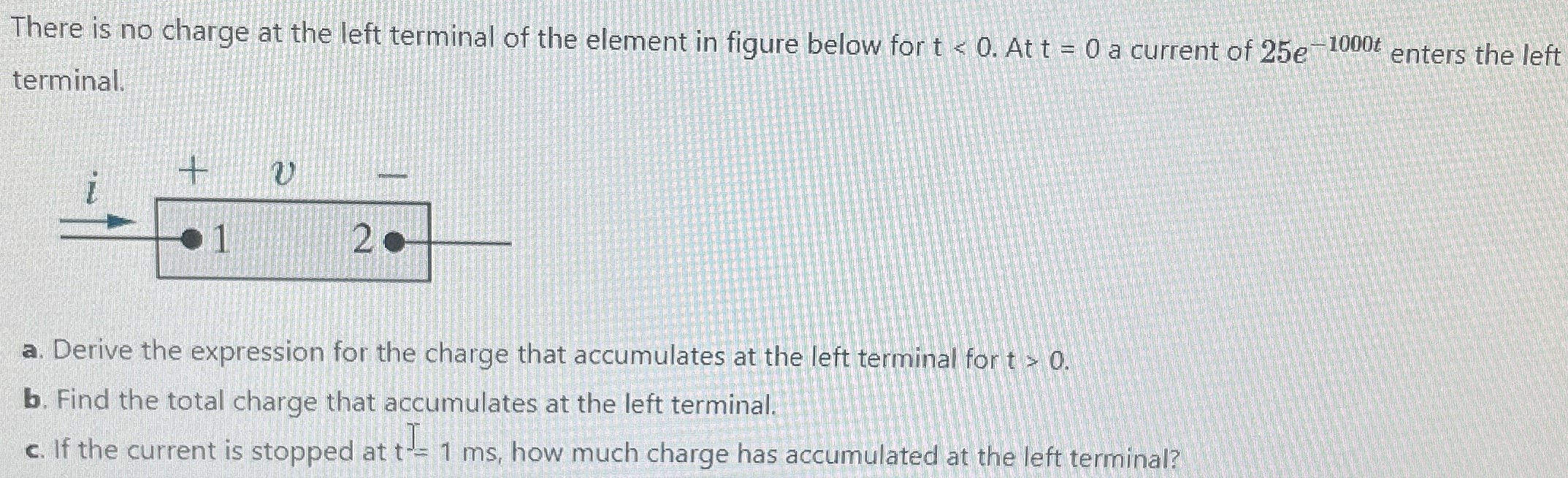

There is no charge at the left terminal of the element in figure below for t < 0. At t = 0 a current of 25e −1000 t enters the left terminal. a. Derive the expression for the charge that accumulates at the left terminal for t > 0. b. Find the total charge that accumulates at the left terminal. c. If the current is stopped at t = 1 ms, how much charge has accumulated at the left terminal?
