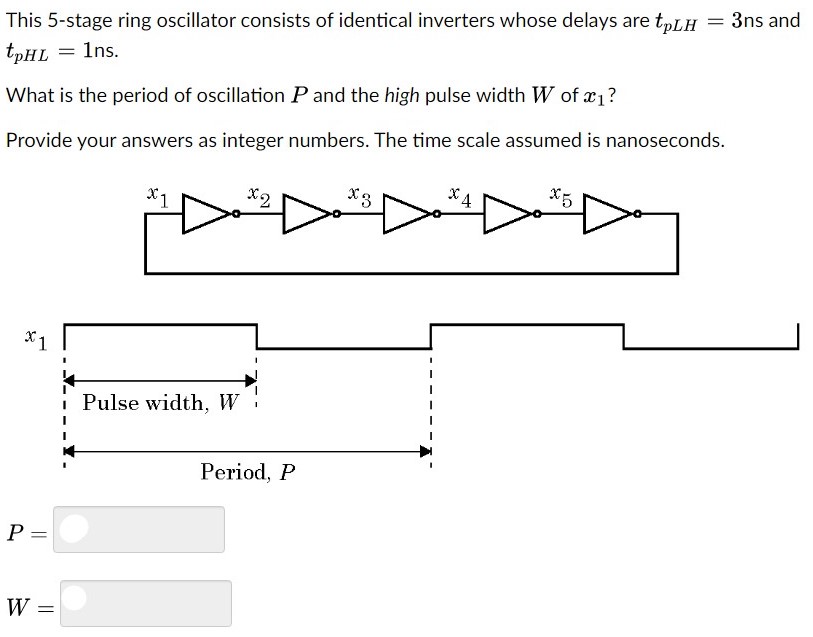

This 5 -stage ring oscillator consists of identical inverters whose delays are tpLH = 3 ns and tpHL = 1 ns. What is the period of oscillation P and the high pulse width W of x1 ? Provide your answers as integer numbers. The time scale assumed is nanoseconds.

This 5 -stage ring oscillator consists of identical inverters whose delays are tpLH = 3 ns and tpHL = 1 ns. What is the period of oscillation P and the high pulse width W of x1 ? Provide your answers as integer numbers. The time scale assumed is nanoseconds.

Image text
This 5 -stage ring oscillator consists of identical inverters whose delays are t p L H = 3 n s and t p H L = 1 n s .
What is the period of oscillation P and the high pulse width W of x 1 ? Provide your answers as integer numbers. The time scale assumed is nanoseconds.
