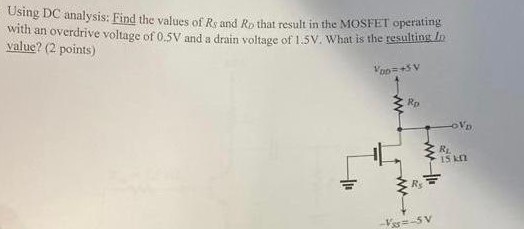

Using DC analysis: Find the values of RS and RD that result in the MOSFET operating with an overdrive voltage of 0.5 V and a drain voltage of 1.5 V. What is the resulting ID value?
