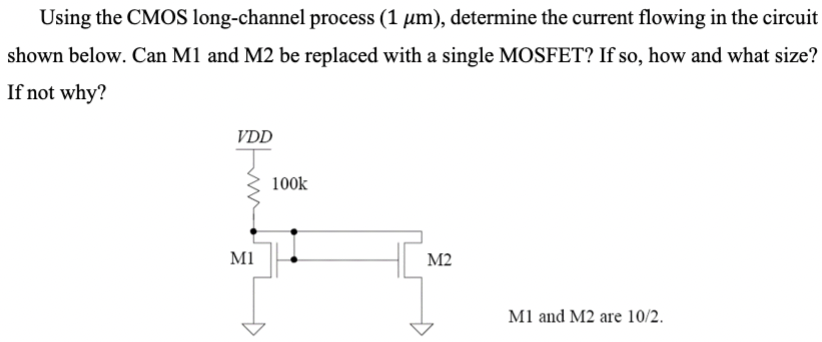

Using the CMOS long-channel process (1 μm), determine the current flowing in the circuit shown below. Can M1 and M2 be replaced with a single MOSFET? If so, how and what size? If not why?
