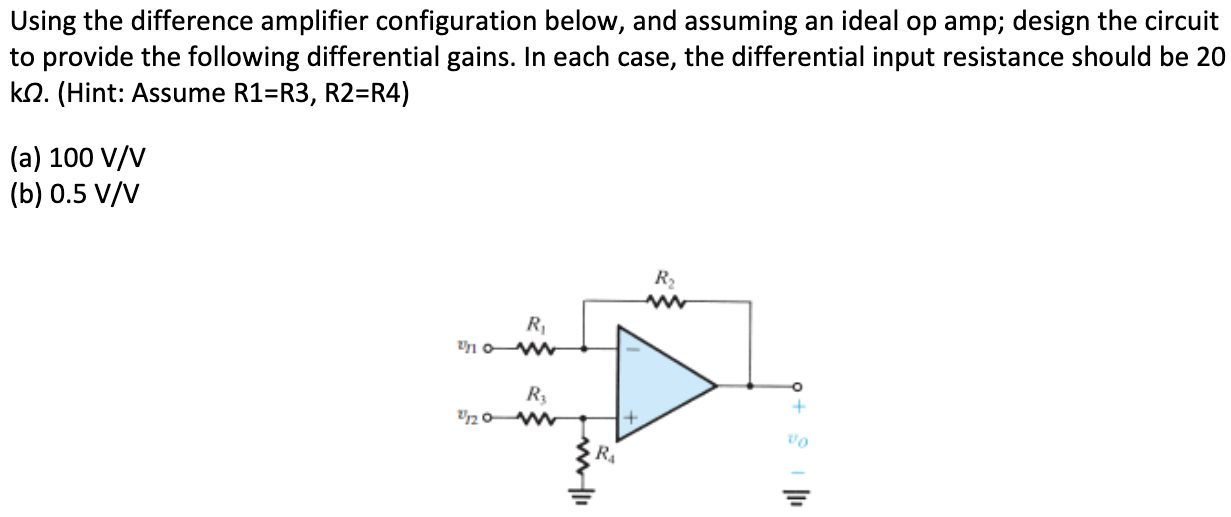

Using the difference amplifier configuration below, and assuming an ideal op amp; design the circuit to provide the following differential gains. In each case, the differential input resistance should be 20 kΩ. (Hint: Assume R1 = R3, R2 = R4) (a) 100 V/V (b) 0.5 V/V
