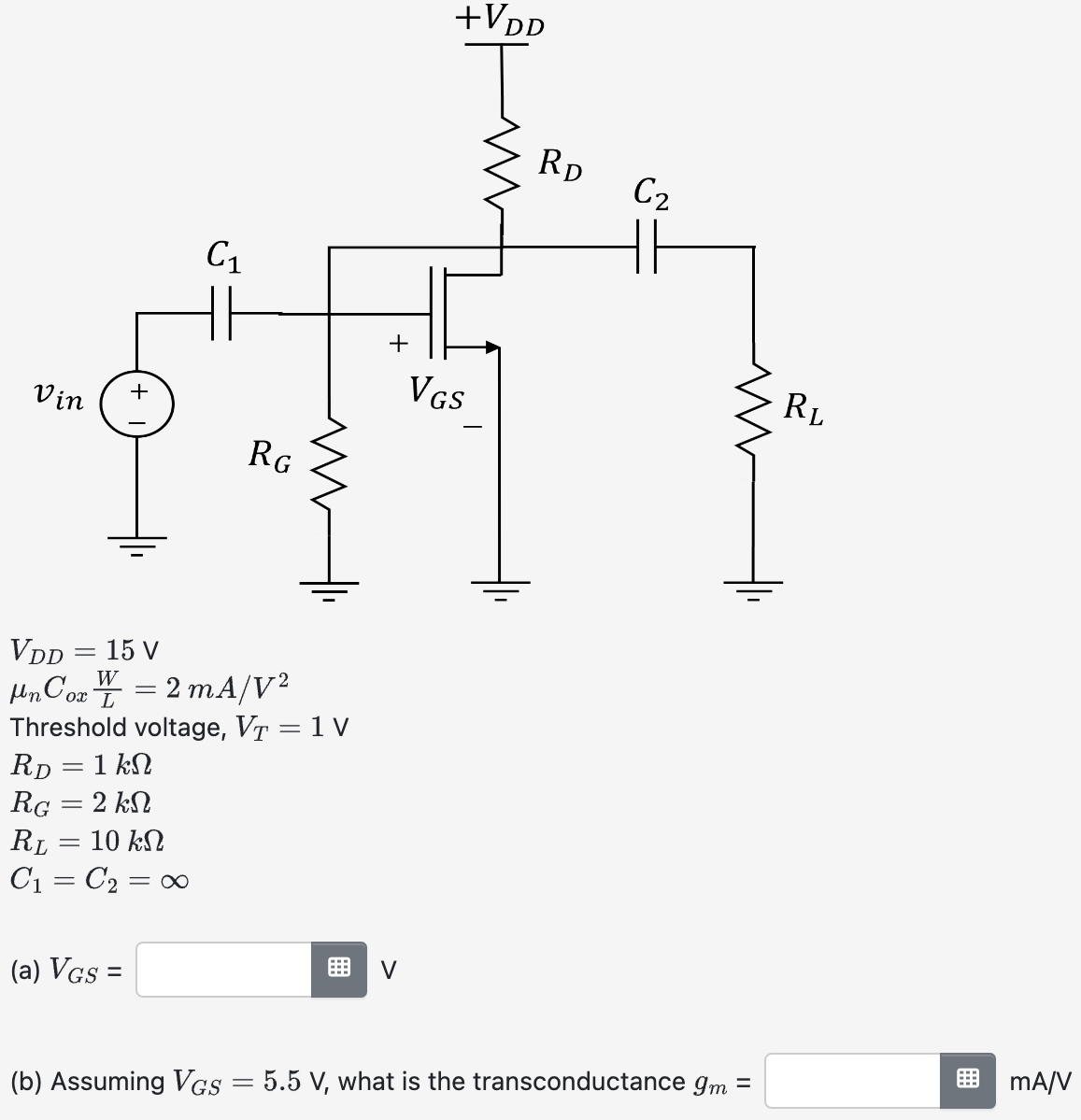

VDD = 15 V μnCoxW/L = 2 mA/V2 Threshold voltage, VT = 1 RD = 1 kΩ RG = 2 kΩ RL = 10 kΩ C1 = C2 = ∞ (a) VGS = (b) Assuming VGS = 5.5 V, what is the transconductance gm mA/V
Image text
VDD = 15 V μnCoxW/L = 2 mA/V2 Threshold voltage, VT = 1 RD = 1 kΩ RG = 2 kΩ RL = 10 kΩ C1 = C2 = ∞ (a) VGS = (b) Assuming VGS = 5.5 V, what is the transconductance gm mA/V
