Question

Notify Me Bookmark

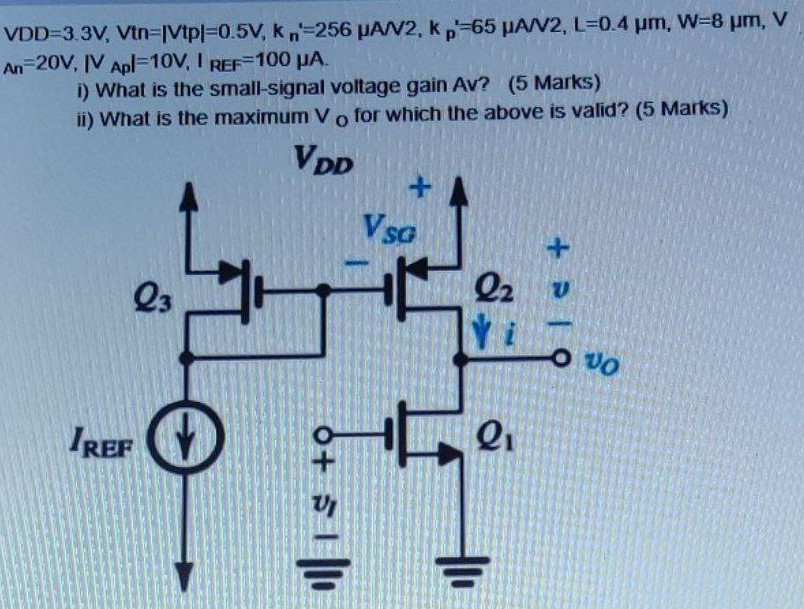

VDD = 3.3 V, Vtn = |Vtp| = 0.5V, kn' = 256 uA/V2, kp' = 65 uA/V2, L = 0.4 um, W = 8 um, VAn = 20 V, |VAp| = 10V, Iref = 100 uA. i) What is the small-signal voltage gain Av? ii) What is the maximum Vo for which the above is valid?

VDD = 3.3 V, Vtn = |Vtp| = 0.5V, kn' = 256 uA/V2, kp' = 65 uA/V2, L = 0.4 um, W = 8 um, VAn = 20 V, |VAp| = 10V, Iref = 100 uA. i) What is the small-signal voltage gain Av? ii) What is the maximum Vo for which the above is valid?


Image text
VDD = 3.3 V, Vtn = |Vtp| = 0.5V, kn' = 256 uA/V2, kp' = 65 uA/V2, L = 0.4 um, W = 8 um, VAn = 20 V, |VAp| = 10V, Iref = 100 uA. i) What is the small-signal voltage gain Av? ii) What is the maximum Vo for which the above is valid?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Consider the CMOS common-source amplifier in Fig. 7.4(a) for the case VDD = 3 V, Vtn = |Vtp| = 0.6 V, μnCox = 200 μA/V2, and μpCox = 65 μA/V2. For all transistors, L = 0.4 μm and W = 4 μm. Also, VAn = 20 V, |VAp| = 10 V, and IREF = 100 μA. Find the small-signal voltage gain. Also, find the coordinates of the extremities of the amplifier region of the transfer characteristic-that is, points A and B. (a)
Solution
0 0

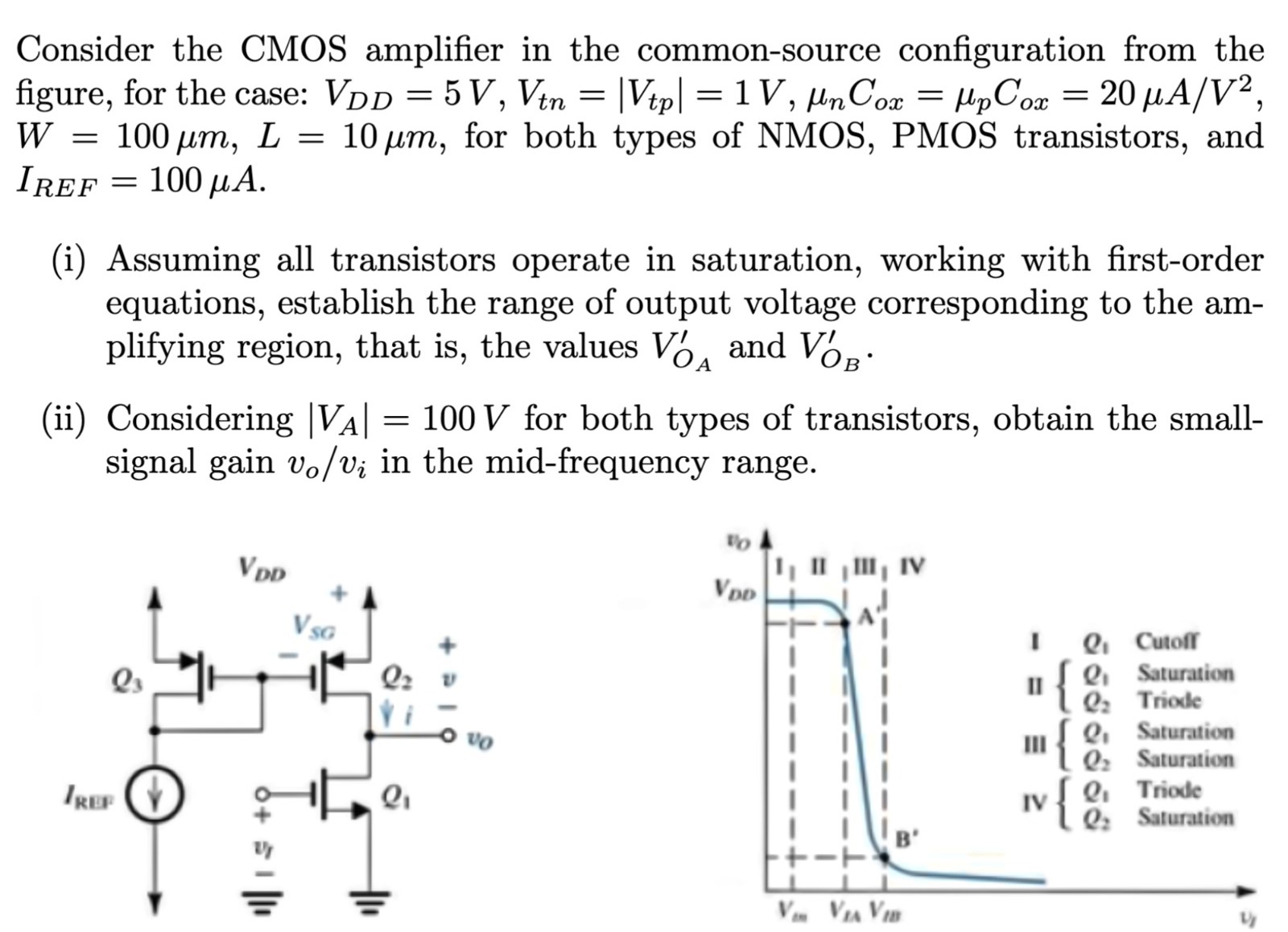

Consider the CMOS amplifier in the common-source configuration from the figure, for the case: VDD = 5 V, Vtn = |Vtp| = 1 V, μnCox = μpCox = 20 μA/V2, W = 100 μm, L = 10 μm, for both types of NMOS, PMOS transistors, and IREF = 100 μA. (i) Assuming all transistors operate in saturation, working with first-order equations, establish the range of output voltage corresponding to the amplifying region, that is, the values VOA′ and VOB′. (ii) Considering |VA| = 100 V for both types of transistors, obtain the small-signal gain vo/vi in the mid-frequency range.
Solution
3 0

Figure 3 Figure 3 shows an amplifier with a current mirror as an active load. The MOSFETs have the following parameters: Vtn = −Vt = 0.6 V, kn′ = 200 μA/V2, kp′ = 65 μA/V2, VA(MMOS) = 20 V, VA(PMOS) = −10 V, VT = 26 mV, R1 = 7 kΩ, R2 = 10 kΩ, L = 0.4 μm and W = 4 μm. The base-emitter forward voltage, VBE, of transistor Q4 is 0.7 V. The forward voltage drop for both D1 and D2 is 0.7 V. The supply voltage, VDO = 3 V. Assume the base current of Q4 is negligible compared to the emitter and collector currents of Q4, with all the transistors biased in the active region. a. ) Given that ID = k′(WL)(VGS − Vt)2, calculate the gate to source voltage of Q1. b. ) Calculate the small-signal voltage gain, vout/vin. .

Solution
