We have an n-channel MOSFET circuit shown in the figure. We are given following parameters: VT = 0.5v, VDD = 4V, Vss = -2V, VDS = 0.5v, ID = 1mA, and Z/LunCox = 2x10^-3(A/ V^2 ) . Determine at which mode the MOSFET is operating? Calculate resistance values for RD and Rs.

We have an n-channel MOSFET circuit shown in the figure. We are given following parameters: VT = 0.5v, VDD = 4V, Vss = -2V, VDS = 0.5v, ID = 1mA, and Z/LunCox = 2x10^-3(A/ V^2 ) . Determine at which mode the MOSFET is operating? Calculate resistance values for RD and Rs.

Image text
We have an n-channel MOSFET circuit shown in the figure. We are given following parameters: VT = 0.5v, VDD = 4V, Vss = -2V, VDS = 0.5v, ID = 1mA, and Z/LunCox = 2x10^-3(A/ V^2 ) . Determine at which mode the MOSFET is operating? Calculate resistance values for RD and Rs.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

a) Your job is to design the following circuit, using 2 mA of bias current and achieve a gain of at least 3.5 V/V. You realize that you can bias an amplifier using degeneration resistance using the circuit topology shown below. Calculate values for RS to get 2 mA of current, and RL to get the gain you need. For large signal calculations, you may assume lambda = 0. What is the problem with this amplifier? b) You suggest replacing the load resistance RL with a current source that has a very large output impedance, as shown below. The current source requires a headroom of at least 0.5 V. What is the gain of the amplifier? How does this fix the problem from the previous part? 1 Debugging Amplifiers Suppose you are given an NMOS transistor with the following parameters: In addition, VDD = 5 V.

a) Your job is to design the following circuit, using 2 mA of bias current and achieve a gain of at least 3.5 V/V. You realize that you can bias an amplifier using degeneration resistance using the circuit topology shown below. Calculate values for RS to get 2 mA of current, and RL to get the gain you need. For large signal calculations, you may assume lambda = 0. What is the problem with this amplifier? b) You suggest replacing the load resistance RL with a current source that has a very large output impedance, as shown below. The current source requires a headroom of at least 0.5 V. What is the gain of the amplifier? How does this fix the problem from the previous part? 1 Debugging Amplifiers Suppose you are given an NMOS transistor with the following parameters: In addition, VDD = 5 V.

a) Your job is to design the following circuit, using 2 mA of bias current and achieve a gain of at least 3.5 V/V. You realize that you can bias an amplifier using degeneration resistance using the circuit topology shown below. Calculate values for RS to get 2 mA of current, and RL to get the gain you need. For large signal calculations, you may assume lambda = 0. What is the problem with this amplifier? b) You suggest replacing the load resistance RL with a current source that has a very large output impedance, as shown below. The current source requires a headroom of at least 0.5 V. What is the gain of the amplifier? How does this fix the problem from the previous part? 1 Debugging Amplifiers Suppose you are given an NMOS transistor with the following parameters: In addition, VDD = 5 V.
Solution
1 0

(a) For the circuit shown in figure 1(a), find the following [20] i. Vi(s)/Vs(s) ii. Vo(s)/Vi(s) iii. Vo(s)/Vs(s) iv. Draw the magnitude plot for |T(jω)| in dBvs. frequency v. Lower 3 dB cut-off frequency fL vi. Upper 3 dB cut-off frequency fH vii. Bandwidth (b) Consider the n-channel MOSFET amplifier in figure 1(b). ID = 12 kn′W L(VGS − Vt)2, VDD = 5 V, RL = 2 kΩ, kn′WL = 1 mA/V2, Vt = 1 V. You can ignore channel length modulation. CC is the input coupling capacitor. You can assume it is infinitely large. [10] i. Determine the required ratio RA/RB such that the MOSFET gm = 1 mA/V. Remember that gm is defined as ∂ID/∂VGS ii. Draw the small-signal π model for the amplifier iii. Calculate the gain Vout/Vin (for gm = 1 mA/V ) (a) Figure for question 1 (a) (b) Figure for question 1 (b)

Solution
0 0

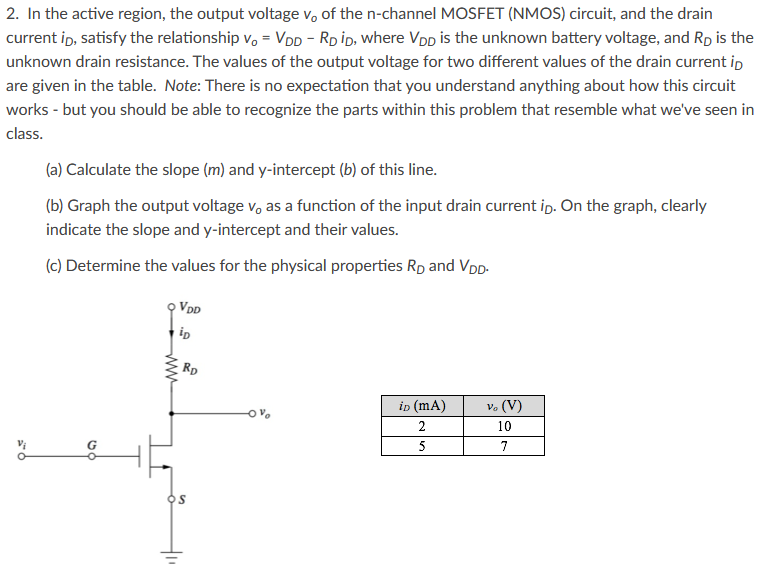

In the active region, the output voltage v0 of the n-channel MOSFET (NMOS) circuit, and the drain current iD, satisfy the relationship vo = VDD − RDiD, where VDD is the unknown battery voltage, and RD is the unknown drain resistance. The values of the output voltage for two different values of the drain current iD are given in the table. Note: There is no expectation that you understand anything about how this circuit works - but you should be able to recognize the parts within this problem that resemble what we've seen in class. (a) Calculate the slope (m) and y-intercept (b) of this line. (b) Graph the output voltage vo as a function of the input drain current iD. On the graph, clearly indicate the slope and y-intercept and their values. (c) Determine the values for the physical properties RD and VDD.
