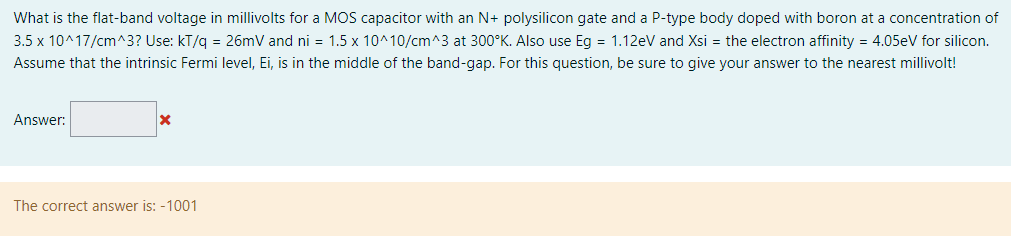

What is the flat-band voltage in millivolts for a MOS capacitor with an N+ polysilicon gate and a P-type body doped with boron at a concentration of 3.5×10^17 /cm^3 ? Use: kT/q = 26 mV and ni = 1.5×10^10 /cm^3 at 300∘K. Also use Eg = 1.12 eV and Xsi = the electron affinity = 4.05 eV for silicon. Assume that the intrinsic Fermi level, Ei, is in the middle of the band-gap. For this question, be sure to give your answer to the nearest millivolt! Answer: The correct answer is: -1001

What is the flat-band voltage in millivolts for a MOS capacitor with an N+ polysilicon gate and a P-type body doped with boron at a concentration of 3.5×10^17 /cm^3 ? Use: kT/q = 26 mV and ni = 1.5×10^10 /cm^3 at 300∘K. Also use Eg = 1.12 eV and Xsi = the electron affinity = 4.05 eV for silicon. Assume that the intrinsic Fermi level, Ei, is in the middle of the band-gap. For this question, be sure to give your answer to the nearest millivolt! Answer: The correct answer is: -1001

Image text
What is the flat-band voltage in millivolts for a MOS capacitor with an N+ polysilicon gate and a P-type body doped with boron at a concentration of 3.5 × 10 ∧ 17 / c m ∧ 3 ? Use: k T / q = 26 m V and n i = 1.5 × 10 ∧ 10 / c m ∧ 3 at 300 ∘ K . Also use E g = 1.12 e V and X s i = the electron affinity = 4.05 e V for silicon. Assume that the intrinsic Fermi level, Ei, is in the middle of the band-gap. For this question, be sure to give your answer to the nearest millivolt!
Answer: ◻ The correct answer is: -1001

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

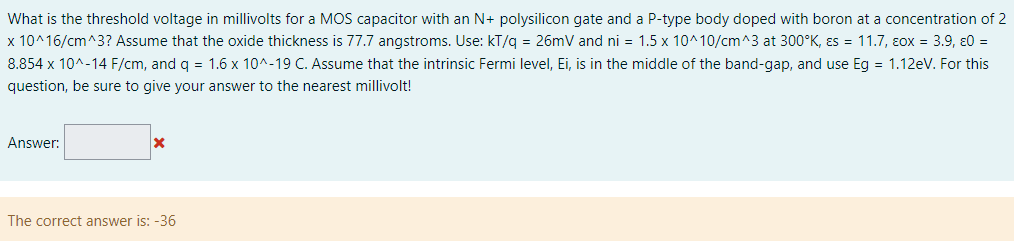

What is the threshold voltage in millivolts for a MOS capacitor with an N+ polysilicon gate and a P-type body doped with boron at a concentration of 2 x10^16 /cm^3 ? Assume that the oxide thickness is 77.7 angstroms. Use: kT/q = 26 mV and ni = 1.5×10^10 /cm^3 at 300∘K, εs = 11.7, εox = 3.9, ε0 = 8.854×10^−14 F/cm, and q = 1.6×10^−19 C. Assume that the intrinsic Fermi level, Ei, is in the middle of the band-gap, and use Eg = 1.12 eV. For this question, be sure to give your answer to the nearest millivolt! Answer: The correct answer is: -36

Solution
0 0

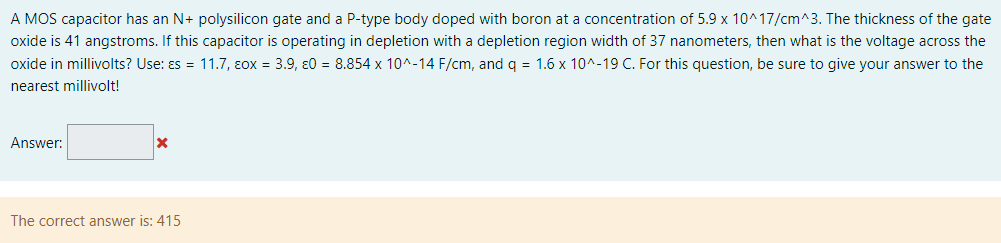

A MOS capacitor has an N+ polysilicon gate and a P-type body doped with boron at a concentration of 5.9×10^17 /cm^3. The thickness of the gate oxide is 41 angstroms. If this capacitor is operating in depletion with a depletion region width of 37 nanometers, then what is the voltage across the oxide in millivolts? Use: εs = 11.7, εox = 3.9, ε0 = 8.854×10^−14 F/cm, and q = 1.6×10^−19 C. For this question, be sure to give your answer to the nearest millivolt! Answer: The correct answer is: 415

Solution
0 0

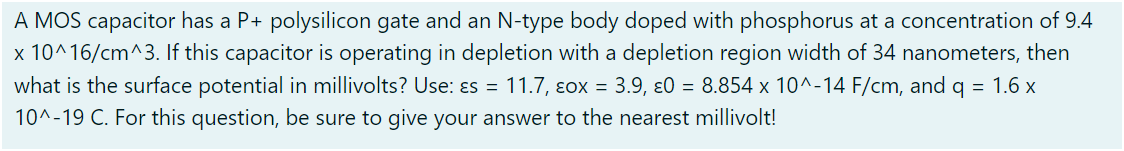

A MOS capacitor has a P+ polysilicon gate and an N-type body doped with phosphorus at a concentration of 9.4 x10^16 /cm^3. If this capacitor is operating in depletion with a depletion region width of 34 nanometers, then what is the surface potential in millivolts? Use: εs = 11.7, εox = 3.9, ε0 = 8.854×10^−14 F/cm, and q = 1.6 x 10^−19 C. For this question, be sure to give your answer to the nearest millivolt!
Solution
0 0
