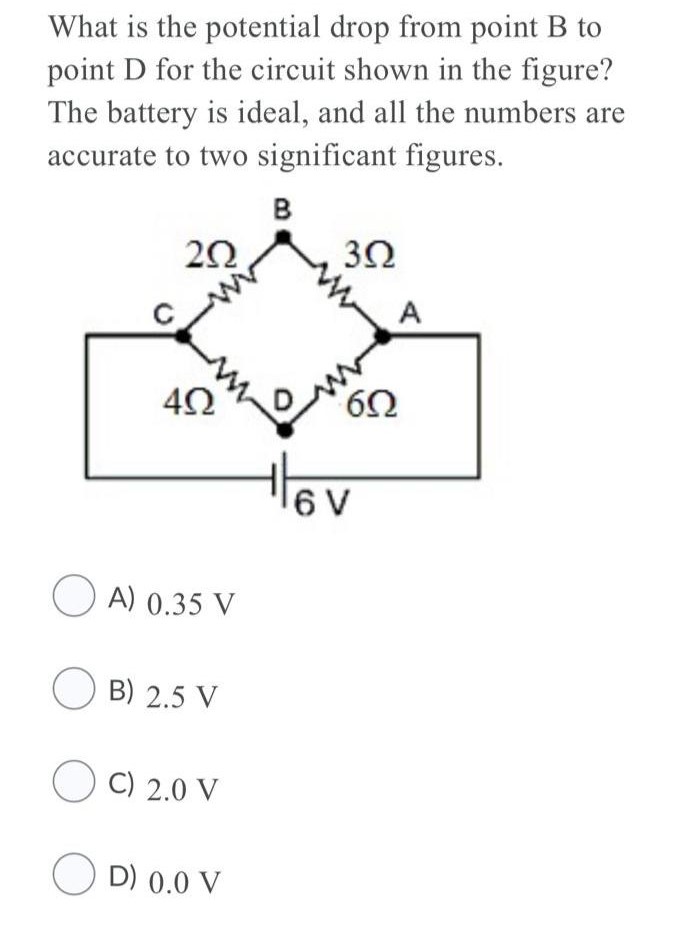

What is the potential drop from point B to point D for the circuit shown in the figure? The battery is ideal, and all the numbers are accurate to two significant figures. A) 0.35 V B) 2.5 V C) 2.0 V D) 0.0 V
Image text
What is the potential drop from point B to point D for the circuit shown in the figure? The battery is ideal, and all the numbers are accurate to two significant figures.
A) 0.35 V
B) 2.5 V
C) 2.0 V
D) 0.0 V
