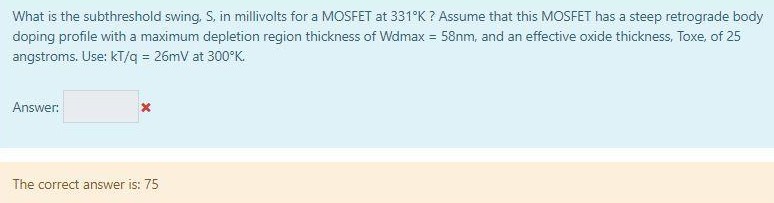

What is the subthreshold swing, S, in millivolts for a MOSFET at 331∘K ? Assume that this MOSFET has a steep retrograde body doping profile with a maximum depletion region thickness of Wdmax = 58 nm, and an effective oxide thickness, Toxe, of 25 angstroms. Use: kT/q = 26 mV at 300∘K. Answer: The correct answer is: 75

What is the subthreshold swing, S, in millivolts for a MOSFET at 331∘K ? Assume that this MOSFET has a steep retrograde body doping profile with a maximum depletion region thickness of Wdmax = 58 nm, and an effective oxide thickness, Toxe, of 25 angstroms. Use: kT/q = 26 mV at 300∘K. Answer: The correct answer is: 75

Image text
What is the subthreshold swing, S, in millivolts for a MOSFET at 331 ∘ K ? Assume that this MOSFET has a steep retrograde body doping profile with a maximum depletion region thickness of Wdmax = 58 n m , and an effective oxide thickness, Toxe, of 25 angstroms. Use: k T / q = 26 m V at 300 ∘ K .
Answer: ◻ The correct answer is: 75

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

What is the minimum threshold voltage in millivolts that can be used for an NMOS FET to achieve an off current, loff, when Vgs = 0 V of no more than 0.78 nA per W/L at 300∘K ? Assume that this MOSFET has a steep retrograde body doping profile with a maximum depletion region thickness of Wdmax = 40 nm, and an effective oxide thickness, Toxe, of 22 angstroms. Use kT/q = 26 mV at 300∘K. Answer: The correct answer is: 147

Solution
3 0

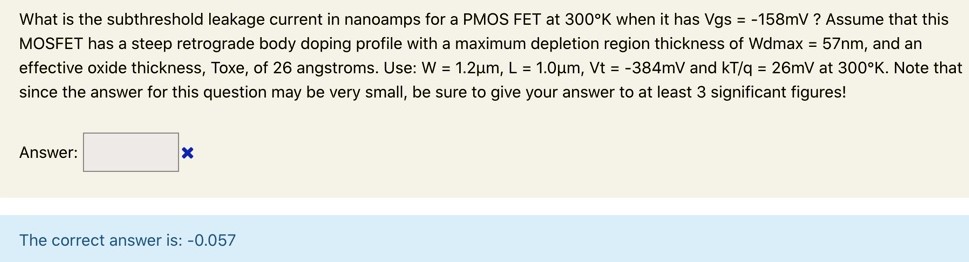

What is the subthreshold leakage current in nanoamps for a PMOS FET at 300∘K when it has Vgs = −158 mV ? Assume that this MOSFET has a steep retrograde body doping profile with a maximum depletion region thickness of Wdmax = 57 nm, and an effective oxide thickness, Toxe, of 26 angstroms. Use: W = 1.2 μm, L = 1.0 μm, Vt = −384 mV and kT/q = 26 mV at 300∘K. Note that since the answer for this question may be very small, be sure to give your answer to at least 3 significant figures! Answer: The correct answer is: -0.057
