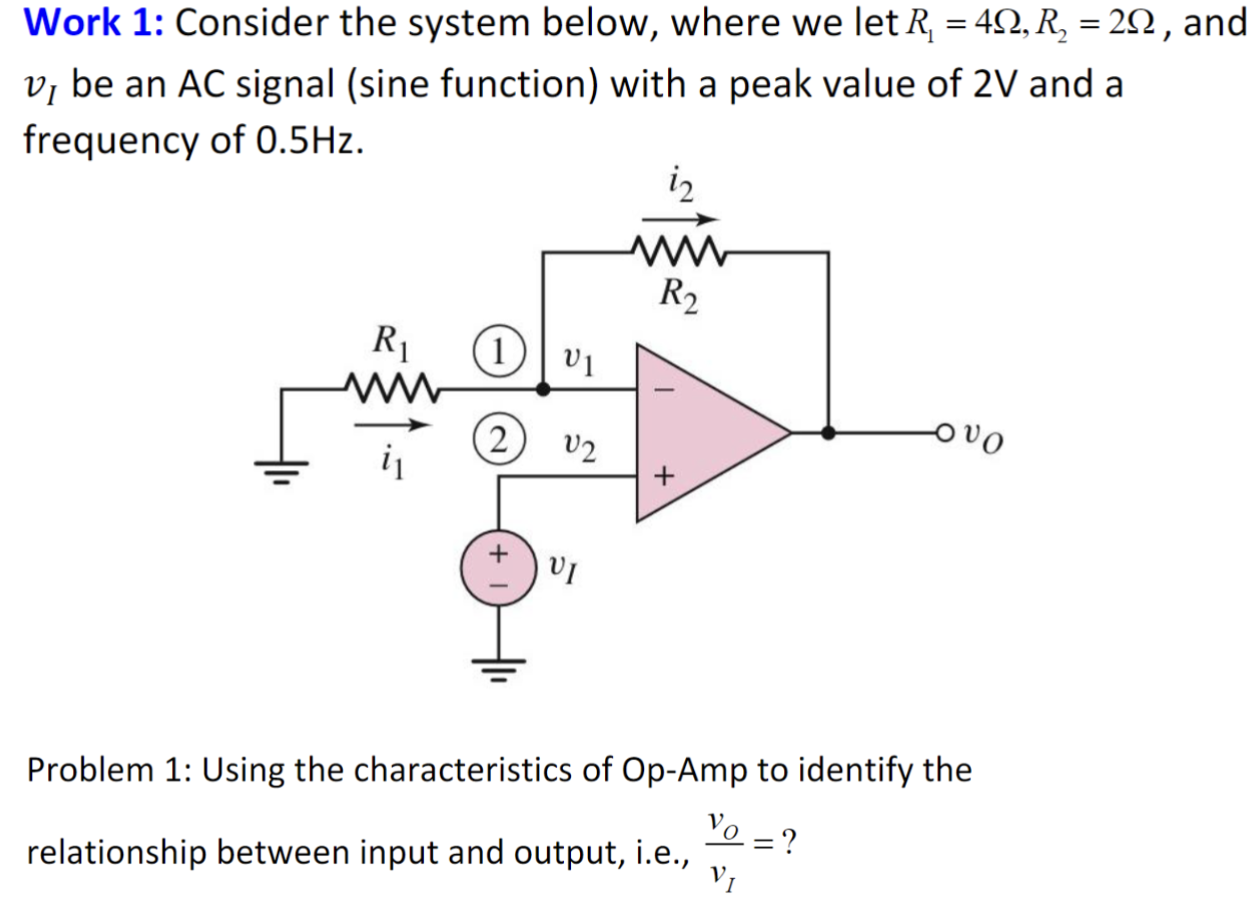

Work 1: Consider the system below, where we let R1 = 4 Ω, R2 = 2 Ω, and vI be an AC signal (sine function) with a peak value of 2 V and a frequency of 0.5 Hz. Problem 1: Using the characteristics of Op-Amp to identify the relationship between input and output, i. e. , vO vI = ?

Work 1: Consider the system below, where we let R1 = 4 Ω, R2 = 2 Ω, and vI be an AC signal (sine function) with a peak value of 2 V and a frequency of 0.5 Hz. Problem 1: Using the characteristics of Op-Amp to identify the relationship between input and output, i. e. , vO vI = ?

Image text
Work 1: Consider the system below, where we let R 1 = 4 Ω , R 2 = 2 Ω , and v I be an A C signal (sine function) with a peak value of 2 V and a frequency of 0.5 H z .
Problem 1: Using the characteristics of Op-Amp to identify the relationship between input and output, i.e., v O v I = ?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

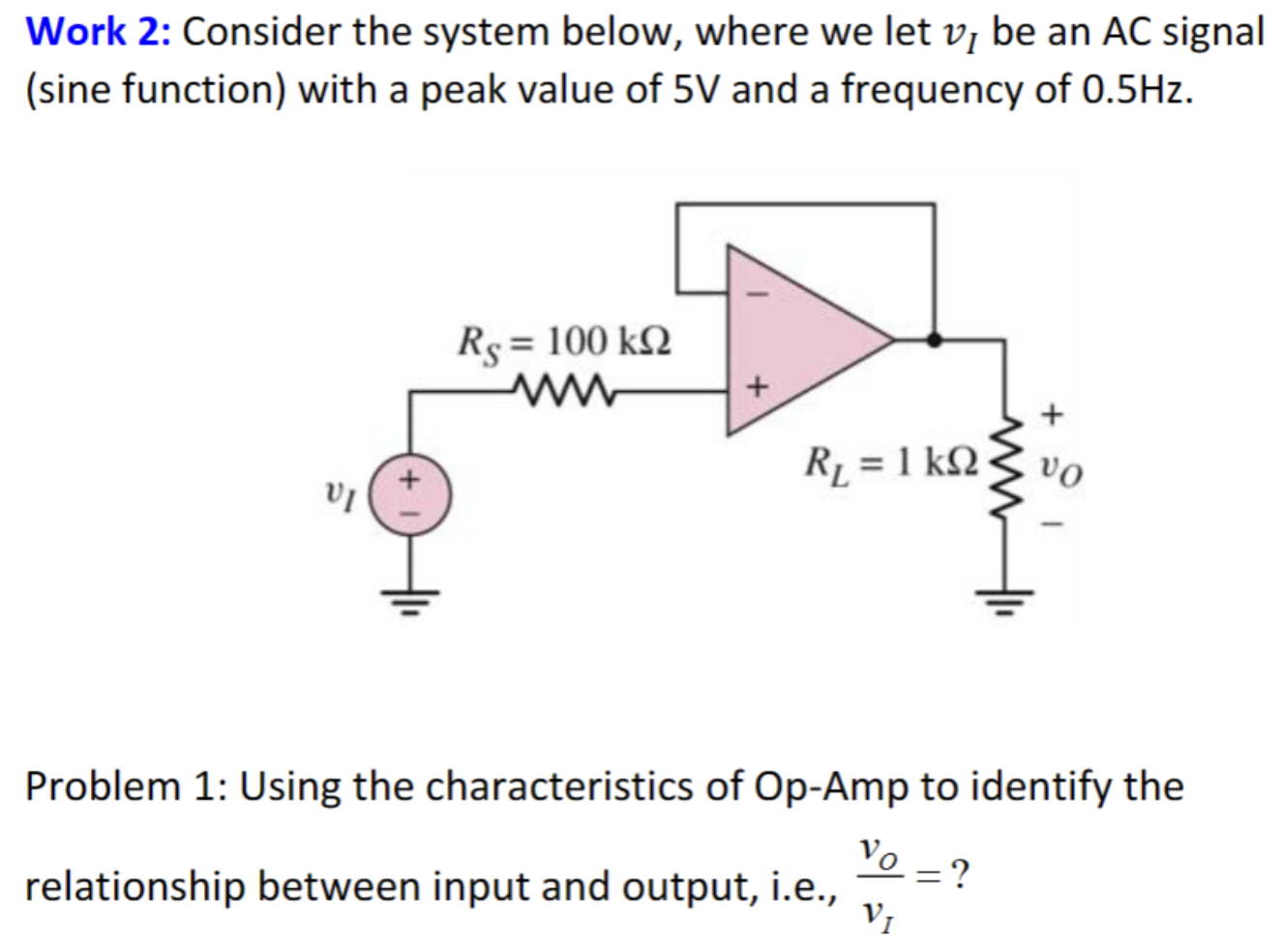

Work 2: Consider the system below, where we let vI be an AC signal (sine function) with a peak value of 5 V and a frequency of 0.5 Hz. Problem 1: Using the characteristics of Op-Amp to identify the relationship between input and output, i. e. , vO vI = ?

Solution
0 0

In the circuit below, VDD = 3 V, R1 = 50 kΩ, R2 = 100 kΩ, R3 = R4 = 5 kΩ, Rs = 1 kΩ and RL = 30 kΩ, C1, C2 and C3 have large values. The transistor operates at the DC point of ID = 0.2 mA, VDS = 1 V and VGS − VTN = 0.5 V. The transistor has λ = 0.1 V−1 and a negligible body effect. (a) Identify the circuit as a common-source, common-drain, or common-gate amplifier. (b) Calculate the small-signal parameters gm and rds of the transistor. (c) Draw an AC small-signal equivalent of the circuit, with the transistor represented by its small-signal model. (d) Calculate the AC small-signal voltage gain vo/vs. (e) Calculate the AC small-signal input and output resistances Rin and Rout.
Solution
0 0

In the circuit shown in Figure 2. f, the transistor is biased in the saturation region. The transistor is an n-channel enhancement type MOSFET with an aspect ratio of (W/L) 15 , a threshold voltage of 2 V, and a gate capacitance per unit area of 480 nF/cm2. The electron mobility is 520 cm2/Vs. The bias parameters are VDD = 5 V, RD = 2.2 kΩ, R1 = 10 MΩ, and R2 = 12 MΩ. Calculate VGS, VDS, and ID at the operating
Solution
