Question

Notify Me Bookmark

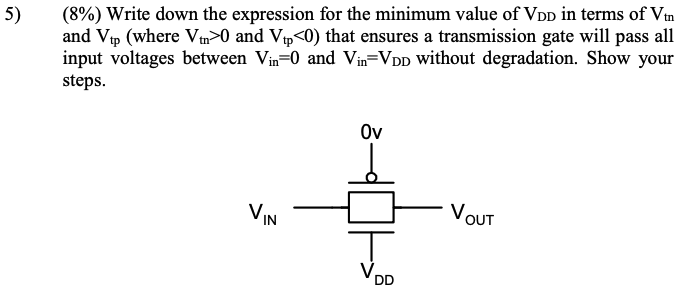

Write down the expression for the minimum value of VDD in terms of Vtn and Vtp (where Vtn > 0 and Vtp < 0 ) that ensures a transmission gate will pass all input voltages between Vin = 0 and Vin = VDD without degradation. Show your steps.

Image text

(8%) Write down the expression for the minimum value of $V_{D D}$ in terms of $V_{t n}$ and $V_{t p}$ (where $V_{t n} > 0$ and $V_{t p} < 0$ ) that ensures a transmission gate will pass all input voltages between $V_{in} = 0$ and $V_{in} = V_{DD}$ without degradation. Show your steps.
