You have a 74.1 mF capacitor initially charged to a potential difference of 10.9 V. You discharge the capacitor through a 3.39 Ω resistor. What is the circuit's time constant τ ? τ = s At what time t, expressed as a multiple nτ of the time constant, does the potential difference across the capacitor reach 1.29 V? t = τ

You have a 74.1 mF capacitor initially charged to a potential difference of 10.9 V. You discharge the capacitor through a 3.39 Ω resistor. What is the circuit's time constant τ ? τ = s At what time t, expressed as a multiple nτ of the time constant, does the potential difference across the capacitor reach 1.29 V? t = τ

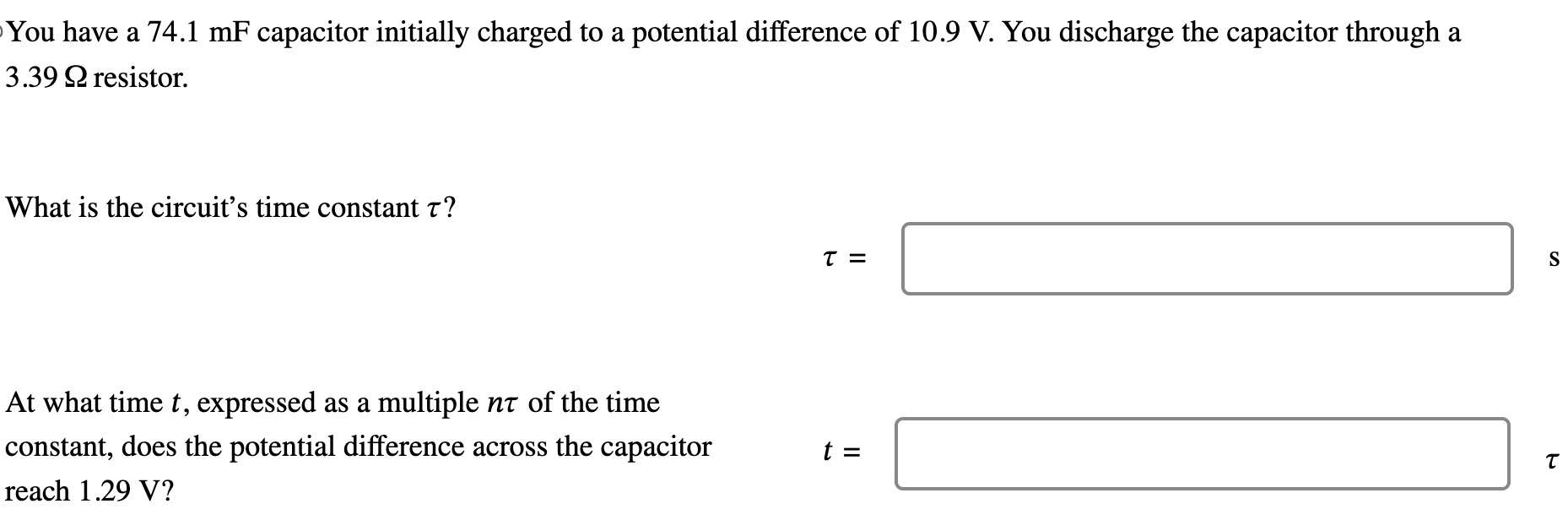

Image text
You have a 74.1 mF capacitor initially charged to a potential difference of 10.9 V . You discharge the capacitor through a 3.39 Ω resistor.
What is the circuit's time constant τ ?
τ =
◻ s At what time t , expressed as a multiple n τ of the time constant, does the potential difference across the capacitor reach 1.29 V ?
t = ◻ τ
