Assume that f is a one-to-one function. (a) If f(2) = 14, what is f−1(14)? (b) If f−1(1) = 8, what is f(8)?

Assume that f is a one-to-one function. (a) If f(2) = 14, what is f−1(14)? (b) If f−1(1) = 8, what is f(8)?

Image text
Assume that f is a one-to-one function. (a) If f ( 2 ) = 14 , what is f − 1 ( 14 ) ? ◻ (b) If f − 1 ( 1 ) = 8 , what is f ( 8 ) ? ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

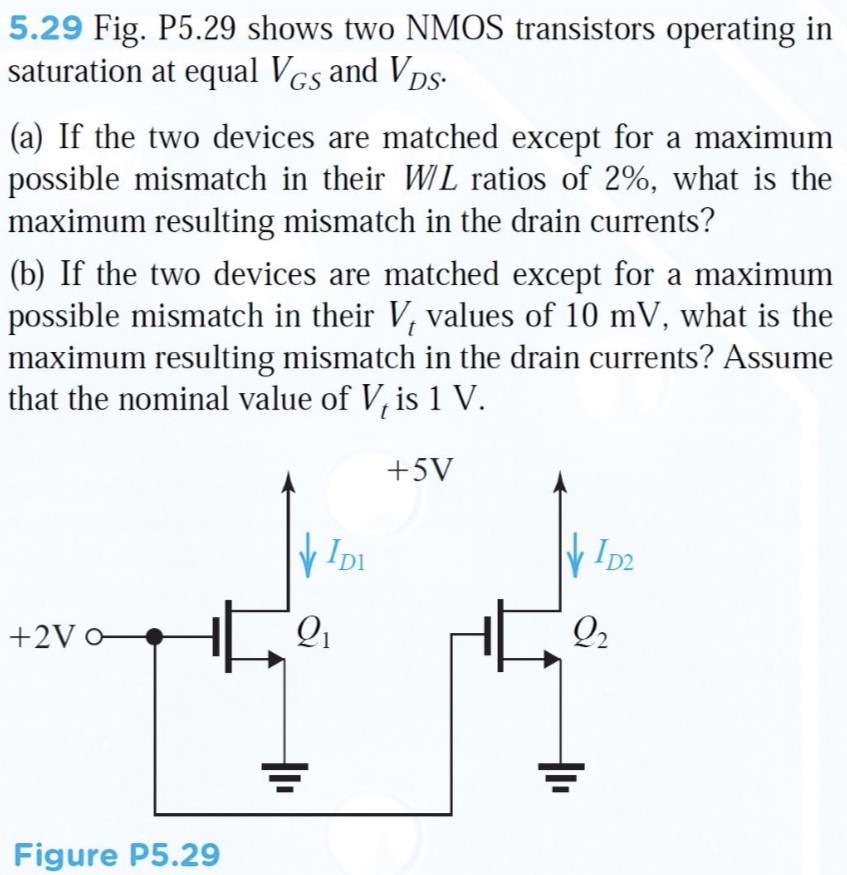

5.29 Fig. P5.29 shows two NMOS transistors operating in saturation at equal VGS and VDS. (a) If the two devices are matched except for a maximum possible mismatch in their W/L ratios of 2%, what is the maximum resulting mismatch in the drain currents? (b) If the two devices are matched except for a maximum possible mismatch in their Vt values of 10 mV, what is the maximum resulting mismatch in the drain currents? Assume that the nominal value of Vt is 1 V. Figure P5.29
Solution
0 0

Let us consider a NAND logic gate. This circuit implements the boolean function (A.B). The . stands for the AND operation, and the - stands for NOT; combining them, we get NAND! Figure 1: NAND gate transistor-level implementation. Vtn and Vtp are the threshold voltages for the NMOS and PMOS transistors, respectively. Assume that VDD > Vtn, |Vtp| > 0. (a) Label the gate, source, and drain nodes for the NMOS and PMOS transistors (please redraw the circuit). (b) If VA = VDD and VB = VDD, which transistors act like open switches? Which transistors act like closed switches? What is Vout? (c) If VA = 0V and VB = VDD, what is Vout? (d) If VA = VDD and VB = 0V, what is Vout? (e) If VA = 0V and VB = 0V, what is Vout? (f) Write out the truth table for this circuit.

Let us consider a NAND logic gate. This circuit implements the boolean function (A.B). The . stands for the AND operation, and the - stands for NOT; combining them, we get NAND! Figure 1: NAND gate transistor-level implementation. Vtn and Vtp are the threshold voltages for the NMOS and PMOS transistors, respectively. Assume that VDD > Vtn, |Vtp| > 0. (a) Label the gate, source, and drain nodes for the NMOS and PMOS transistors (please redraw the circuit). (b) If VA = VDD and VB = VDD, which transistors act like open switches? Which transistors act like closed switches? What is Vout? (c) If VA = 0V and VB = VDD, what is Vout? (d) If VA = VDD and VB = 0V, what is Vout? (e) If VA = 0V and VB = 0V, what is Vout? (f) Write out the truth table for this circuit.
Solution
1 0

Assume that ID5 = 100 μA, all transistors lengths are 1.2 μm, and CC = 10 pF. For the two-stage op amp shown above, (a) Estimate the -3 dB frequency of the first stage. (10%) (b) Estimate the unit-gain frequency of the opamp. (5%) (c) Find the slew rate. (5%) (d) What circuit changes could be made to double the slew rate but keep unity-gain frequency and CC unchanged? (Assume all channel lengths are fixed) (5%) (e) Follow (d), how should M6 change to maintain zero systematic offset voltage? (54%) (f) Follow (d) and (e), ignoring the body effect, what is the output voltage range of the opamp? What is the range of common-mode input voltage, assuming ±2.5 V power supplies are used? (10%) [Two-Stage CMOS Op Amp + Output Stage] *n-channel MOS transistors: μnCox = 92 μA/V2; Vtn = 0.8 V; ro = 8,000L (μm)/ID(mA) in saturation region * p-channel MOS transistors: μpCox = 30 μA/V2; Vtp = -0.9 V; ro = 12,000L (μm)/ID(mA) in saturation region

Solution
