What is the orientation of the hydrostratic force on a planar surface? How does the orientation and magnitude of the hydrostatic force change if the submerged surface is rotated 90∘ about its centroid? Consider the submerged body below. Sketch the pressure distribution around the entire surface of the body.

What is the orientation of the hydrostratic force on a planar surface? How does the orientation and magnitude of the hydrostatic force change if the submerged surface is rotated 90∘ about its centroid? Consider the submerged body below. Sketch the pressure distribution around the entire surface of the body.

Image text
  1. What is the orientation of the hydrostratic force on a planar surface? How does the orientation and magnitude of the hydrostatic force change if the submerged surface is rotated 90 ∘ about its centroid?

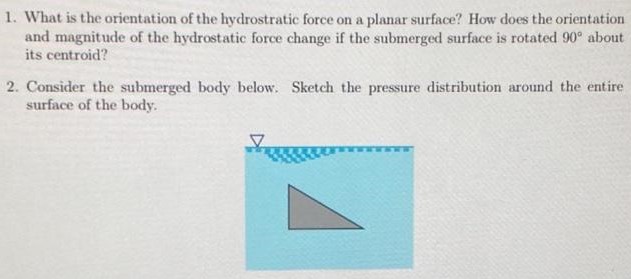

  2. Consider the submerged body below. Sketch the pressure distribution around the entire surface of the body.
