Question

Notify Me Bookmark

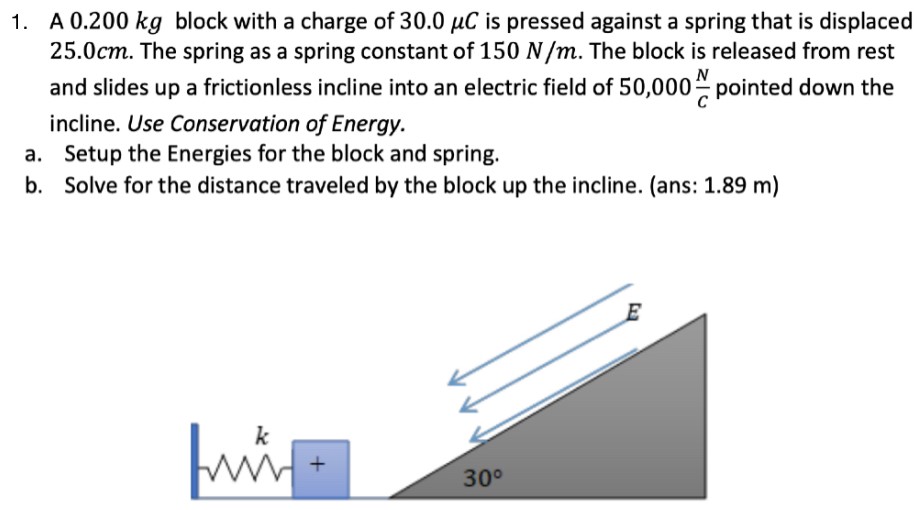

A 0.200 kg block with a charge of 30.0 μC is pressed against a spring that is displaced 25.0 cm. The spring as a spring constant of 150 N/m. The block is released from rest and slides up a frictionless incline into an electric field of 50, 000 N/C pointed down the incline. Use Conservation of Energy. a. Setup the Energies for the block and spring. b. Solve for the distance traveled by the block up the incline. (ans: 1.89 m)

A 0.200 kg block with a charge of 30.0 μC is pressed against a spring that is displaced 25.0 cm. The spring as a spring constant of 150 N/m. The block is released from rest and slides up a frictionless incline into an electric field of 50, 000 N/C pointed down the incline. Use Conservation of Energy. a. Setup the Energies for the block and spring. b. Solve for the distance traveled by the block up the incline. (ans: 1.89 m)

Image text
  1. A 0.200 kg block with a charge of 30.0 μ C is pressed against a spring that is displaced 25.0 cm . The spring as a spring constant of 150 N / m . The block is released from rest and slides up a frictionless incline into an electric field of 50,000 N C pointed down the incline. Use Conservation of Energy. a. Setup the Energies for the block and spring. b. Solve for the distance traveled by the block up the incline. (ans: 1.89 m )

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Kinetic and spring potential energy problem: A block (m = 5.0 kg) is pushed against a spring that is compressed a distance of x = 10.0 cm. The block is then released and travels up a frictionless inclined surface see the figure. a. How much potential energy is stored in the spring? b. After the block leaves the spring, what is the kinetic energy of the spring, c. Find the velocity of the block right after the block leaves the spring d. Find the maximum height of h of the block if the spring constant k = 100 N/m.
Solution
0 0

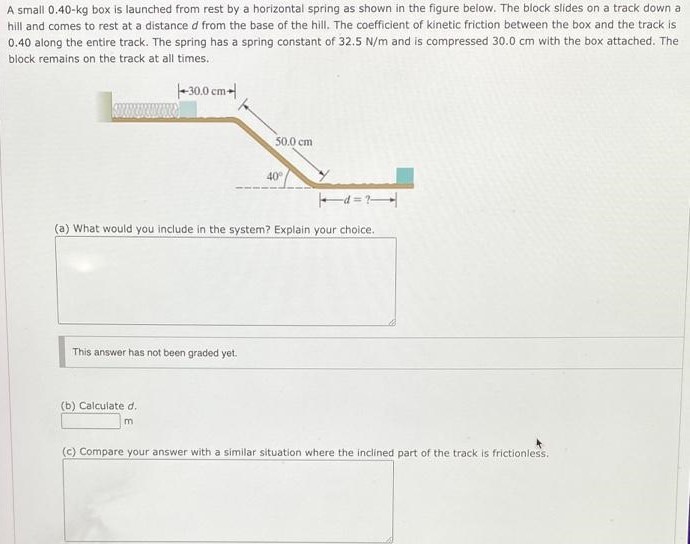

A small 0.40−kg box is launched from rest by a horizontal spring as shown in the figure below. The block slides on a track down a hill and comes to rest at a distance d from the base of the hill. The coefficient of kinetic friction between the box and the track is 0.40 along the entire track. The spring has a spring constant of 32.5 N/m and is compressed 30.0 cm with the box attached. The block remains on the track at all times. (a) What would you include in the system? Explain your choice. This answer has not been graded yet. (b) Calculate d. m (c) Compare your answer with a similar situation where the inclined part of the track is frictionless.
Solution
0 0

A 4.30 kg block is released from point A in the figure below. The track is frictionless except for the portion between points B and C, which has a length of 6.00 m. The block travels down the track, hits a spring (with a spring constant of 2210 N/m ), and compresses the spring 19 cm from its equilibrium position before coming to rest momentarily. a. What is the potential energy of the system at point A? (2) b. What is the potential energy stored in the spring when it is compressed by 19 cm? (2) c. How much non-conservative work was done by the system? (2) d. Determine the coefficient of kinetic friction, μk, between the block and the rough surface. (3) e. What happened to the lost mechanical energy? (1) (B) (c)
Solution
0 0
