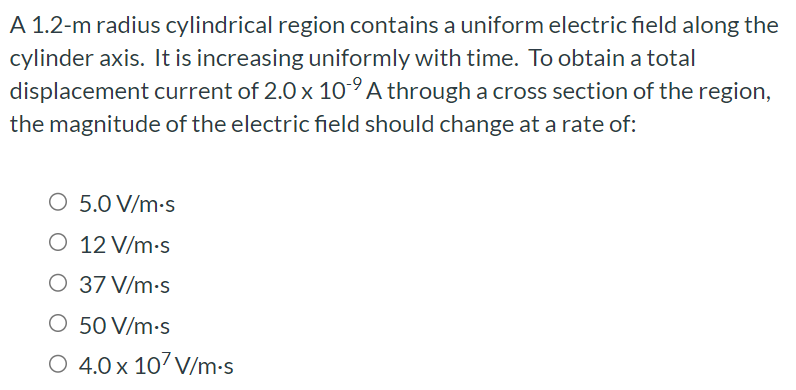

A 1.2-m radius cylindrical region contains a uniform electric field along the cylinder axis. It is increasing uniformly with time. To obtain a total displacement current of 2.0×10−9 A through a cross section of the region, the magnitude of the electric field should change at a rate of: 5.0 V/m. s 12 V/m⋅s 37 V/m⋅s 50 V/m⋅s 4.0×107 V/m⋅s

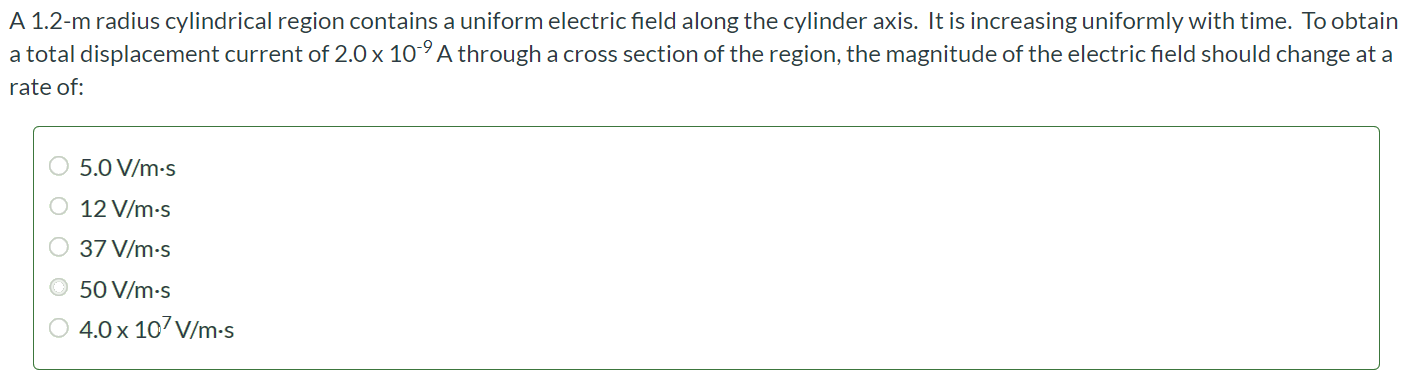

A 1.2-m radius cylindrical region contains a uniform electric field along the cylinder axis. It is increasing uniformly with time. To obtain a total displacement current of 2.0×10−9 A through a cross section of the region, the magnitude of the electric field should change at a rate of: 5.0 V/m. s 12 V/m⋅s 37 V/m⋅s 50 V/m⋅s 4.0×107 V/m⋅s

Image text
A 1.2-m radius cylindrical region contains a uniform electric field along the cylinder axis. It is increasing uniformly with time. To obtain a total displacement current of 2.0 × 10 − 9 A through a cross section of the region, the magnitude of the electric field should change at a rate of: 5.0 V/m.s 12 V / m ⋅ s 37 V / m ⋅ s 50 V / m ⋅ s 4.0 × 10 7 V / m ⋅ s
