A 13.1-Ω resistor, a 9.57−μF capacitor, and a 15.2-mH inductor are connected in series with a 135−V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise. (a) Number Units (b) Number Units

A 13.1-Ω resistor, a 9.57−μF capacitor, and a 15.2-mH inductor are connected in series with a 135−V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise. (a) Number Units (b) Number Units

Image text
A 13.1- Ω resistor, a 9.57 − μ F capacitor, and a 15.2- mH inductor are connected in series with a 135 − V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise. (a) Number i Units ◻ (b) Number i Units ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

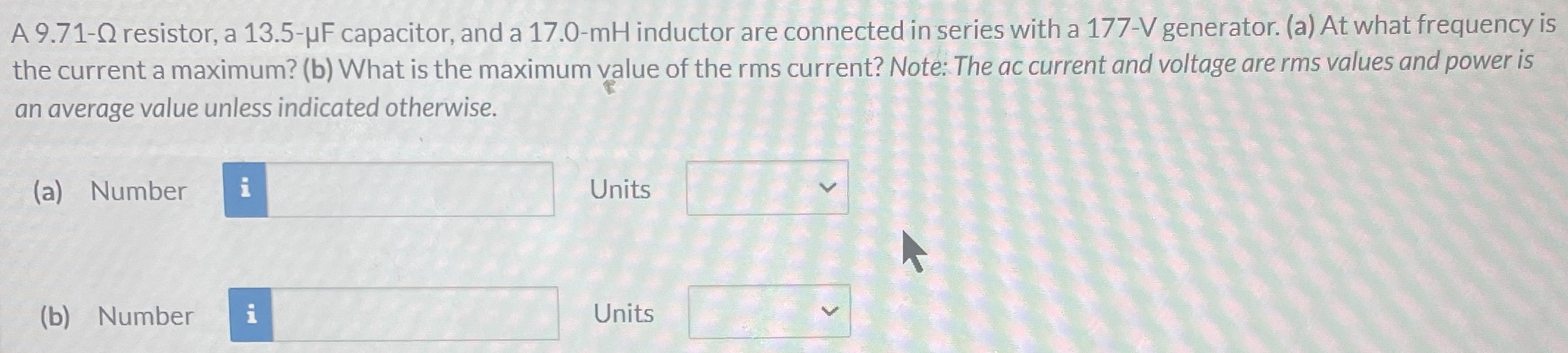

A 9.71-Ω resistor, a 13.5−μF capacitor, and a 17.0-mH inductor are connected in series with a 177−V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise. (a) Number Units (b) Number Units
