A 2000 kg sport car in Figure Q2 (b) accelerates at 6 m/s2 starting from rest. The drag resistance on the car due to the wind is FD = (10 v)N, where v is the velocity in m/s. The running efficiency of the engine is ε = 0.66. Determine the power supplied by the engine when t = 5 s. (8 marks) Figure Q2 (b)

A 2000 kg sport car in Figure Q2 (b) accelerates at 6 m/s2 starting from rest. The drag resistance on the car due to the wind is FD = (10 v)N, where v is the velocity in m/s. The running efficiency of the engine is ε = 0.66. Determine the power supplied by the engine when t = 5 s. (8 marks) Figure Q2 (b)

Image text
A 2000 kg sport car in Figure Q2 (b) accelerates at 6 m / s 2 starting from rest. The drag resistance on the car due to the wind is F D = ( 10 v ) N , where v is the velocity in m / s . The running efficiency of the engine is ε = 0.66 . Determine the power supplied by the engine when t = 5 s . (8 marks)
Figure Q2 (b)

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

To improve the performance of the differential amplifier shown in Figure Q1, the biasing current source is replaced by a Widlar current source. The collector resistors are replaced by a current mirror formed by the matched bipolar transistors Qs and Q6, and the bipolar transistors Q1 and Q2 are replaced by the matched field-effect transistors M1 and M2. A single-sided output at the drain terminal of M2 is used. The transistor parameters for the bipolar transistors are: β = 100, VBE (on) = VEB(on) = 0.7 V, and VA = 100 V. The transistor parameters for M1 and M2 are: Kn = 0.15 mA/V2, VT N = 0.8 V, λ = 0.01 V-1 . The improved differential amplifier is shown in Figure Q2. (a) Determine the quiescent voltages and currents of M1 and M2 when v1 = v2 = 0. (4 marks) (b) Design the value of resistor RE such that IQ = 0.1 mA. (2 marks) (c) Determine the maximum and minimum common-mode voltages that can be applied to v1 and v2. (3 marks) (d) Determine the percentage change in IQ when the common-mode voltage applied to v1 and v2 changes from the maximum to the minimum value obtained in part (c). (5 marks) (c) Define vd = v1 - v2, determine the differential-mode voltage gain Ad of the improved differential amplifier.
Solution
0 0

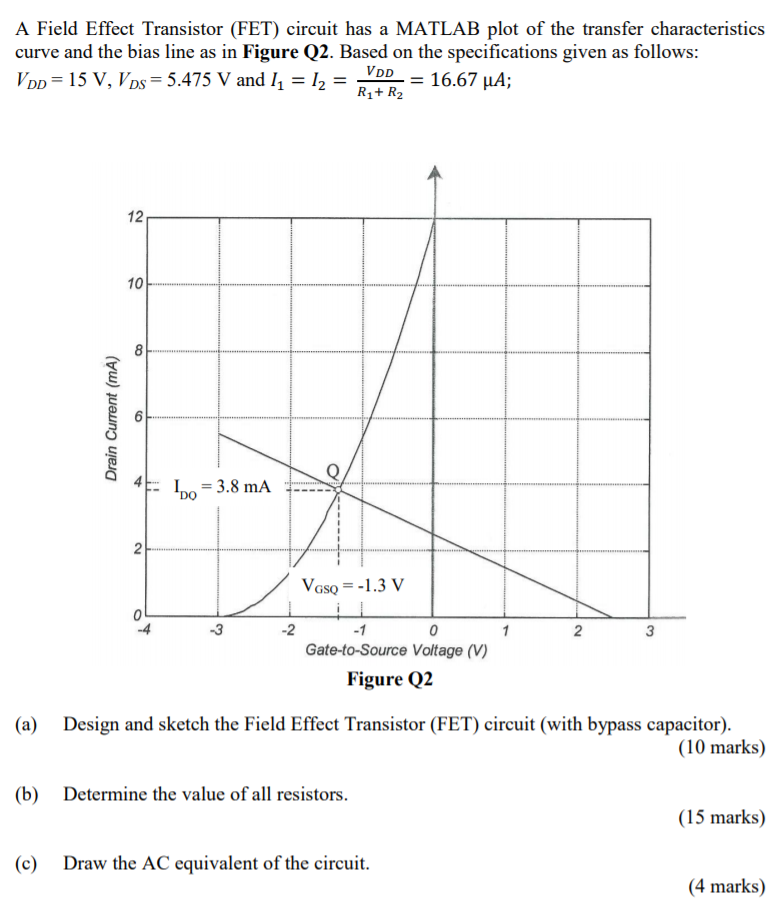

A Field Effect Transistor (FET) circuit has a MATLAB plot of the transfer characteristics curve and the bias line as in Figure Q2. Based on the specifications given as follows: VDD = 15 V, VDS = 5.475 V and I1 = I2 = VDD R1+R2 = 16.67 μA; Figure Q2 (a) Design and sketch the Field Effect Transistor (FET) circuit (with bypass capacitor). (10 marks) (b) Determine the value of all resistors. (15 marks) (c) Draw the AC equivalent of the circuit. (4 marks)
