A 5.00 kg block is placed on top of a 10.0 kg block (Fig. above). A horizontal force of 45.0 N is applied to the 10 kg block, and the 5.00 kg block is tied to the wall. The coefficient of kinetic friction between all moving surfaces is 0.200 . (a) Draw a free-body diagram for each block and identify the action reaction forces between the blocks. (b) Determine the tension in the string and the magnitude of the acceleration of the 10.0 kg block.

A 5.00 kg block is placed on top of a 10.0 kg block (Fig. above). A horizontal force of 45.0 N is applied to the 10 kg block, and the 5.00 kg block is tied to the wall. The coefficient of kinetic friction between all moving surfaces is 0.200 . (a) Draw a free-body diagram for each block and identify the action reaction forces between the blocks. (b) Determine the tension in the string and the magnitude of the acceleration of the 10.0 kg block.

Image text

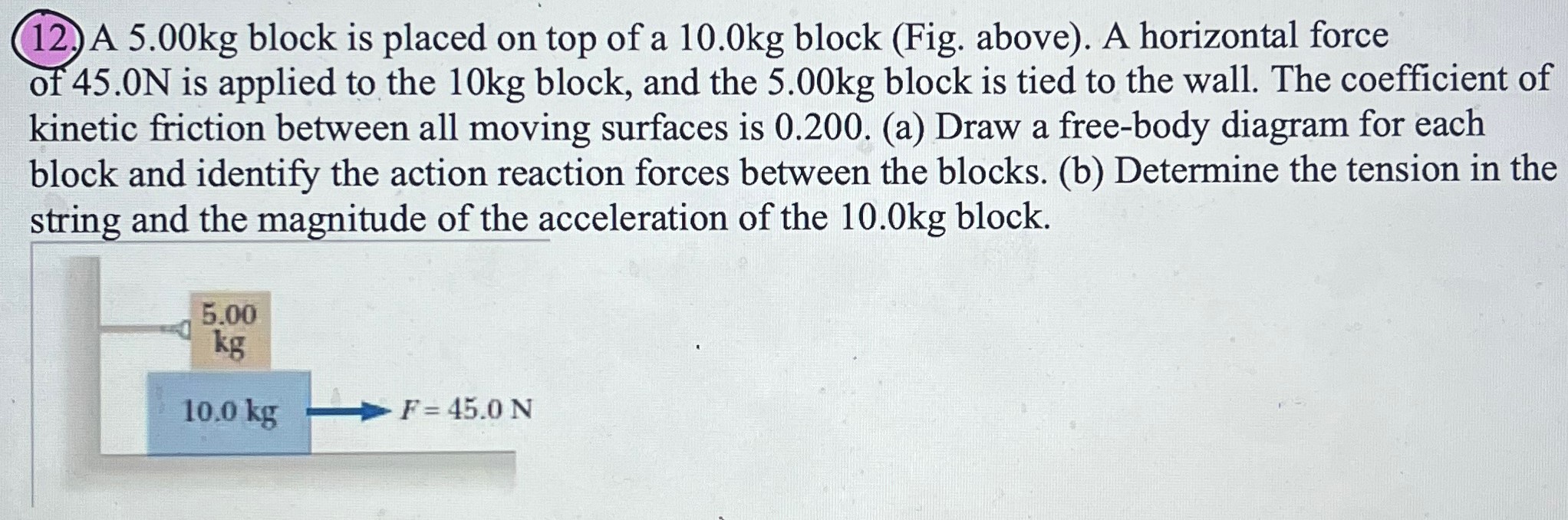

(12.) A 5.00 k g block is placed on top of a 10.0 k g block (Fig. above). A horizontal force of 45.0 N is applied to the 10 k g block, and the 5.00 k g block is tied to the wall. The coefficient of kinetic friction between all moving surfaces is 0.200 . (a) Draw a free-body diagram for each block and identify the action reaction forces between the blocks. (b) Determine the tension in the string and the magnitude of the acceleration of the 10.0 k g block.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

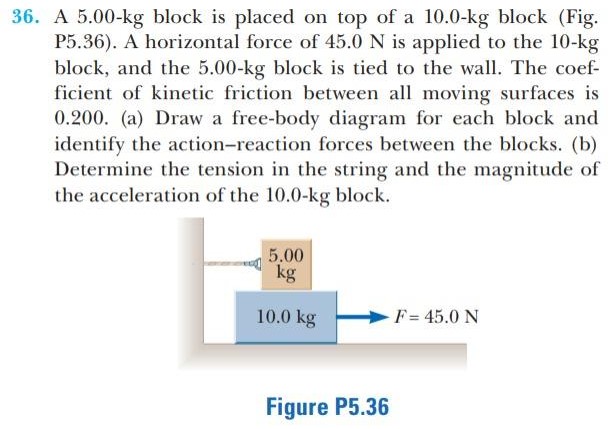

A 5.00−kg block is placed on top of a 10.0−kg block (Fig. P5.36). A horizontal force of 45.0 N is applied to the 10−kg block, and the 5.00−kg block is tied to the wall. The coefficient of kinetic friction between all moving surfaces is 0.200. (a) Draw a free-body diagram for each block and identify the action-reaction forces between the blocks. (b) Determine the tension in the string and the magnitude of the acceleration of the 10.0−kg block. Figure P5.36
Solution
0 0

A block of mass m sits on top of a slab of mass 4 m. The slab rests on a frictionless floor. The coefficient of static friction between the slab and the block is 0.60 whereas the coefficient of kinetic friction is 0.40 . The block is now pulled by a horizontal force of magnitude F to the left. (a) It is observed that the blocks move together as a system. In this case, is the friction between the contact surfaces of the block and the slab static friction or kinetic friction? Justify. (b) If m = 10 kg, what is the maximum value of the applied horizontal force, F for which the slab and the block move together as a system? (c) If the applied horizontal force is increased beyond the value you determined in part (b), describe what would be the change, if any, in the motion of the block and slab. Explain. (d) For F = 100 N, what would be the accelerations of the slab and the block individually if you expect them to be different?
Solution
0 0

Consider two blocks M1 on top of M2 on a level table. There is no friction between block M2 and the table, but there is friction between block M1 and block M2. Denote the coefficients of static and kinetic friction between the blocks as μs and μk, respectively. The applied force F is applied to block M1 at an angle θ below the horizontal. The blocks start from rest. First, we will consider the situation where F is small enough that the two blocks stick together. (a) Draw free-body diagrams for the two masses. Be sure to label all forces and the direction of the accelerations. Also be sure to define an appropriate coordinate system for each free-body diagram. (b) Write down the Newton's second law equations for each block and each dimension (x and y). (c) Write down an inequality relating the force of friction and the normal force. (d) Identify the two Newton's third law pairs - i. e. the pairs of forces between the two blocks that are equal and opposite. (e) Find the acceleration of the blocks as a function of F, θ, M1, M2, g, μs, and μk. (You don't have to use all of these, but you will use at most these. ) (f) Find a condition on F such that the blocks stick together. i. e. Write an inequality in the form F ≤ Fmax for the blocks to stick together where Fmax is in terms of θ, M1, M2, g, μs, and μk.
Solution
0 0
