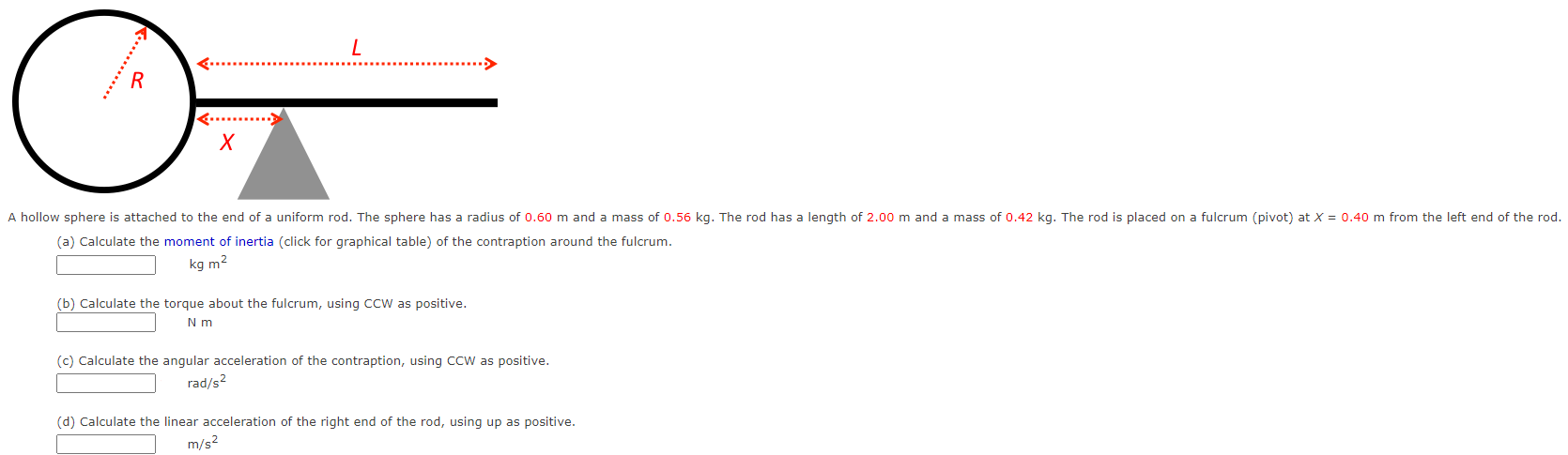

(a) Calculate the moment of inertia (click for graphical table) of the contraption around the fulcrum. kgm2 (b) Calculate the torque about the fulcrum, using CCW as positive. Nm (c) Calculate the angular acceleration of the contraption, using CCW as positive. rad/s2 (d) Calculate the linear acceleration of the right end of the rod, using up as positive. m/s2

(a) Calculate the moment of inertia (click for graphical table) of the contraption around the fulcrum. kgm2 (b) Calculate the torque about the fulcrum, using CCW as positive. Nm (c) Calculate the angular acceleration of the contraption, using CCW as positive. rad/s2 (d) Calculate the linear acceleration of the right end of the rod, using up as positive. m/s2

Image text
(a) Calculate the moment of inertia (click for graphical table) of the contraption around the fulcrum. ◻ k g m 2 (b) Calculate the torque about the fulcrum, using CCW as positive. N m (c) Calculate the angular acceleration of the contraption, using CCW as positive.
r a d / s 2
(d) Calculate the linear acceleration of the right end of the rod, using up as positive. ◻
m / s 2
