A certain voltmeter has an internal resistance of 10, 000 Ω and a range from 0 to 100 V. To give it a range from 0 to 1000 V, one should connect: 100, 000 Ω in series 100, 000 Ω in parallel 1000 Ω in series 1000 Ω in parallel 90, 000 Ω in series

A certain voltmeter has an internal resistance of 10, 000 Ω and a range from 0 to 100 V. To give it a range from 0 to 1000 V, one should connect: 100, 000 Ω in series 100, 000 Ω in parallel 1000 Ω in series 1000 Ω in parallel 90, 000 Ω in series

Image text
A certain voltmeter has an internal resistance of 10 , 000 Ω and a range from 0 to 100 V . To give it a range from 0 to 1000 V , one should connect: 100 , 000 Ω in series 100 , 000 Ω in parallel 1000 Ω in series 1000 Ω in parallel 90 , 000 Ω in series

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

A certain voltmeter has an internal resistance of 10,000 ohm and a range from 0 to 100 V. To give it a range from 0 to 1000 V, one should connect: Select one a. 90,000 ohm in series b. 1000 ohm in series c. 1000 ohm in parallel d. 100,000 ohm in series e. 100,000 ohm in parallel.

Solution
0 0

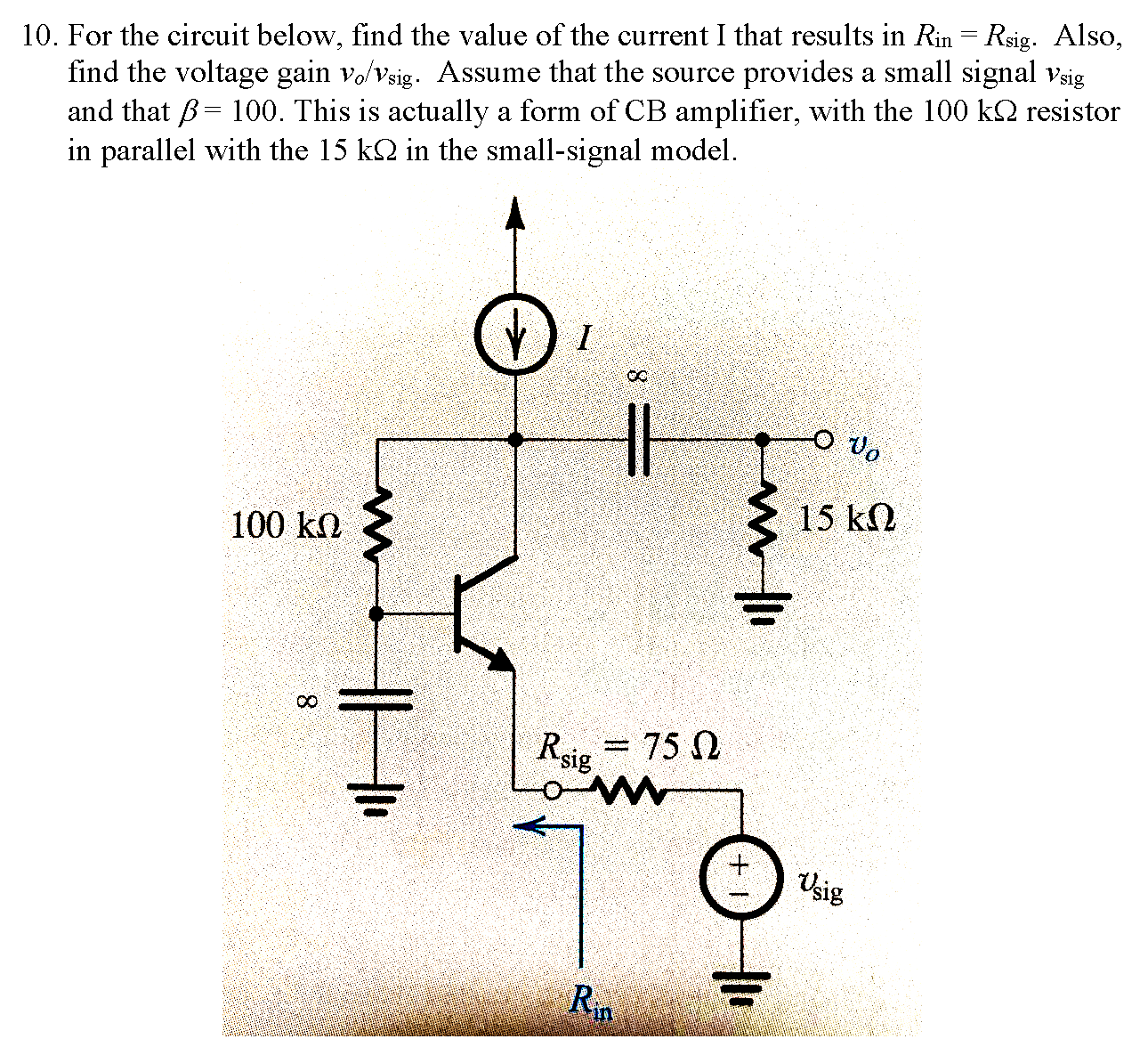

For the circuit below, find the value of the current I that results in Rin = Rsig. . Also, find the voltage gain vo/vsig . Assume that the source provides a small signal vsig and that β = 100. This is actually a form of CB amplifier, with the 100 kΩ resistor in parallel with the 15 kΩ in the small-signal model.
Solution
0 0

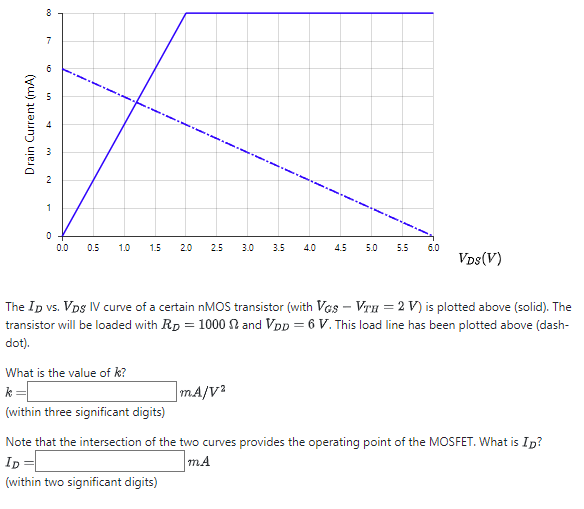

The ID vs. VDS IV curve of a certain nMOS transistor (with VGS – VTH = 2 V ) is plotted above (solid). The transistor will be loaded with RD = 1000 Ω and VDD = 6 V. This load line has been plotted above (dash-dot). What is the value of k? Note that the intersection of the two curves provides the operating point of the MOSFET. What is ID?
