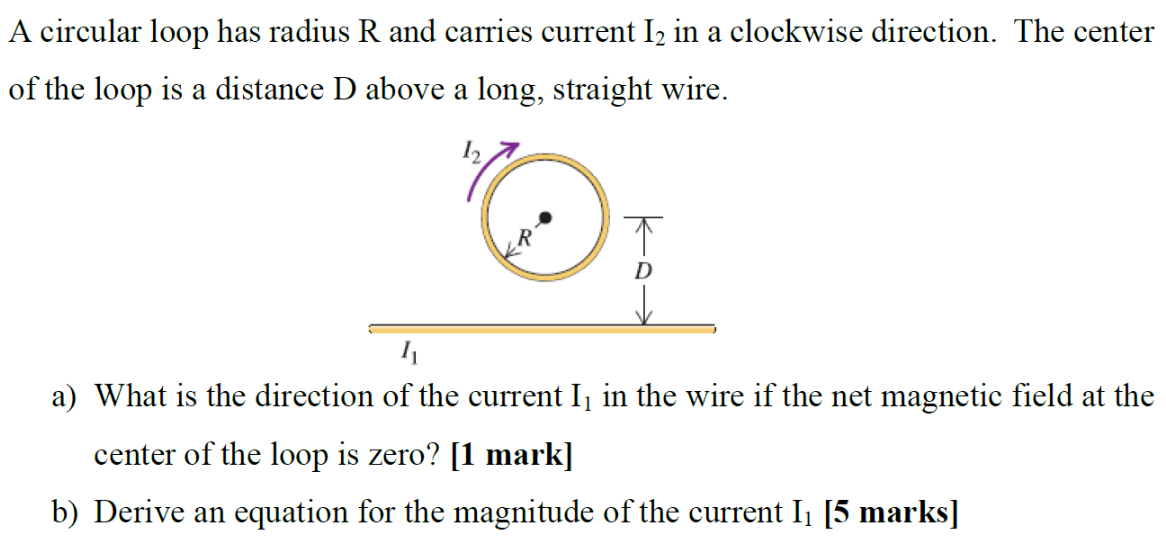

A circular loop has radius R and carries current I2 in a clockwise direction. The center of the loop is a distance D above a long, straight wire. a) What is the direction of the current I1 in the wire if the net magnetic field at the center of the loop is zero? [1 mark] b) Derive an equation for the magnitude of the current I1 [5 marks]

A circular loop has radius R and carries current I2 in a clockwise direction. The center of the loop is a distance D above a long, straight wire. a) What is the direction of the current I1 in the wire if the net magnetic field at the center of the loop is zero? [1 mark] b) Derive an equation for the magnitude of the current I1 [5 marks]

Image text
A circular loop has radius R and carries current I 2 in a clockwise direction. The center of the loop is a distance D above a long, straight wire. a) What is the direction of the current I 1 in the wire if the net magnetic field at the center of the loop is zero? [1 mark] b) Derive an equation for the magnitude of the current I 1 [ 5 marks]

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

A uniform electric field is directed axially in a cylindrical region that includes a rectangular loop of wire with total resistance R. This loop has radially oriented width a and axially oriented length b, and sits tight against the cylinder axis, as shown in (Figure 1). The electric field is zero at time t = 0 and then increases in time according to E→ = ηt2k^, where η is a constant with units of V/(m⋅s2). Figure 1 of 1 Part A What is the magnitude of the displacement current through a circular loop centered on the cylinder axis with radius r ≤ a, at time t ? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part B Use Ampere's law to determine the magnitude of the magnetic field a distance r ≤ a from the cylinder axis at time t. Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part C What is the magnetic flux at time t through the rectangular wire loop? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part D What magnitude of current flows in the wire? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part E Does the current flow clockwise or counterclockwise from the perspective shown in the figure? clockwise counterclockwise Submit Request AnswerA uniform electric field is directed axially in a cylindrical region that includes a rectangular loop of wire with total resistance R. This loop has radially oriented width a and axially oriented length b, and sits tight against the cylinder axis, as shown in (Figure 1). The electric field is zero at time t = 0 and then increases in time according to E→ = ηt2k^, where η is a constant with units of V/(m⋅s2). Figure 1 of 1 Part A What is the magnitude of the displacement current through a circular loop centered on the cylinder axis with radius r ≤ a, at time t ? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part B Use Ampere's law to determine the magnitude of the magnetic field a distance r ≤ a from the cylinder axis at time t. Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part C What is the magnetic flux at time t through the rectangular wire loop? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part D What magnitude of current flows in the wire? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part E Does the current flow clockwise or counterclockwise from the perspective shown in the figure? clockwise counterclockwise Submit Request AnswerA uniform electric field is directed axially in a cylindrical region that includes a rectangular loop of wire with total resistance R. This loop has radially oriented width a and axially oriented length b, and sits tight against the cylinder axis, as shown in (Figure 1). The electric field is zero at time t = 0 and then increases in time according to E→ = ηt2k^, where η is a constant with units of V/(m⋅s2). Figure 1 of 1 Part A What is the magnitude of the displacement current through a circular loop centered on the cylinder axis with radius r ≤ a, at time t ? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part B Use Ampere's law to determine the magnitude of the magnetic field a distance r ≤ a from the cylinder axis at time t. Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part C What is the magnetic flux at time t through the rectangular wire loop? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part D What magnitude of current flows in the wire? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part E Does the current flow clockwise or counterclockwise from the perspective shown in the figure? clockwise counterclockwise Submit Request AnswerA uniform electric field is directed axially in a cylindrical region that includes a rectangular loop of wire with total resistance R. This loop has radially oriented width a and axially oriented length b, and sits tight against the cylinder axis, as shown in (Figure 1). The electric field is zero at time t = 0 and then increases in time according to E→ = ηt2k^, where η is a constant with units of V/(m⋅s2). Figure 1 of 1 Part A What is the magnitude of the displacement current through a circular loop centered on the cylinder axis with radius r ≤ a, at time t ? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part B Use Ampere's law to determine the magnitude of the magnetic field a distance r ≤ a from the cylinder axis at time t. Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part C What is the magnetic flux at time t through the rectangular wire loop? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Submit Request Answer Part D What magnitude of current flows in the wire? Express your answer in terms of some or all of the variables R, a, b, r, t, and constants η, ϵ0, μ0, π. Part E Does the current flow clockwise or counterclockwise from the perspective shown in the figure? clockwise counterclockwise Submit Request Answer
Solution
3 0

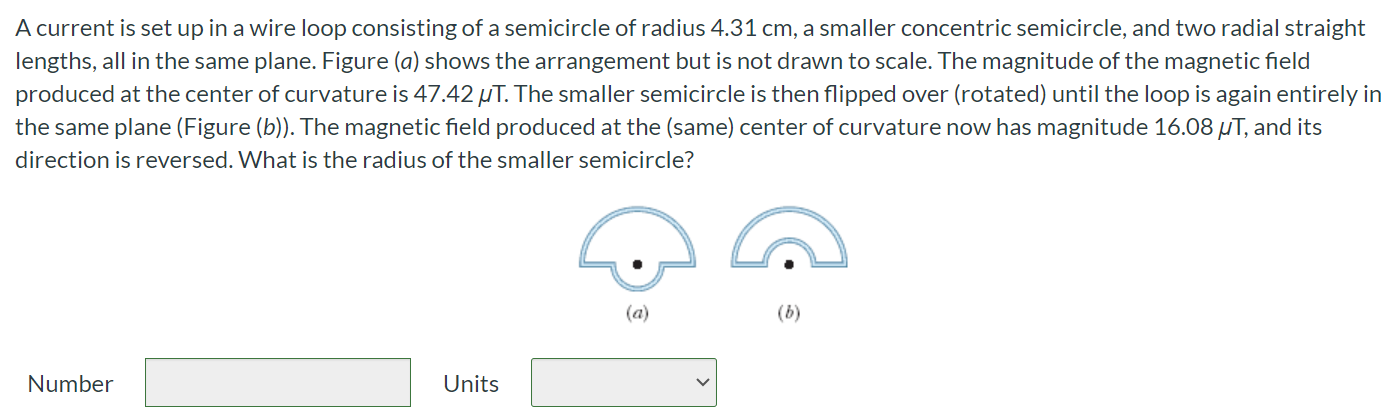

A current is set up in a wire loop consisting of a semicircle of radius 4.31 cm, a smaller concentric semicircle, and two radial straight lengths, all in the same plane. Figure (a) shows the arrangement but is not drawn to scale. The magnitude of the magnetic field produced at the center of curvature is 47.42 μT. The smaller semicircle is then flipped over (rotated) until the loop is again entirely in the same plane (Figure (b)). The magnetic field produced at the (same) center of curvature now has magnitude 16.08μT, and its direction is reversed. What is the radius of the smaller semicircle? Number Units
