A conductor consists of a circular loop of radius R = 20 cm and two straight, long sections as shown in figure. The wire lies in the plane of the paper and carries a current of i = 7.0 A. The magnitude of the magnetic field at the centre of the loop is: 1.93×10^−5 T 5.8×10^−5 T none of these 2.9×10^−5 T 2.5×10^−5 T

A conductor consists of a circular loop of radius R = 20 cm and two straight, long sections as shown in figure. The wire lies in the plane of the paper and carries a current of i = 7.0 A. The magnitude of the magnetic field at the centre of the loop is: 1.93×10^−5 T 5.8×10^−5 T none of these 2.9×10^−5 T 2.5×10^−5 T

Image text
A conductor consists of a circular loop of radius R = 2 0 c m and two straight, long sections as shown in figure. The wire lies in the plane of the paper and carries a current of i = 7.0 A . The magnitude of the magnetic field at the centre of the loop is: 1.93 × 10 ∧ − 5 T 5.8 × 10 ∧ − 5 T none of these 2.9 × 10 ∧ − 5 T 2.5 × 10 ∧ − 5 T

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

In Figure (a), wire 1 consists of a circular arc and two radial lengths; it carries current i1 = 0.700 A in the direction indicated. Wire 2, shown in cross section, is long, straight, and perpendicular to the plane of the figure. Its distance from the center of the arc is equal to the radius R of the arc, and it carries a current i2 that can be varied. The two currents set up a net magnetic field B⃗ at the center of the arc. Figure (b) gives the square of the field's magnitude B 2 plotted versus the square of the current i2 2 . The vertical scale is set by Bs 2 = 10.9 × 10-10 T 2 . What angle is subtended by the arc? Number Units
Solution
0 0

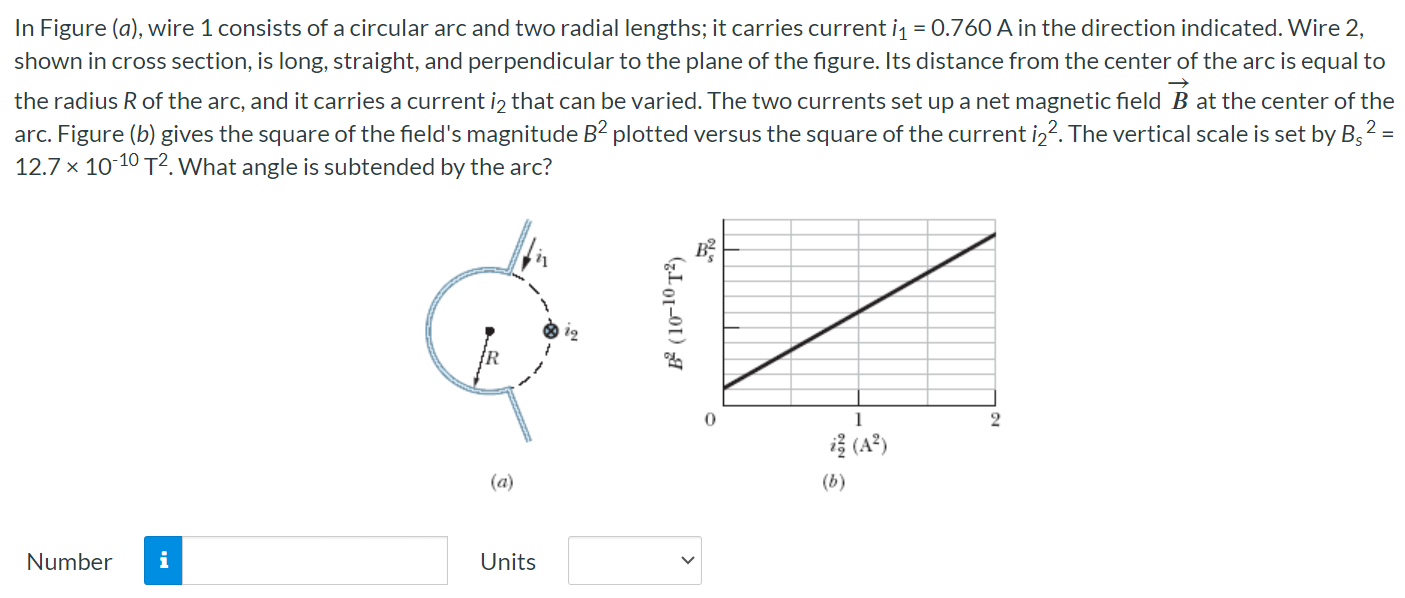

In Figure (a), wire 1 consists of a circular arc and two radial lengths; it carries current i1 = 0.760 A in the direction indicated. Wire 2 , shown in cross section, is long, straight, and perpendicular to the plane of the figure. Its distance from the center of the arc is equal to the radius R of the arc, and it carries a current i2 that can be varied. The two currents set up a net magnetic field B→ at the center of the arc. Figure (b) gives the square of the field's magnitude B2 plotted versus the square of the current i22. The vertical scale is set by Bs2 = 12.7×10−10 T2. What angle is subtended by the arc? (a) (b) Number Units
