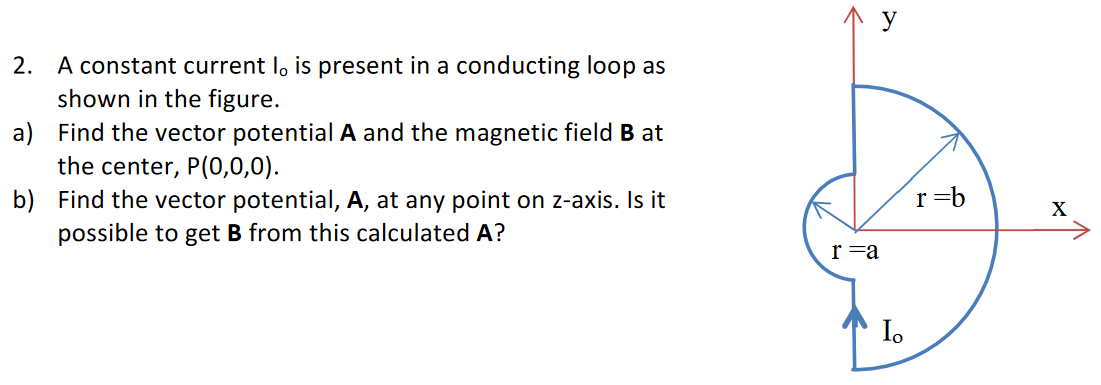

A constant current I0 is present in a conducting loop as shown in the figure. a) Find the vector potential A and the magnetic field B at the center, P(0, 0, 0). b) Find the vector potential, A, at any point on z-axis. Is it possible to get B from this calculated A?
