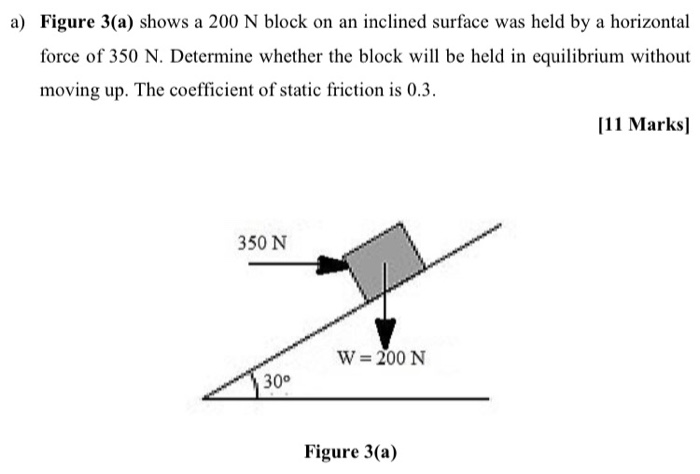

a) Figure 3(a) shows a 200 N block on an inclined surface was held by a horizontal force of 350 N. Determine whether the block will be held in equilibrium without moving up. The coefficient of static friction is 0.3. [11 Marks] Figure 3(a)

a) Figure 3(a) shows a 200 N block on an inclined surface was held by a horizontal force of 350 N. Determine whether the block will be held in equilibrium without moving up. The coefficient of static friction is 0.3. [11 Marks] Figure 3(a)

Image text
a) Figure 3(a) shows a 200 N block on an inclined surface was held by a horizontal force of 350 N . Determine whether the block will be held in equilibrium without moving up. The coefficient of static friction is 0.3 . [11 Marks] Figure 3(a)
