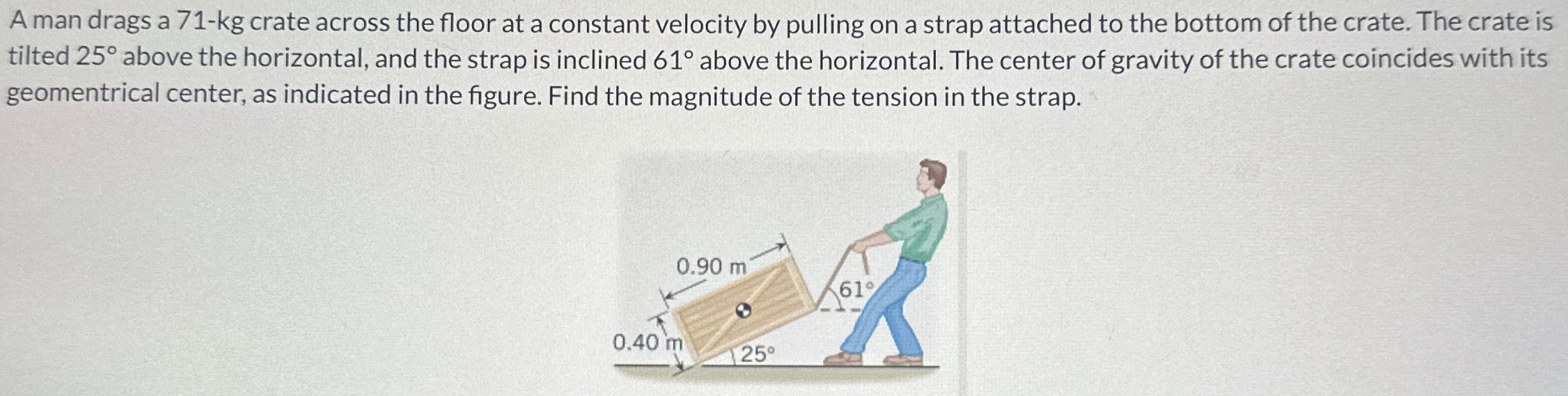

A man drags a 71-kg crate across the floor at a constant velocity by pulling on a strap attached to the bottom of the crate. The crate is tilted 25∘ above the horizontal, and the strap is inclined 61∘ above the horizontal. The center of gravity of the crate coincides with its geomentrical center, as indicated in the figure. Find the magnitude of the tension in the strap.

A man drags a 71-kg crate across the floor at a constant velocity by pulling on a strap attached to the bottom of the crate. The crate is tilted 25∘ above the horizontal, and the strap is inclined 61∘ above the horizontal. The center of gravity of the crate coincides with its geomentrical center, as indicated in the figure. Find the magnitude of the tension in the strap.

Image text
A man drags a 71-kg crate across the floor at a constant velocity by pulling on a strap attached to the bottom of the crate. The crate is tilted 25 ∘ above the horizontal, and the strap is inclined 61 ∘ above the horizontal. The center of gravity of the crate coincides with its geomentrical center, as indicated in the figure. Find the magnitude of the tension in the strap.

Detailed Answer
