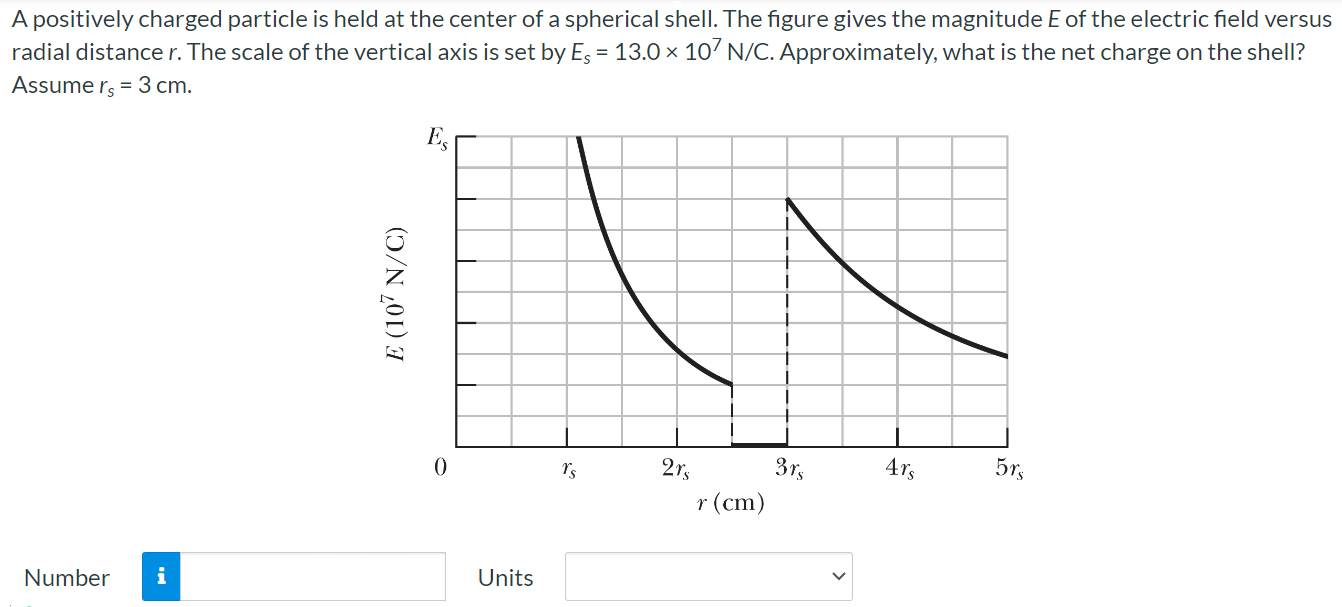

A positively charged particle is held at the center of a spherical shell. The figure gives the magnitude E of the electric field versus radial distance r. The scale of the vertical axis is set by Es = 13.0×107 N/C. Approximately, what is the net charge on the shell? Assume rs = 3 cm. Number Units

A positively charged particle is held at the center of a spherical shell. The figure gives the magnitude E of the electric field versus radial distance r. The scale of the vertical axis is set by Es = 13.0×107 N/C. Approximately, what is the net charge on the shell? Assume rs = 3 cm. Number Units

Image text
A positively charged particle is held at the center of a spherical shell. The figure gives the magnitude E of the electric field versus radial distance r . The scale of the vertical axis is set by E s = 13.0 × 10 7 N / C . Approximately, what is the net charge on the shell? Assume r s = 3 c m . Number i Units

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

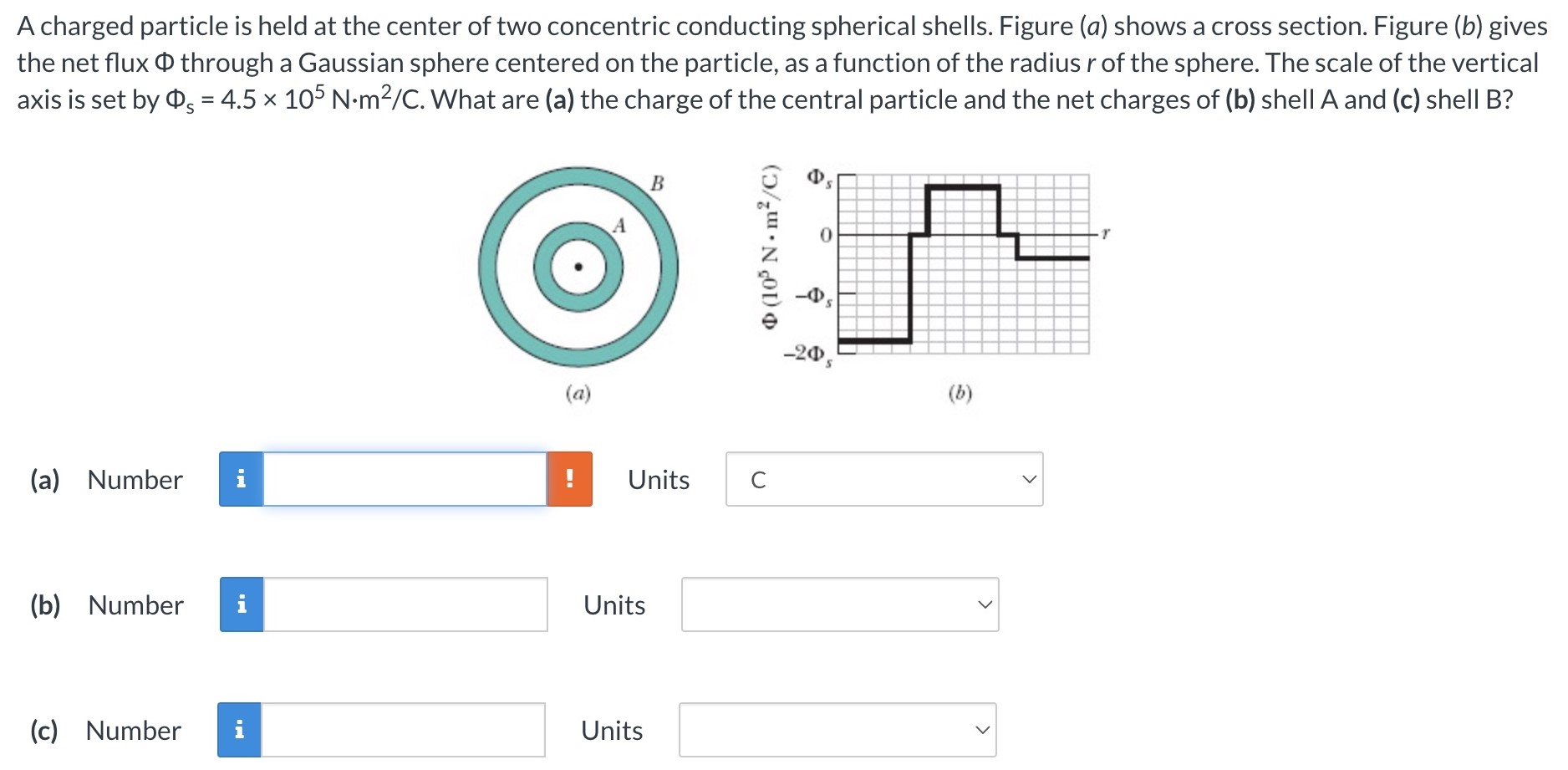

A charged particle is held at the center of two concentric conducting spherical shells. Figure (a) shows a cross section. Figure (b) gives the net flux Φ through a Gaussian sphere centered on the particle, as a function of the radius r of the sphere. The scale of the vertical axis is set by Φs = 4.5×105 N⋅m2/C. What are (a) the charge of the central particle and the net charges of (b) shell A and (c) shell B? (a) (b) (a) Number Units C (b) Number Units (c) Number Units
Solution
0 0

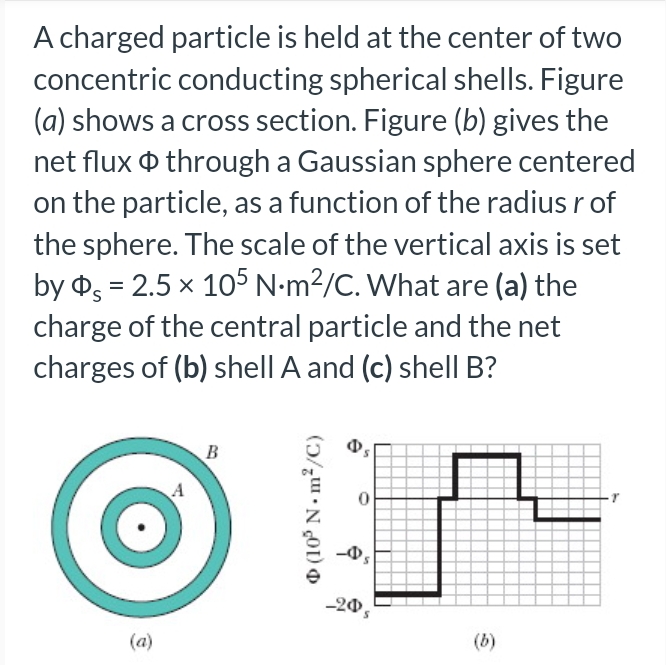

A charged particle is held at the center of two concentric conducting spherical shells. Figure (a) shows a cross section. Figure (b) gives the net flux Φ through a Gaussian sphere centered on the particle, as a function of the radius r of the sphere. The scale of the vertical axis is set by Φs = 2.5×105 N⋅m2/C. What are (a) the charge of the central particle and the net charges of (b) shell A and (c) shell B? (a) (b)
