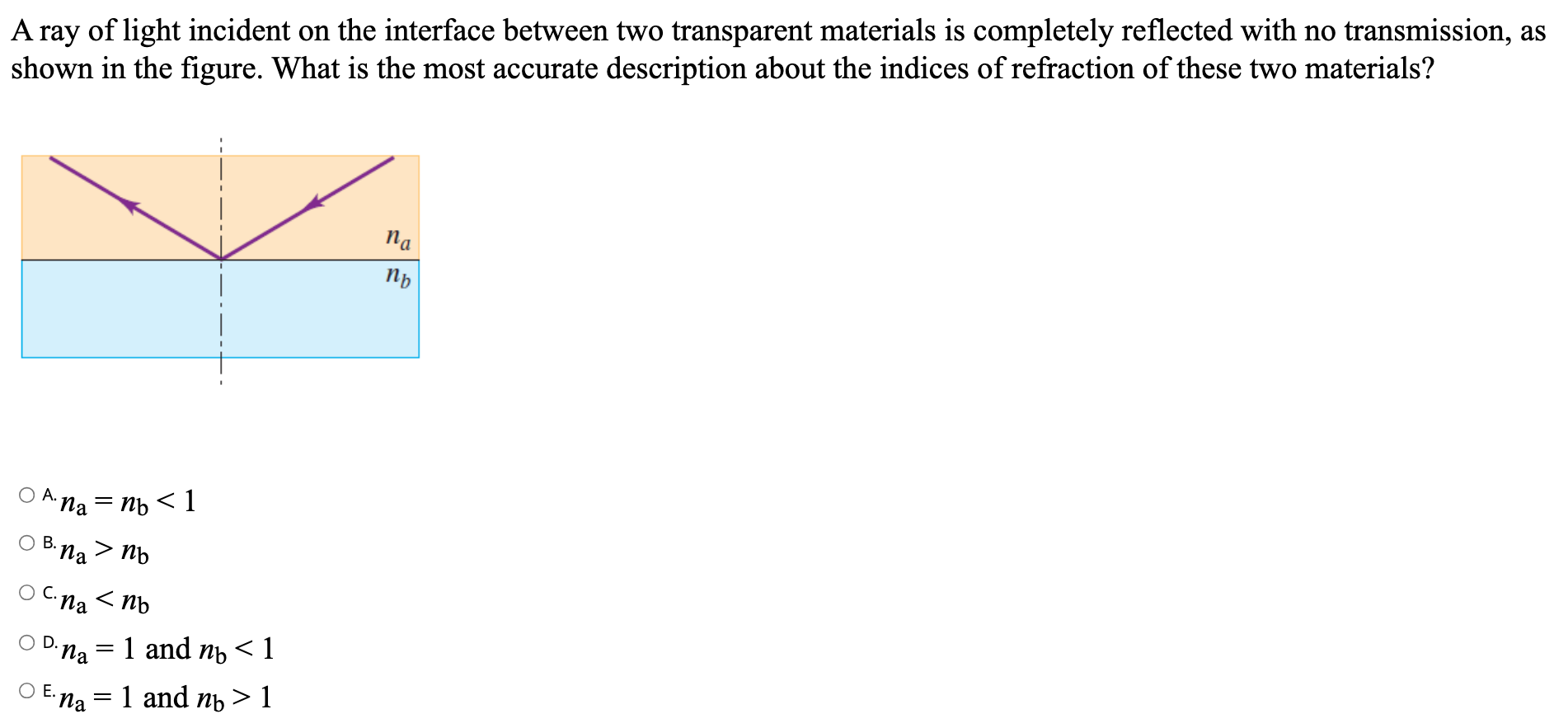

A ray of light incident on the interface between two transparent materials is completely reflected with no transmission, as shown in the figure. What is the most accurate description about the indices of refraction of these two materials? A. na = nb < 1 B. na > nb c. na < nb D. na = 1 and nb < 1 Ena = 1 and nb > 1

A ray of light incident on the interface between two transparent materials is completely reflected with no transmission, as shown in the figure. What is the most accurate description about the indices of refraction of these two materials? A. na = nb < 1 B. na > nb c. na < nb D. na = 1 and nb < 1 Ena = 1 and nb > 1

Image text
A ray of light incident on the interface between two transparent materials is completely reflected with no transmission, as shown in the figure. What is the most accurate description about the indices of refraction of these two materials? A. n a = n b < 1 B. n a > n b c. n a < n b D. n a = 1 and n b < 1 E n a = 1 and n b > 1
