A rectangular loop of side lengths a = 10 cm and b = 30 cm lying in the xy-plane carries a current I = 5 A as shown in the figure. The uniform magnetic field in the medium is given as B = 2x^ + 3z^ a) The force on the loop tries to the loop. b) The torque on the loop is T = along the direction.

A rectangular loop of side lengths a = 10 cm and b = 30 cm lying in the xy-plane carries a current I = 5 A as shown in the figure. The uniform magnetic field in the medium is given as B = 2x^ + 3z^ a) The force on the loop tries to the loop. b) The torque on the loop is T = along the direction.

Image text

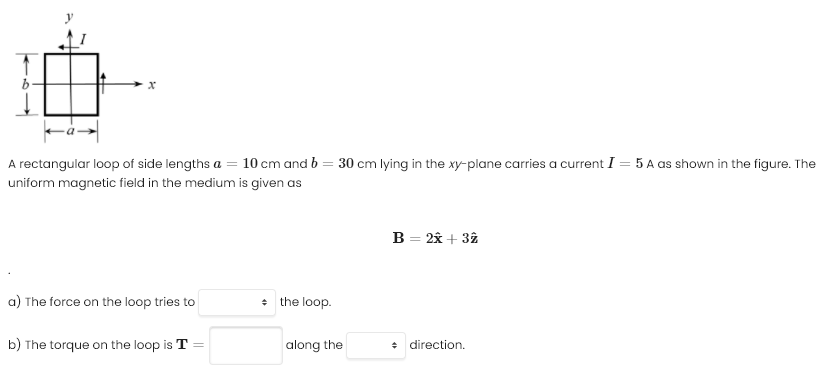

A rectangular loop of side lengths a = 10 c m and b = 30 c m lying in the x y -plane carries a current I = 5 A as shown in the figure. The uniform magnetic field in the medium is given as
B = 2 x ^ + 3 z ^
a) The force on the loop tries to ◻ the loop. b) The torque on the loop is T = ◻ along the ◻ direction.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Q1. The volume charge density of a spherical shell with inner radius a and outer radius b is given as ρv = ρ0/R as shown in Figure 1. Determine E in all regions. (ρ0 is a positive constant) Figure 1 Q2. An infinitely long solid conductor of radius a is placed along the z-axis. The conductor carries a current I in the +z direction. a) Find the magnetic field expression within the conductor. b) Derive the expression for the corresponding current density. Q3. A square loop carrying a current I1 = 4 A is bisected by a very long straight conductor which carries a current I2 = 15 A as shown in Figure 2. If a = 1 m, find the net force acting on the loop.

Solution
0 0

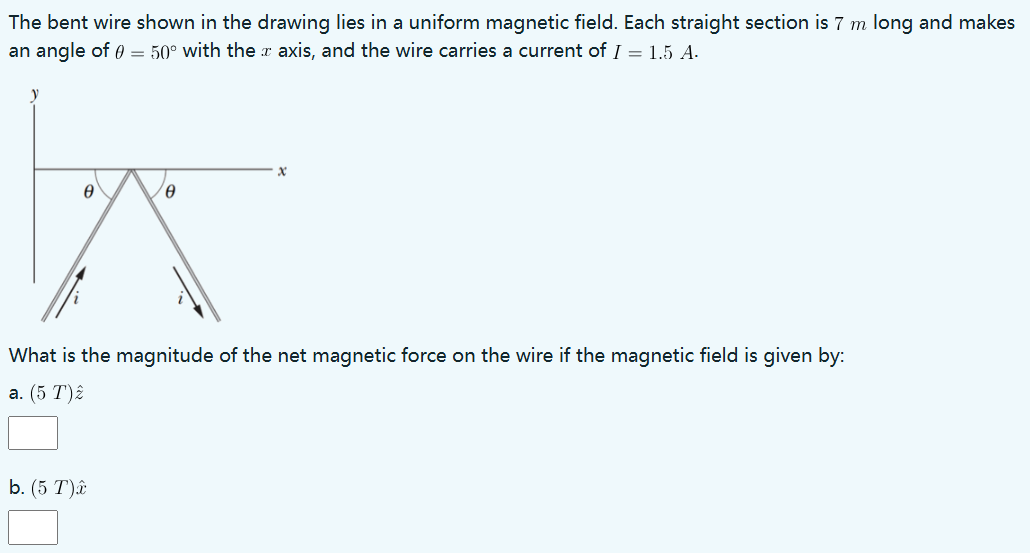

The bent wire shown in the drawing lies in a uniform magnetic field. Each straight section is 7 m long and makes an angle of θ = 50∘ with the x axis, and the wire carries a current of I = 1.5 A. What is the magnitude of the net magnetic force on the wire if the magnetic field is given by: a. (5 T)z^ b. (5 T)x^
