A uniform rod of length 0.81 m and mass 0.91 kg is supported horizontally by a collar that is attached to a vertical wall, as shown. A second uniform rod of length 0.27 m and mass 0.23 kg is attached to the first, with the far ends of the rods aligned as shown. What is the magnitude of the total torque, in newton meters, exerted on the longer rod due to the force of gravity? Assume that the axis extends perpendicularly out of the page and is located at the collar, which has negligible length. |Στg| = N⋅m

A uniform rod of length 0.81 m and mass 0.91 kg is supported horizontally by a collar that is attached to a vertical wall, as shown. A second uniform rod of length 0.27 m and mass 0.23 kg is attached to the first, with the far ends of the rods aligned as shown. What is the magnitude of the total torque, in newton meters, exerted on the longer rod due to the force of gravity? Assume that the axis extends perpendicularly out of the page and is located at the collar, which has negligible length. |Στg| = N⋅m

Image text

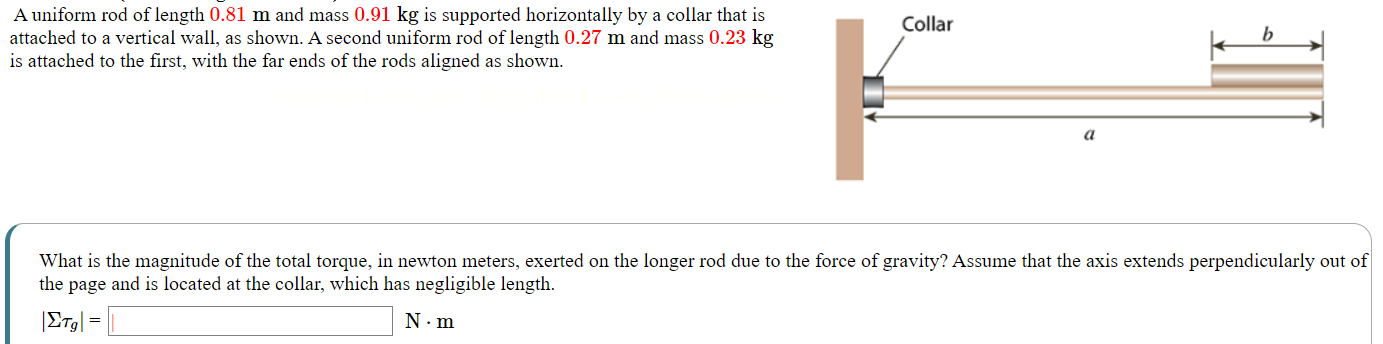

A uniform rod of length 0.81 m and mass 0.91 kg is supported horizontally by a collar that is attached to a vertical wall, as shown. A second uniform rod of length 0.27 m and mass 0.23 kg is attached to the first, with the far ends of the rods aligned as shown.
What is the magnitude of the total torque, in newton meters, exerted on the longer rod due to the force of gravity? Assume that the axis extends perpendicularly out of the page and is located at the collar, which has negligible length.
| Σ τ g | = ◻ N ⋅ m

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

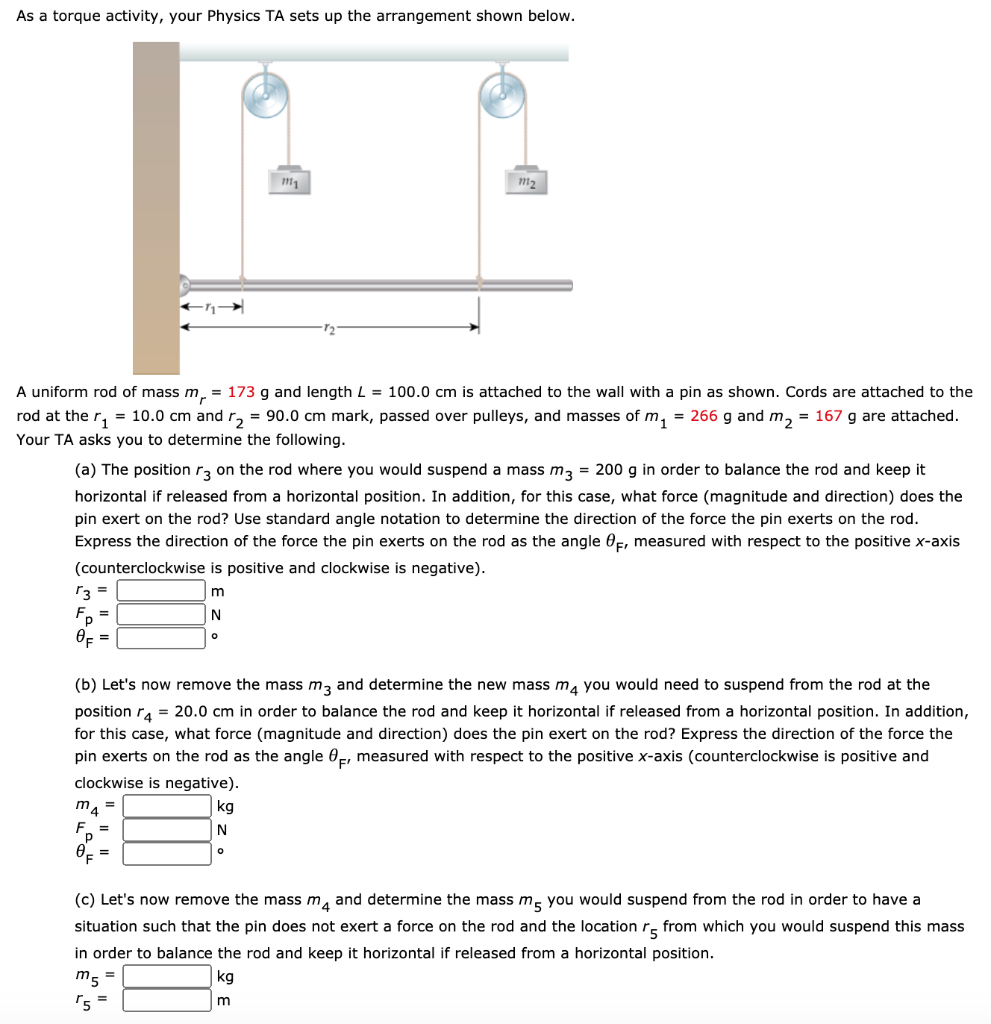

As a torque activity, your Physics TA sets up the arrangement shown below. A uniform rod of mass mr = 173 g and length L = 100.0 cm is attached to the wall with a pin as shown. Cords are attached to the rod at the r1 = 10.0 cm and r2 = 90.0 cm mark, passed over pulleys, and masses of m1 = 266 g and m2 = 167 g are attached. Your TA asks you to determine the following. (a) The position r3 on the rod where you would suspend a mass m3 = 200 g in order to balance the rod and keep it horizontal if released from a horizontal position. In addition, for this case, what force (magnitude and direction) does the pin exert on the rod? Use standard angle notation to determine the direction of the force the pin exerts on the rod. Express the direction of the force the pin exerts on the rod as the angle θF, measured with respect to the positive x-axis (counterclockwise is positive and clockwise is negative). r3 = m Fp = N θF = (b) Let's now remove the mass m3 and determine the new mass m4 you would need to suspend from the rod at the position r4 = 20.0 cm in order to balance the rod and keep it horizontal if released from a horizontal position. In addition, for this case, what force (magnitude and direction) does the pin exert on the rod? Express the direction of the force the pin exerts on the rod as the angle θF, measured with respect to the positive x-axis (counterclockwise is positive and clockwise is negative). m4 = kg Fp = N θF = (c) Let's now remove the mass m4 and determine the mass m5 you would suspend from the rod in order to have a situation such that the pin does not exert a force on the rod and the location r5 from which you would suspend this mass in order to balance the rod and keep it horizontal if released from a horizontal position. m5 = kg r5 = m
