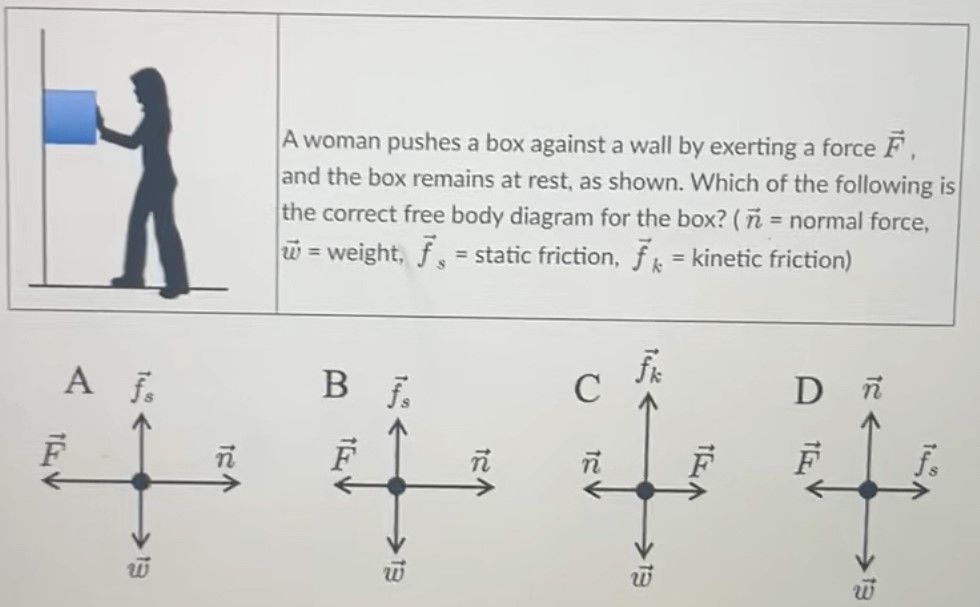

A woman pushes a box against a wall by exerting a force F→, and the box remains at rest, as shown. Which of the following is the correct free body diagram for the box? (n→ = normal force, w→ = weight, f→s = static friction, f→k = kinetic friction)
