An alternating source drives a series RLC circuit with an emf amplitude of 6.00 V, at a phase angle of +32.4∘. When the potential difference across the capacitor reaches its maximum positive value of +5.22 V, what is the potential difference across the inductor (sign included)? Number Units

An alternating source drives a series RLC circuit with an emf amplitude of 6.00 V, at a phase angle of +32.4∘. When the potential difference across the capacitor reaches its maximum positive value of +5.22 V, what is the potential difference across the inductor (sign included)? Number Units

Image text

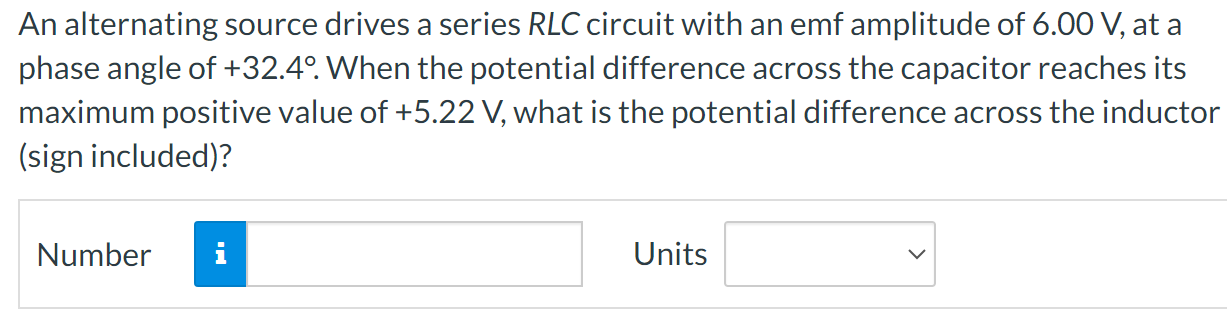

An alternating source drives a series R L C circuit with an emf amplitude of 6.00 V , at a phase angle of + 32.4 ∘ . When the potential difference across the capacitor reaches its maximum positive value of +5.22 V , what is the potential difference across the inductor (sign included)?
Number i ◻ Units ◻

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

An AC source operating at 57 Hz with a maximum voltage of 170 V is connected in series with a resistor (R = 1.2 kΩ) and an inductor (L = 2.1 H). (a) What is the maximum value of the current in the circuit? A (b) What are the maximum values of the potential difference across the resistor and the inductor? ΔVR,max = V ΔVL,max = V (c) When the current is at a maximum, what are the magnitudes of the potential differences across the resistor, the inductor, and the AC source? ΔvR = V ΔvL = V Δvsource = V (d) When the current is zero, what are the magnitudes of the potential difference across the resistor, the inductor, and the AC source? ΔvR = V ΔvL = V Δvsource = V
Solution
0 0

When an initially uncharged capacitor is charged in an RC circuit, what happens to the potential difference across the resistor? It is initially 0 and then increases exponentially with time. It is initially 0 and then increases linearly with time. It is constant during the charging. It is initially at its maximum value and then decreases exponentially with time. It is initially at its maximum value and then decreases linearly with time.
Solution
0 0

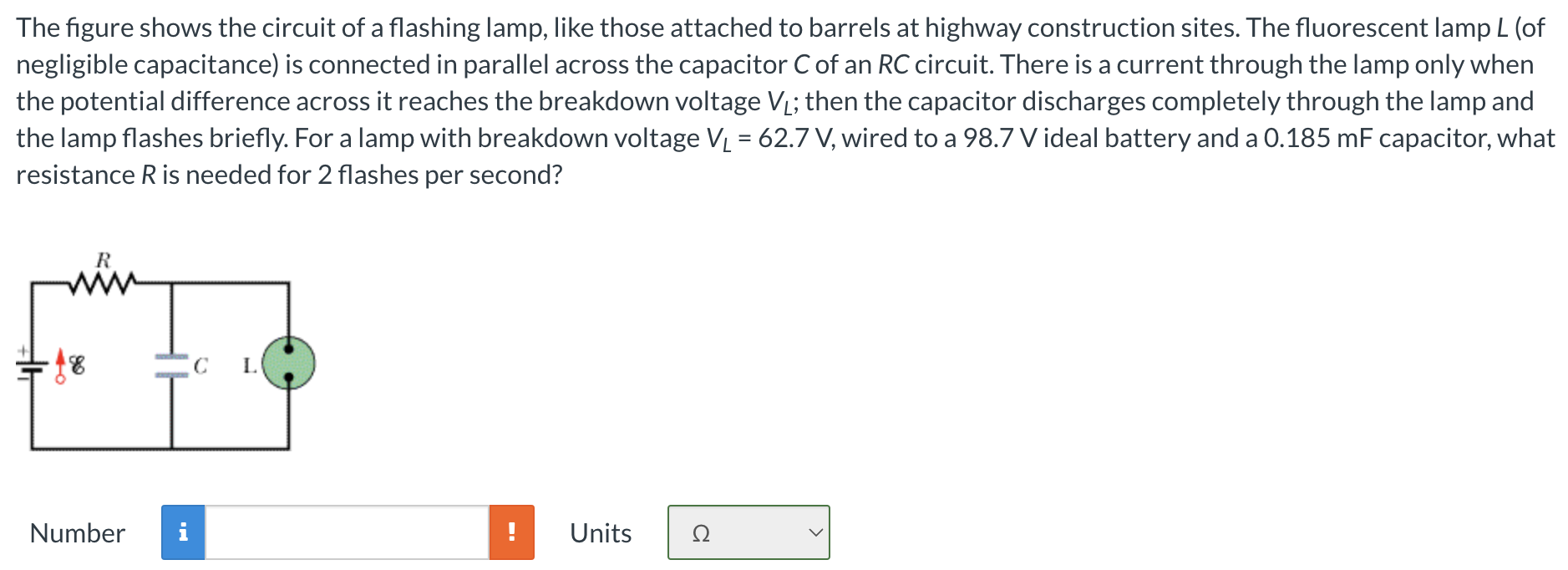

The figure shows the circuit of a flashing lamp, like those attached to barrels at highway construction sites. The fluorescent lamp L (of negligible capacitance) is connected in parallel across the capacitor C of an RC circuit. There is a current through the lamp only when the potential difference across it reaches the breakdown voltage VL; then the capacitor discharges completely through the lamp and the lamp flashes briefly. For a lamp with breakdown voltage VL = 62.7 V, wired to a 98.7 V ideal battery and a 0.185 mF capacitor, what resistance R is needed for 2 flashes per second? Number Units
