An RLC circuit such as that in Figure (a), has R = 5.01 Ω, C = 20.4 μF

Question

Notify Me Bookmark

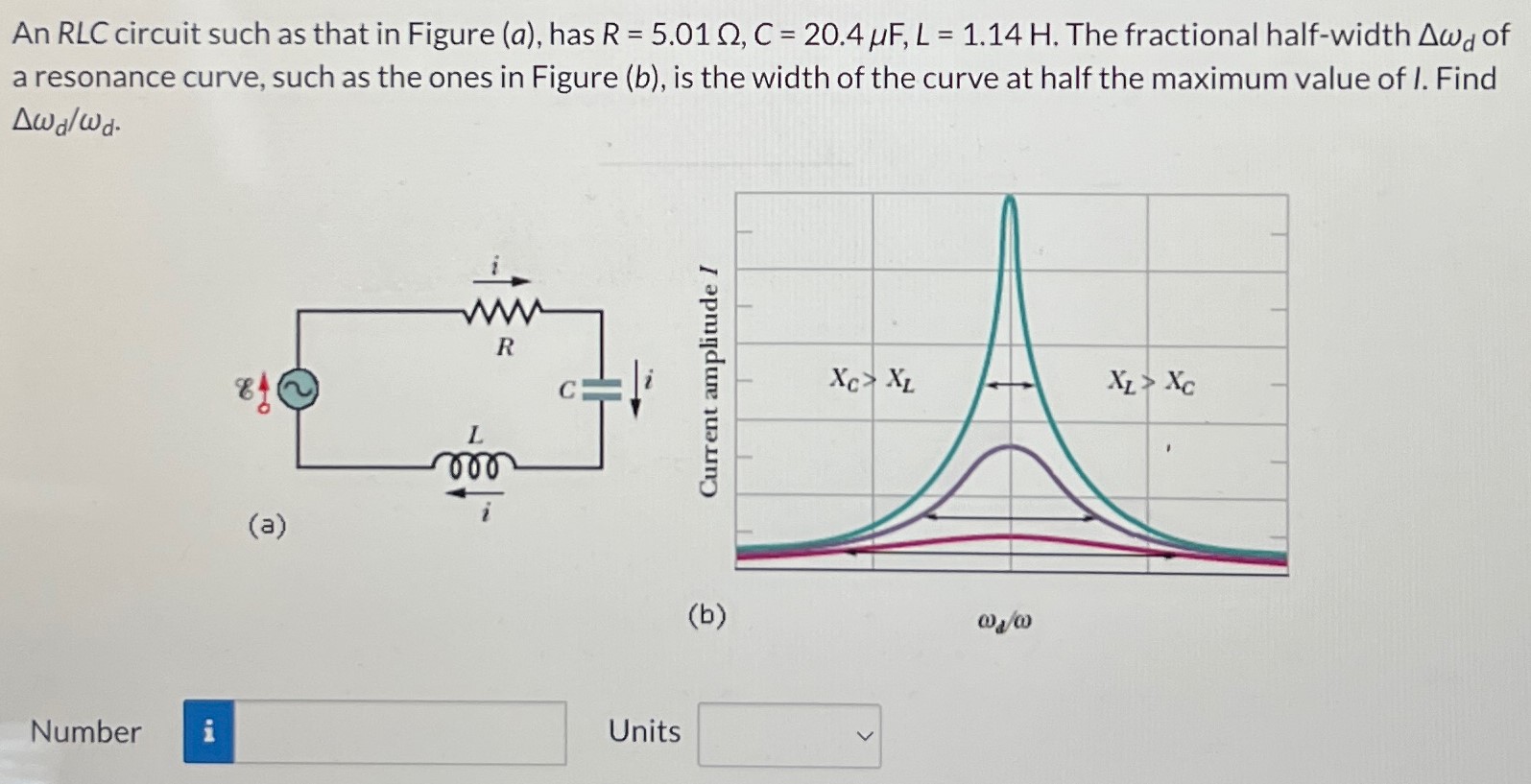

An RLC circuit such as that in Figure (a), has R = 5.01 Ω, C = 20.4 μF, L = 1.14 H. The fractional half-width Δωd of a resonance curve, such as the ones in Figure (b), is the width of the curve at half the maximum value of I. Find Δωd/ωd Number Units

$An RLC circuit such as that in Figure (a), has R = 5.01 Ω, C = 20.4 μF, L = 1.14 H. The fractional half-width Δωd of a resonance curve, such as the ones in Figure (b), is the width of the curve at half the maximum value of I. Find Δωd/ωd Number Units$

Image text

An

R L C

circuit such as that in Figure (a), has

R = 5.01 Ω, C = 20.4 μ F, L = 1.14 H

. The fractional half-width

Δ ω_{d}

of a resonance curve, such as the ones in Figure (b), is the width of the curve at half the maximum value of

I

. Find

Δ ω_{d} / ω_{d}

Number Units

Detailed Answer
