At its highest temperature, a space heater has a resistance of 49.5 Ω when it is plugged into a wall outlet that supplies a peak voltage of 169.7 V sinusoidally at 60 Hz. What is the average power output P¯ of the space heater? P¯ = W

At its highest temperature, a space heater has a resistance of 49.5 Ω when it is plugged into a wall outlet that supplies a peak voltage of 169.7 V sinusoidally at 60 Hz. What is the average power output P¯ of the space heater? P¯ = W

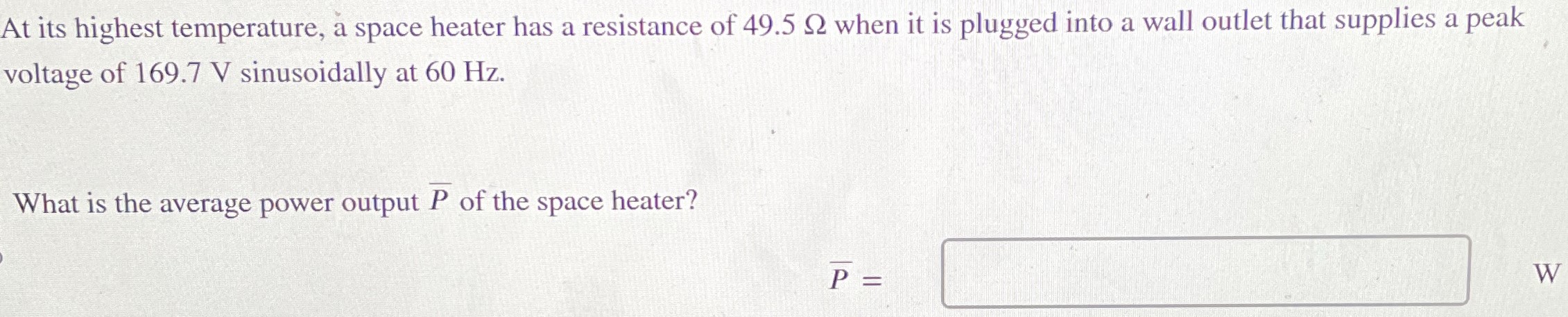

Image text
At its highest temperature, a space heater has a resistance of 49.5 Ω when it is plugged into a wall outlet that supplies a peak voltage of 169.7 V sinusoidally at 60 Hz .
What is the average power output P ¯ of the space heater?
P ¯ =
◻ W
