Block A is sliding down inclined side of the wedge B, as shown in the figure. The wedge has acceleration aB = 5 [m/s2] and the relative acceleration of block A with respect to wedge is aA∣B = 3 [m/s2] as shown in figure below. The inclination angle of the wedge is α = 35∘. Q7: Determine the magnitude of acceleration of block A, aA [m/s2]. Q8: Determine direction of acceleration of block A, β [deg].

Block A is sliding down inclined side of the wedge B, as shown in the figure. The wedge has acceleration aB = 5 [m/s2] and the relative acceleration of block A with respect to wedge is aA∣B = 3 [m/s2] as shown in figure below. The inclination angle of the wedge is α = 35∘. Q7: Determine the magnitude of acceleration of block A, aA [m/s2]. Q8: Determine direction of acceleration of block A, β [deg].

Image text
Block A is sliding down inclined side of the wedge B , as shown in the figure. The wedge has acceleration a B = 5 [ m / s 2 ] and the relative acceleration of block A with respect to wedge is a A ∣ B = 3 [ m / s 2 ] as shown in figure below. The inclination angle of the wedge is α = 35 ∘ .
Q7: Determine the magnitude of acceleration of block A , a A [ m / s 2 ] . Q8: Determine direction of acceleration of block A, β [deg].

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

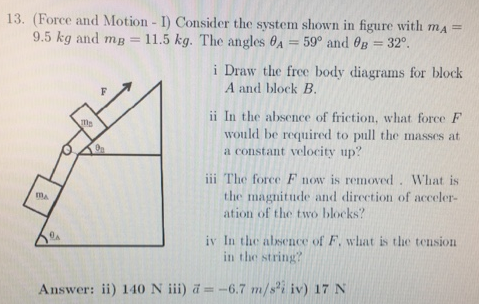

(Force and Motion - I) Consider the system shown in figure with mA = 9.5 kg and mB = 11.5 kg. The angles θA = 59∘ and θB = 32∘. i Draw the free body diagrams for block A and block B. ii In the absence of friction, what force F would be required to pull the masses at a constant velocity up? iii The force F now is removed. What is the magnitude and direction of acceleration of the two blocks? iv In the absence of F, what is the tension in the string? Answer: ii) 140 N iii) a→ = −6.7 m/s2 i^ iv) 17 N
Solution
0 0

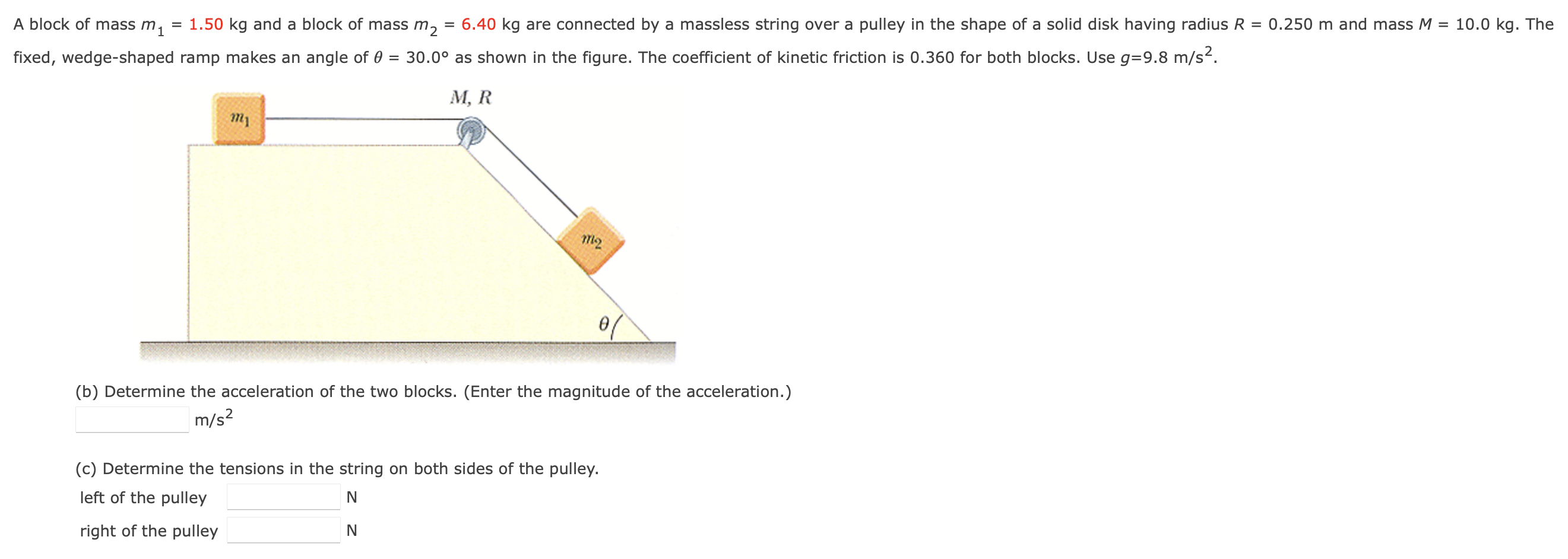

A block of mass m1 = 1.50 kg and a block of mass m2 = 6.40 kg are connected by a massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and mass M = 10.0 kg. The fixed, wedge-shaped ramp makes an angle of θ = 30.0∘ as shown in the figure. The coefficient of kinetic friction is 0.360 for both blocks. Use g = 9.8 m/s2. (b) Determine the acceleration of the two blocks. (Enter the magnitude of the acceleration.) m/s2 (c) Determine the tensions in the string on both sides of the pulley. left of the pulley N right of the pulley N
